NOTE
The SOPAS-ET configuration software can be used to configure the oscillation perform‐
ance and the position of the oscillating mirror.
3.2.3.5 Reading operation mode
In “start/stop” operation, there is only ever one object in the reading field during the
reading process, i.e., all read codes can be clearly assigned to the object. As standard,
starting and stopping of the reading process are controlled by one or two read cycle
sensor(s) at the start and end of the reading field.
In this case, the distance between the read cycle sensors determines the size of the
reading field. The reading process can alternatively be controlled with command strings
via the data interface.
The output of the read results is either carried out at the end of the read cycle (the rear
edge of the object has left the end of the reading field) or even during the read cycle if
certain configurable conditions are met.
Data
output
Trigger 2:
Stop
Trigger 1:
Start
Reading field
Start/stop operation

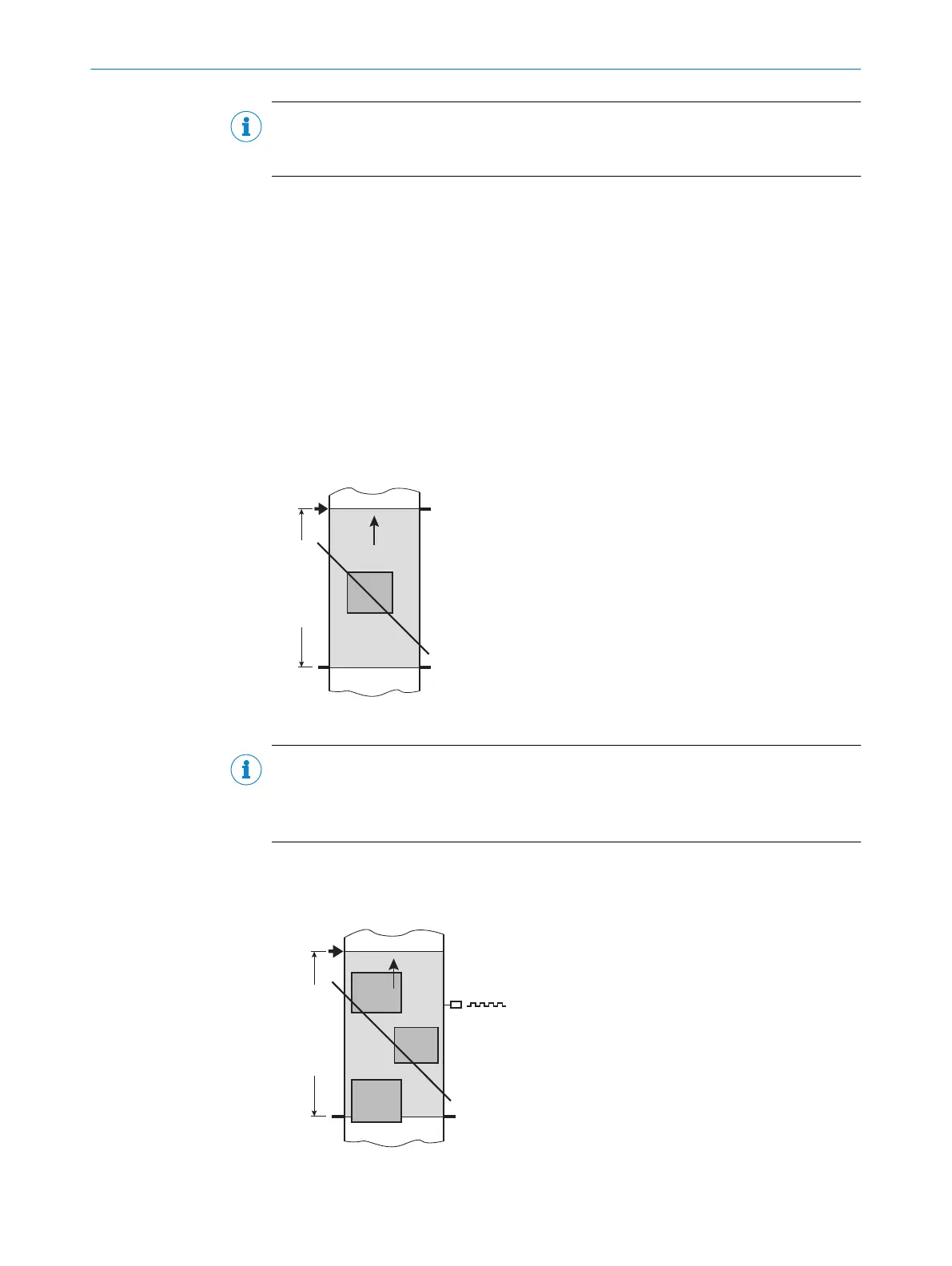

Figure 11: Start/stop operating mode of the device in stand-alone operation
NOTE
The SOPAS-ET configuration software can be used to configure the reading operation
mode.
Alternatively, configuration can be done via GSD file (Ethernet version/PROFINET).
3.2.3.6 Tracking operation (CLV65x only)
Tracking operation
Trigger 1:
Start
Reading field
Data
output
Figure 12: Tracking operating mode of the device in stand-alone operation
PRODUCT DESCRIPTION 3
8019588/2017-01-20 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV63x, CLV64x, CLV65x
21
Subject to change without notice
