5.3.2 Mounting device
The device is mounted on the bracket using two M5 blind hole threads that are in pairs
on both of the narrow sides of the device, see "Dimensional drawings", page 77.
Three plastic insulation panes are to be used across from the bracket for heat insula‐
tion in devices with heating. These are included with the mounting brackets (SICK
accessories).
The device can be mounted using SICK brackets (see accessories in the “Identification
solutions” product catalog) or customer-specific brackets.
The design of the mounting bracket (SICK accessory) can support a variety of mounting
variants and the alignment of the device.

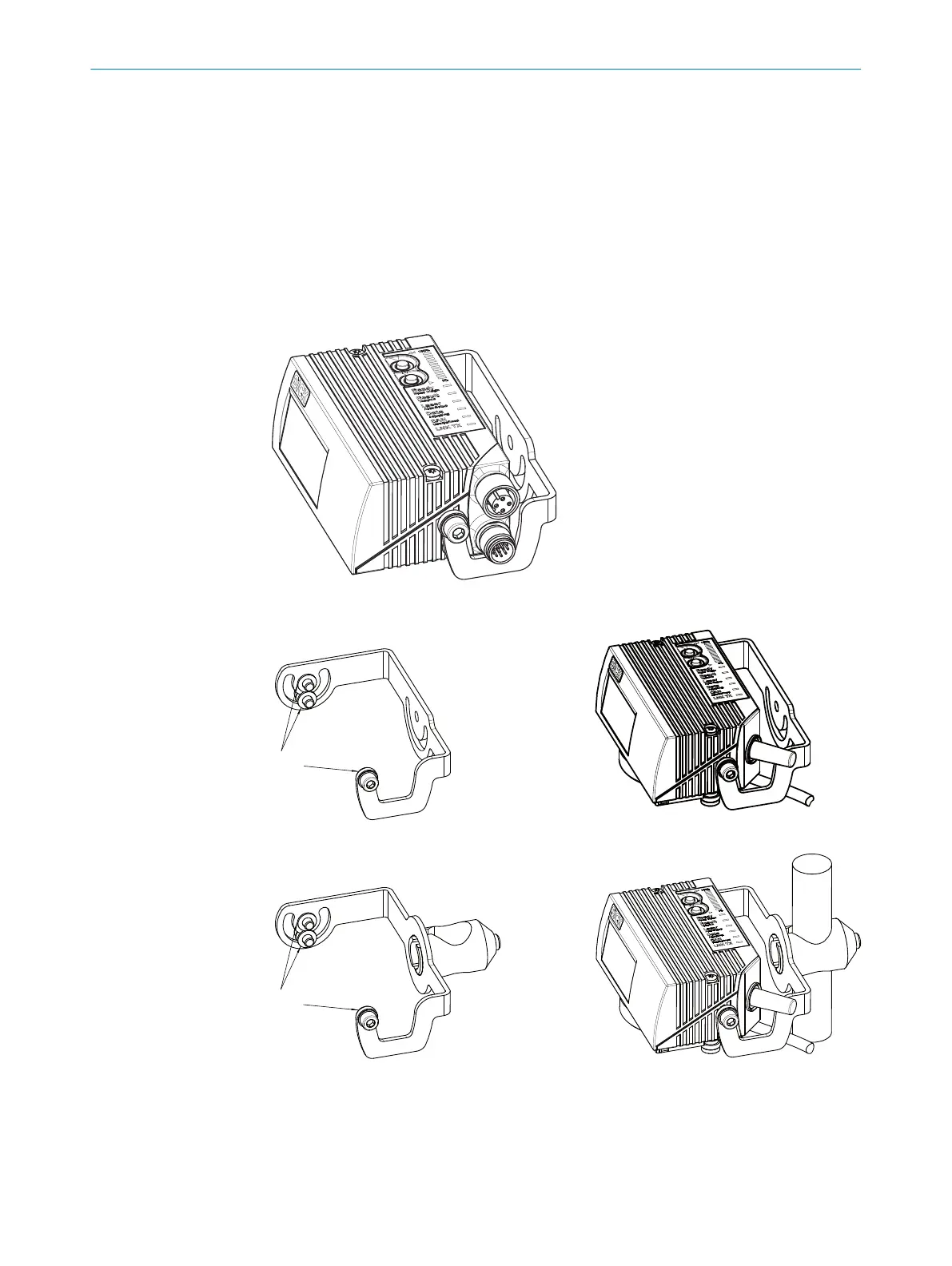

Figure 13: Example of mounting a device with bow-shaped mounting bracket (SICK accessory)
Figure 14: Example mountings of a device with external heating using bow-shaped mounting
brackets (SICK accessories)
1
Plastic insulation panes
User-supplied brackets
The brackets should meet the following requirements:
MOUNTING 5
