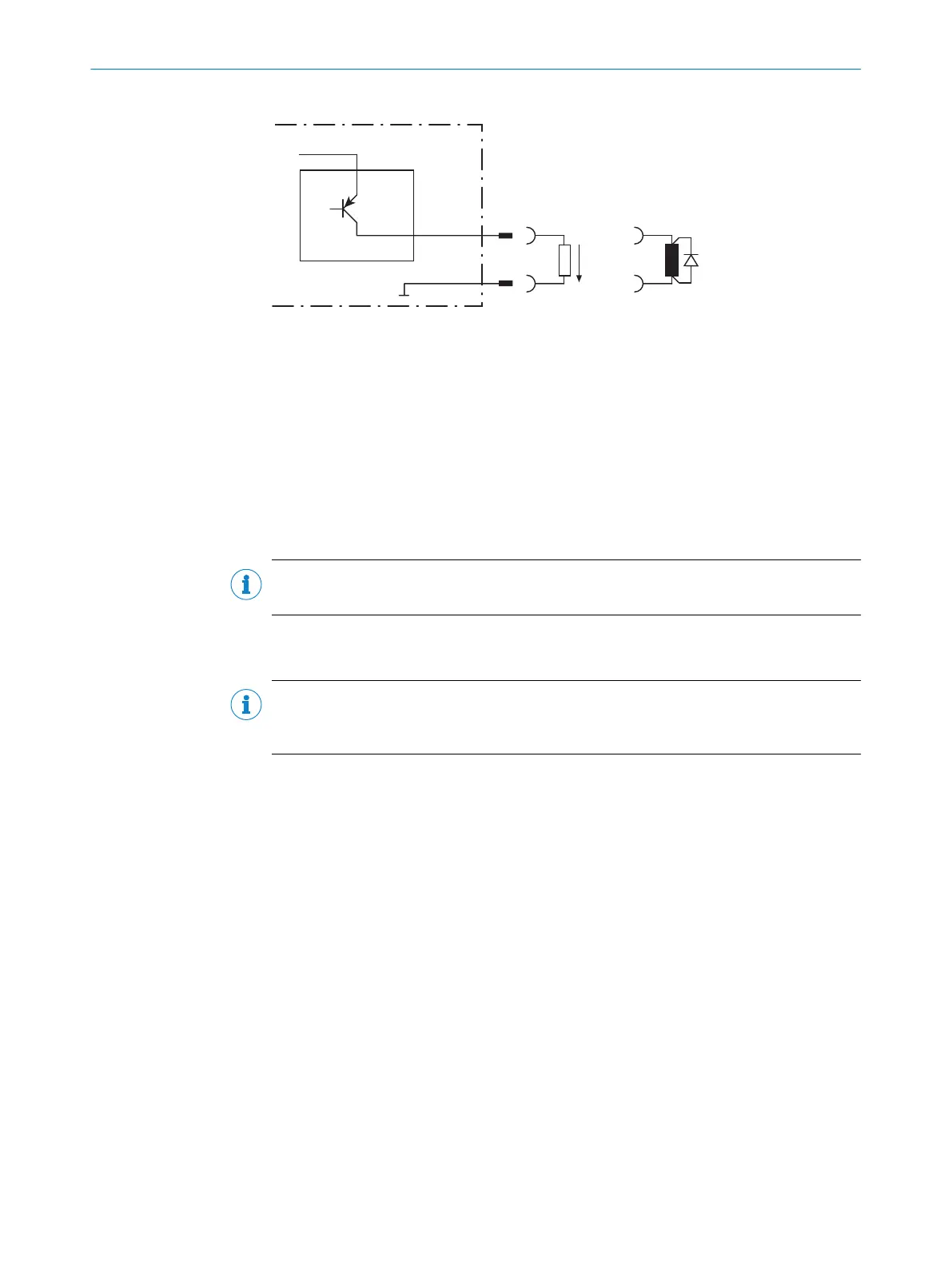

Figure 37: Wiring of a switching output
1
Signal line (e.g. “Result 1”)
2
GND
3
In the case of inductive load: discharge wiring – apply free running diodes directly to the
load!
Extension: additional logical switching outputs in the device in the case of physical
“external” switching outputs on the optional connection module
Thanks to the optional CMC600 parameter memory module, the two additional switch‐
ing outputs “External output 1” and “External output 2” on the terminals in the connec‐
tion module are additionally available.
NOTE
These two external switching outputs are not suitable for time-critical applications.
If the wiring of the outputs is carried out via a connection module, then the relevant
operating instructions for the module must be followed.
NOTE
Capacitive loads on the switching outputs have an effect on the switch-on and switch-
off behavior. The maximum capacity of 100 nF is a limit value.
1. Connecting the switching outputs according to the application
2. For the thorough check of the switching functions, use a high resistance digital
voltmeter and wire the switching outputs with a load.
This avoids the display of incorrect voltage values/output states.
ELECTRICAL INSTALLATION 6
8019588/2017-01-20 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV63x, CLV64x, CLV65x
47
Subject to change without notice
