SICK CLV69x User Manual

1800
1900
2000
2100
2200
1700
1600
1500
500 700 900 1100 1300 1500 1700 1900 2100
1400
1300
1200
1100
1000
900
800
700
600
500
400
Radial reading distance (mm)
Focus position (mm)
Resolution: 0.35mm
Aperture angle: 50°
Minimum
reading distance
Standard Density: line scanner with oscillating mirror CLV690-1xxx
Maximum
reading distance

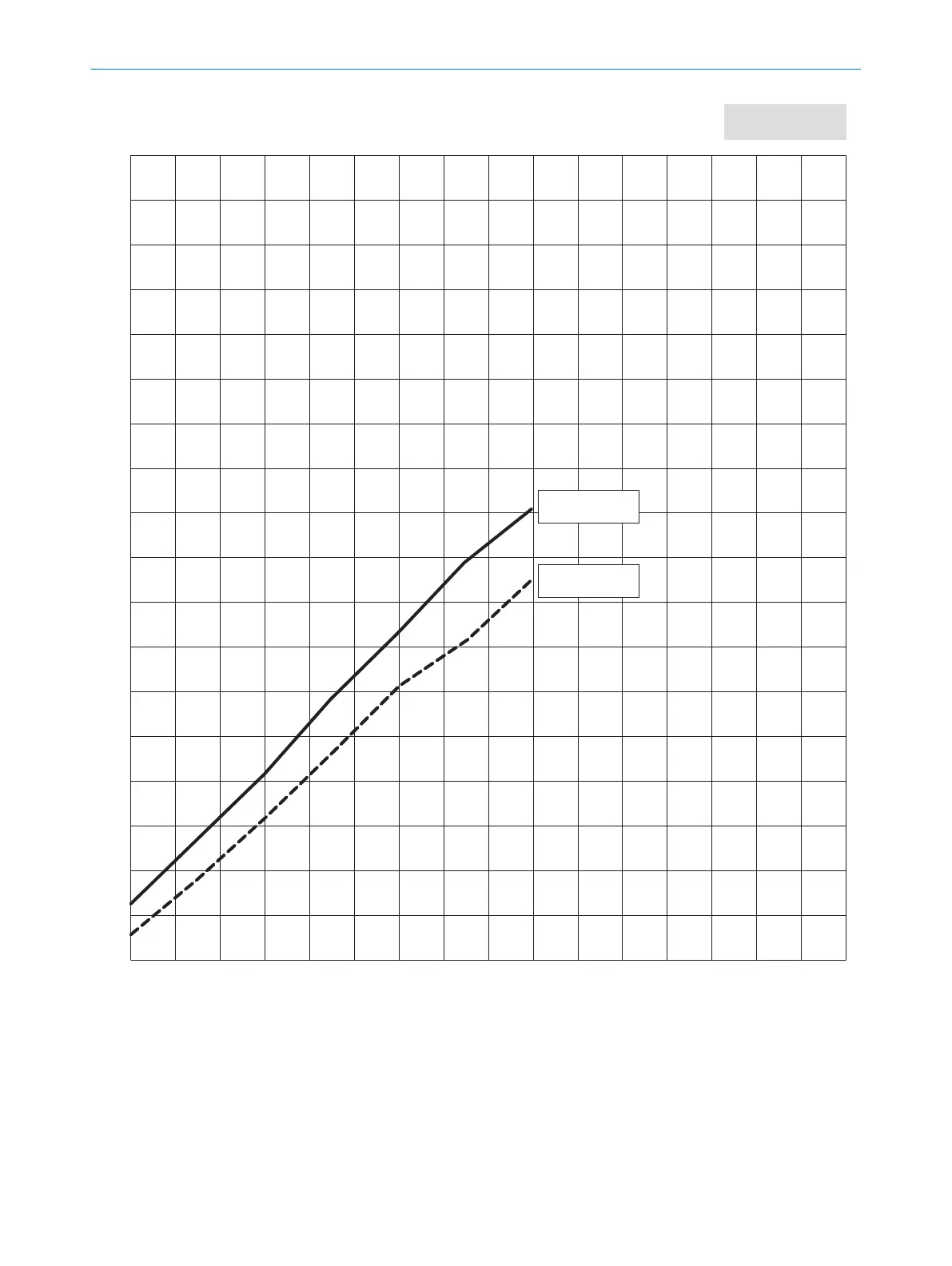

Figure 90: CLV690-1xxx (Standard Density): min. and max. radial reading distance depending on focus position with resolution
0.35 mm and aperture angle α = 50°
TECHNICAL DATA
12
8014396/ZMG8/2017-07-04 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV69x
107
Subject to change without notice
