NOTE
Not all combinations are possible according to the type code. The available device var‐
iants can be found online at:
•
www.sick.com/CLV69x
3.2 Product characteristics
3.2.1 Device view
9
8
3
ß
9
2
ß
Line scanner Line scanner with oscillating mirror
à
à
4
4
5
5
3
1
7
2
7 8
6
6
â
á
0
á
á
[B] CAN 1
HOST/AUX/I/OEthernet

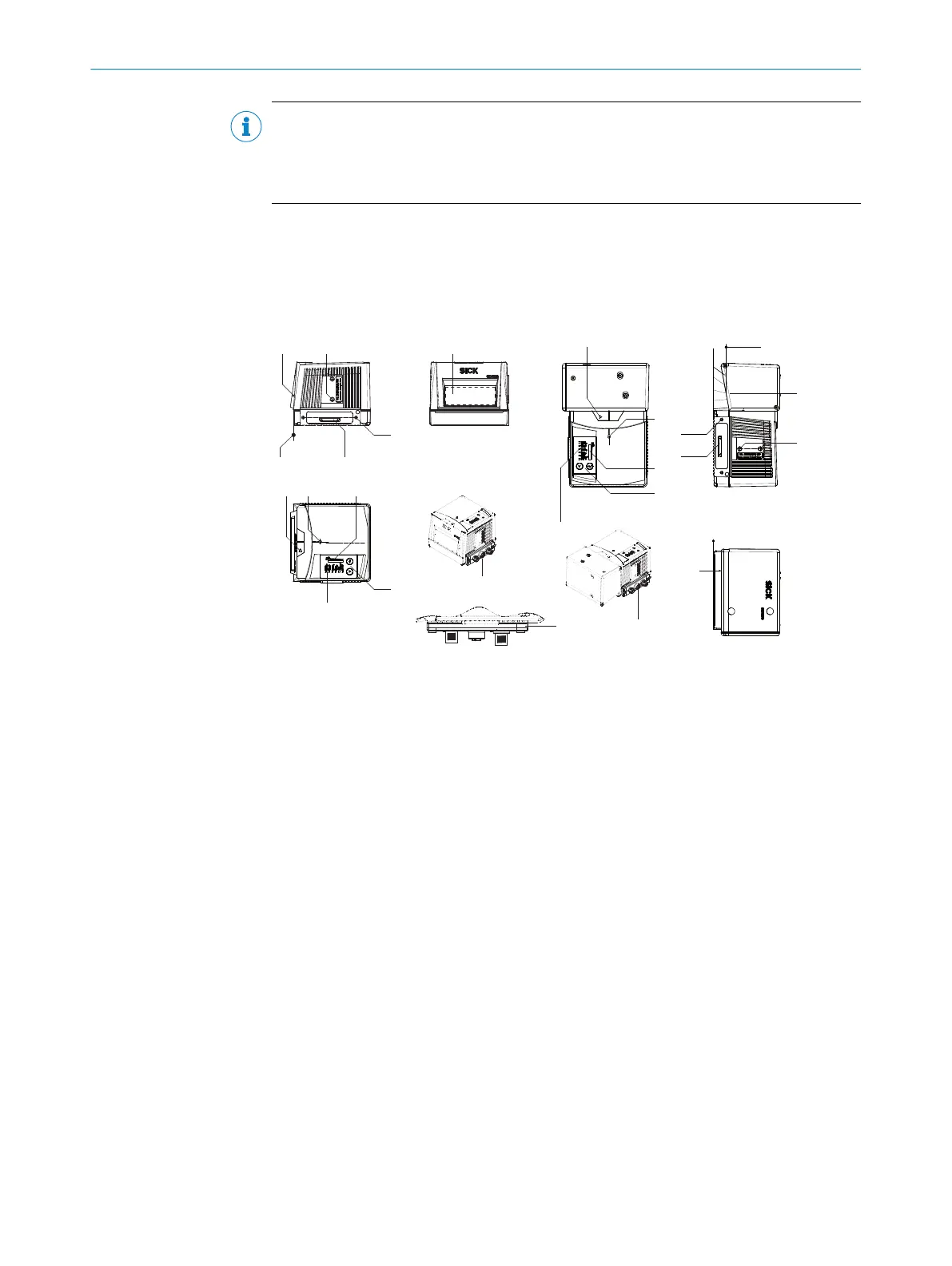

Figure 4: Line scanner and line scanner with oscillating mirror
1
Mark for light emission level
2
Threaded mounting holes M6, 7 mm deep (2 x), for mounting the CLV69x
3
Threaded mounting holes M4, 10 mm deep (2 x), for mounting the cloning plug
4
60-pin male connector for connecting a cloning plug
5
Reference point for reading distance (housing edge) from CLV69x to object
6
Reading window
7
Mark for the direction of rotation of the mirror wheel and counting direction of the read
diagnostics date RA (Reading Angle)
8
Internal impact point: rotation point of the variable direction light beam
9
Bar graph
ß
Function button (2 x)
à
LED status display (6 x)
á
Monitored cloning plug
â
Vertical to the device longitudinal axis for oscillating mirror
PRODUCT DESCRIPTION 3
8014396/ZMG8/2017-07-04 | SICK O P E R A T I N G I N S T R U C T I O N S | CLV69x
