3 Product description
3.1 Product ID
3.1.1 Type label

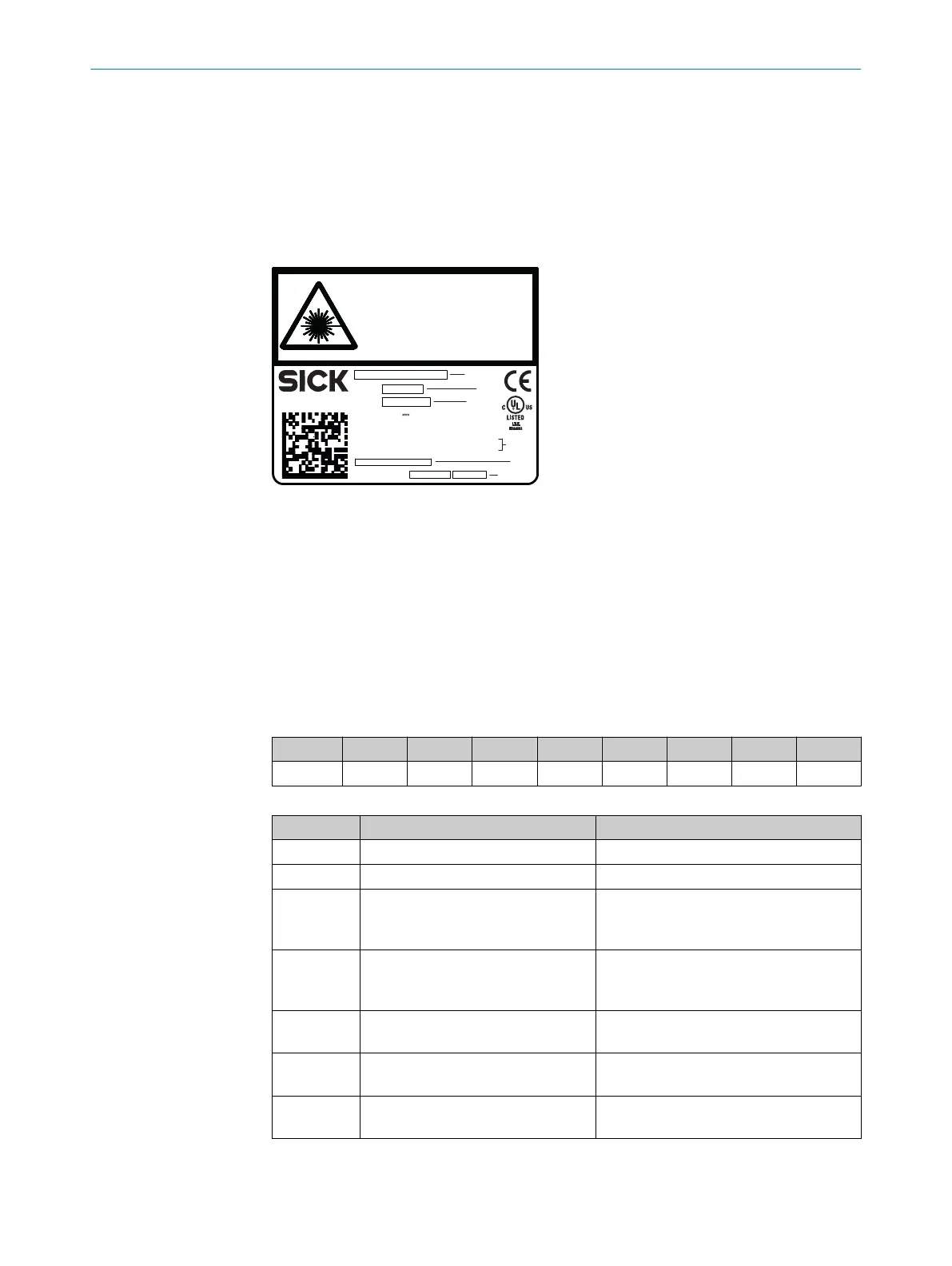

The type label gives information for identification of the device. An existing UL certifica‐
tion can be found on the type label.
1443 0297
S/N:
DC 10...30V 5.0W
1
2
3
4
5
6
Manufactured:
MAC
D-79276 Reute
Made in Germany
λ = 655nm
Pmax=1.5mW
P<1.0mW average
Pulse duration <300µs
Imax=700mA
P/N: 1068608
Figure 3: Type label design for the device
1
Type designation
2
Part number
3
Serial number
4
Laser output data
5
MAC address
6
Date of manufacture
3.1.2 Type code
CLV x y z - a b c d
1 2 3 4 5 6 7 8
Table 2: Type code
Position Description Characteristic
1 Code reader V-principle
2 – 3 Product family 69: CLV69x
4 Resolution 0: Standard density
1: Low density
2: High density
5 Scanning method, reading window
orientation
1)
0: Line scanner, reading window on front
1: Line scanner with oscillating mirror,
reading window on side
6 Electrical connection 0: 60-pin system connection
2)
9: Special connection
7 Front screen material 0: Glass
1: Plastic
8 Application (ambient temperature) 0: 0 °C ... +40 °C (without heating)
1: –35 °C ... +35 °C (integrated heating)
1)
Refers to the longitudinal axis of the device.
2)
For available interfaces, see respective cloning plug (accessories)
3 PRODUCT DESCRIPTION
12
O P E R A T I N G I N S T R U C T I O N S | CLV69x 8014396/ZMG8/2017-07-04 | SICK
Subject to change without notice
