SICK CLV69x User Manual

400 600 800 1000 1200 1400 1600
1300
1200
1100
1000
900
800
700
600
High Density: line scanner CLV692-0xxxScanning frequency (Hz)
Radial reading distance (mm)
Resolution:
0.20mm
0.25mm
0.30mm

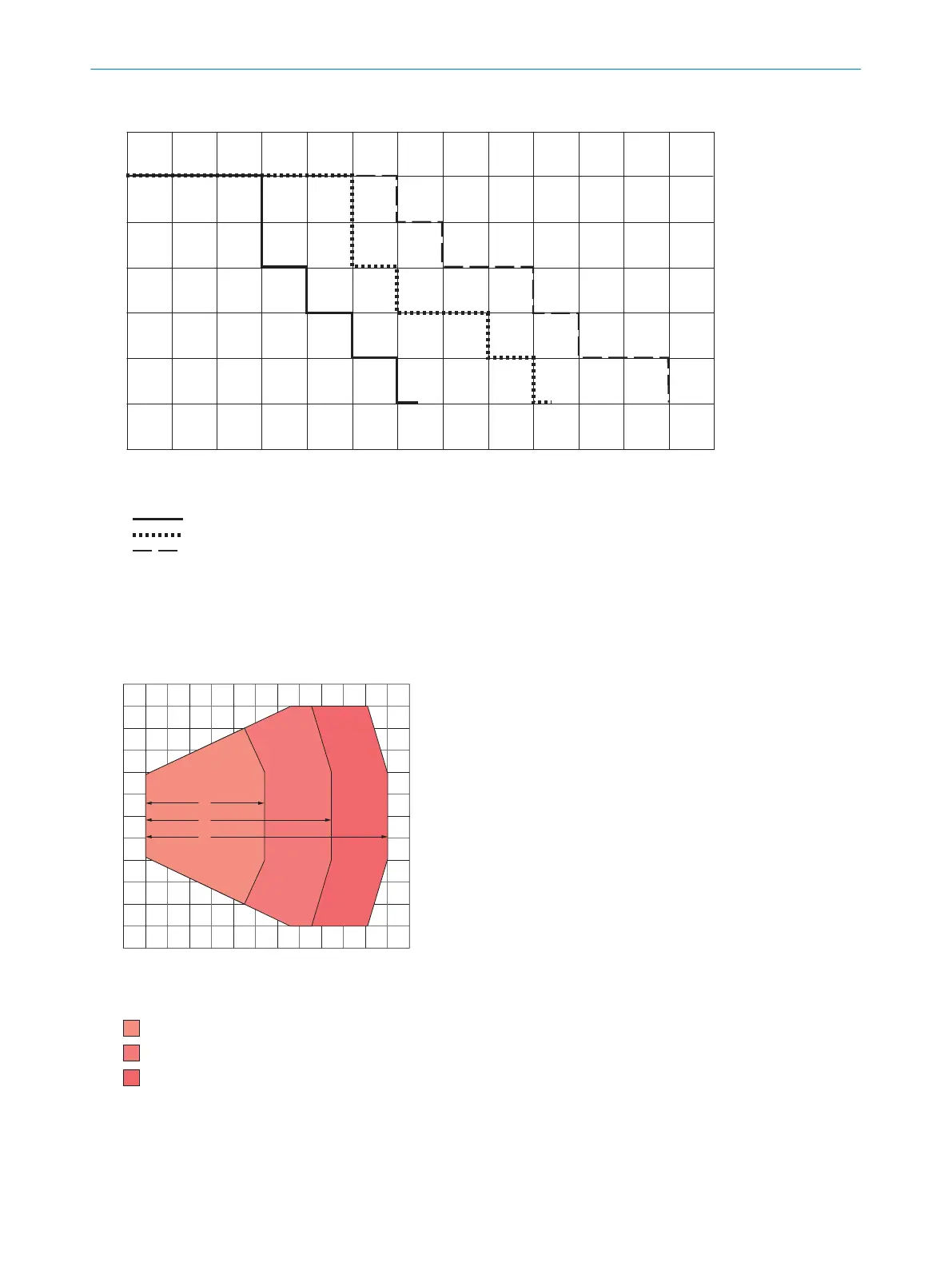

Figure 106: CLV692-0xxx (High Density): scanning frequency characteristic curve depending on the radial reading distance and
resolution
12.6.8 High Density: reading performance data, line scanner with oscillating mirror
400 600 800 1000 1200 1400 1600
200
–200
–400
–600
400
600
Reading field height in mm
Resolution
a: 0.20mm
b: 0.25mm
c: 0.30mm
Reading distance in mm
a
b
c
Figure 107: CLV692-1xxx (High Density): reading field height depending on the reading distance and resolution
12
TECHNICAL DATA
120
O P E R A T I N G I N S T R U C T I O N S | CLV69x 8014396/ZMG8/2017-07-04 | SICK
Subject to change without notice
