SICK CLV69x User Manual

400 600 800 1000 1200 1400 1600
1300
1200
1100
1000
900
800
700
600
High Density: line scanner with oscillating mirror CLV692-1xxxScanning frequency (Hz)
Radial reading distance (mm)
Resolution:
0.20mm
0.25mm
0.30mm

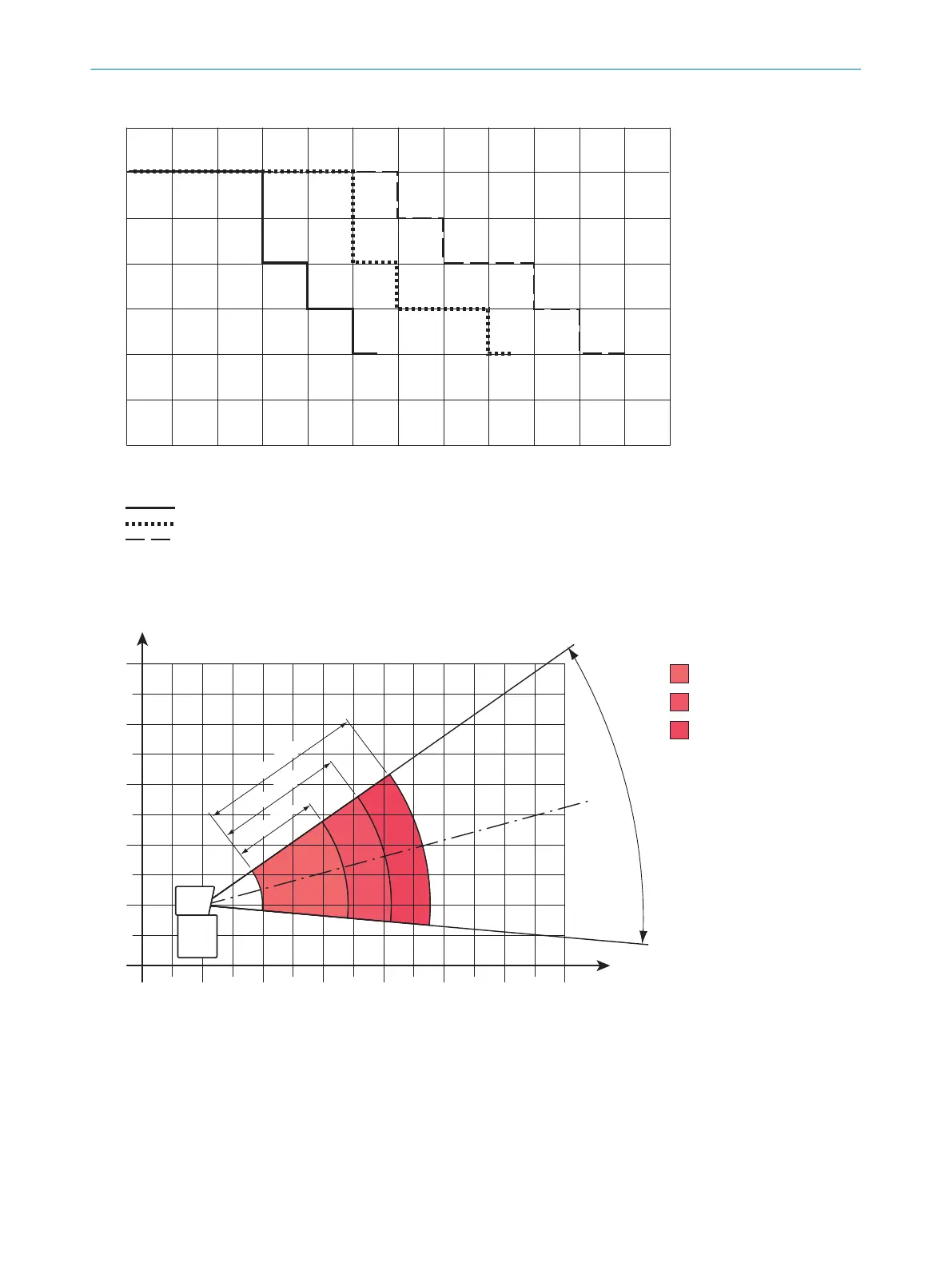

Figure 111: CLV692-1xxx (High Density): scanning frequency characteristic curve depending on the radial reading distance and
resolution
Resolution:
0.20mm
0.25mm
0.30mm
Deflection width (mm)
Radial reading distance (mm)
High Density: line scanner with oscillating mirror CLV692-1xxx
Angle of deflection max. 40°
-400 0 400 800 1200 1600 2000 2400
-400
0
400
800
1200
1600
0.30mm
0.20mm
0.25mm
Figure 112: CLV692-1xxx (High Density): deflection width depending on the radial reading distance, angle of deflection and
resolution
12
TECHNICAL DATA
124
O P E R A T I N G I N S T R U C T I O N S | CLV69x 8014396/ZMG8/2017-07-04 | SICK
Subject to change without notice
