Operating Instructions
Condensed Data Wizard
IDM corded
& IDM Bluetooth
8017159/142O/2019-05-23
© SICK AG · Germany · All rights reserved · Subject to change without notice
105
3.12 Condensed Data Wizard
DataWizard is a data editing system provided specially for the IDM hand-held scanners. Through DataWizard,
you can process the scanned data prior the transmission in many ways as: Insert, Delete, Match, Verify,
Replace, Reorganize, and Repeat Transmission. It will help you to arrange the transmission of scanned data
to any specific format without software modification. For further configuration options please use the IDM Set
Up Tool
1
. Through the IDM Set Up Tool, all settings and configurations can be done on-screen on Windows
2000 / XP / 7. A Condensed Version DataWizard is provided by each IDM series. Through this menu, the
condensed DataWizard can be utilized via bar code menu readings with ease. All “Character” input should be
referred to the ASCII/HEX Table listed in the Appendix (page 119) to find the matched HEX value.

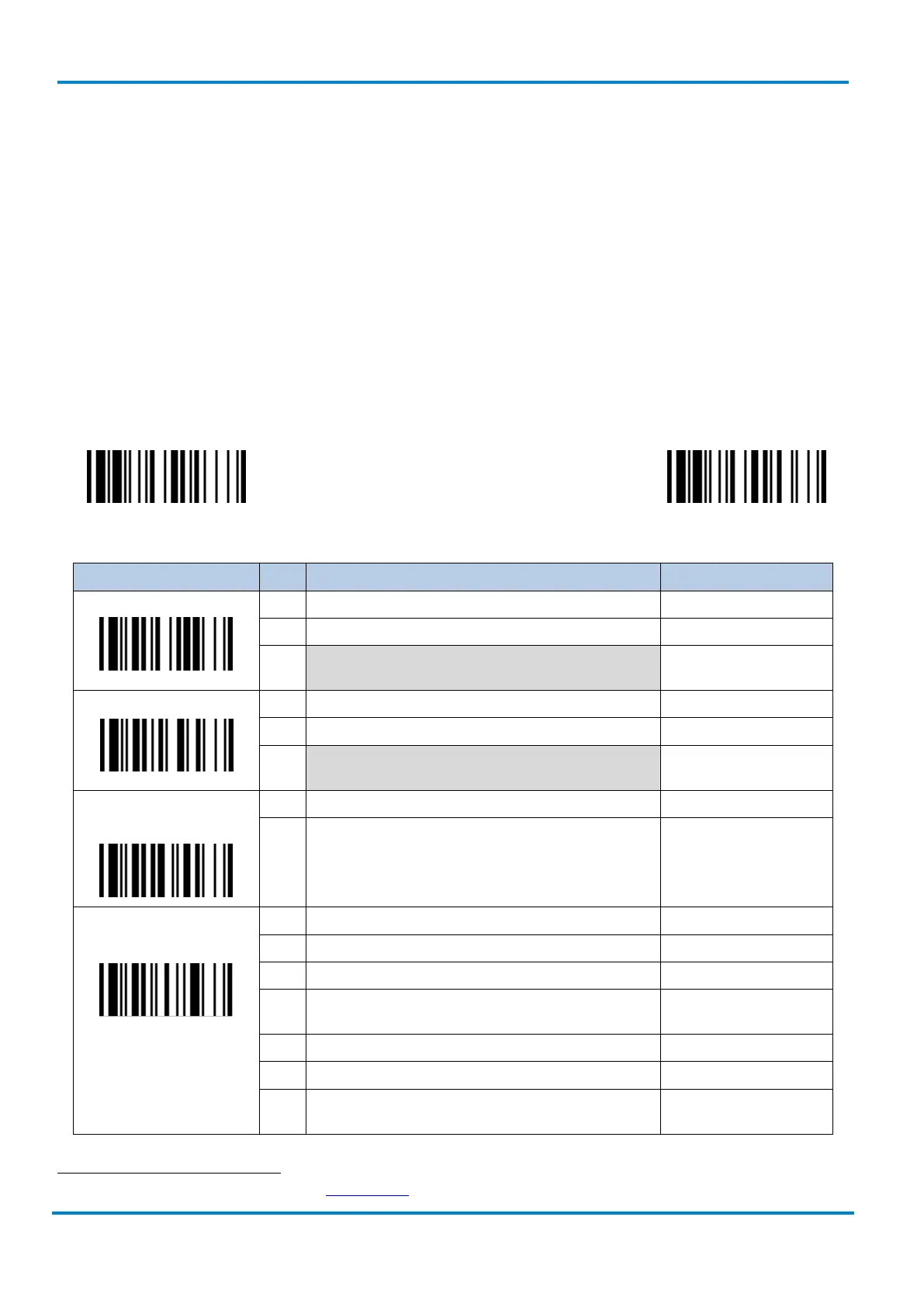

3.12.1 Preamble, Postamble, Data Length, Symbol ID Transmission
PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
Preamble
SS None  FIN
MS 1-15 characters [00-7F], FIN
Maximum 15-character input; scan “FIN” to terminate this
selection.
Postamble
SS None  FIN
MS 1-15 characters [00-7F], FIN
Maximum 15-character input; scan “FIN” to terminate this
selection.
Data Length
Transmission
SS Disable 
0
SS Enable 2-4 digits data length transmission 1
Symbology ID
Transmission
SS Disable symbology ID transmission  0
SS Enable prefix symbology ID transmission 1
SS Enable suffix symbology ID transmission 2
SS Enable both prefix and suffix symbology ID
transmission
3
SS Enable prefix AIM symbology ID transmission 4
SS Enable suffix AIM symbology ID transmission 5
SS Enable both prefix and suffix AIM symbology ID
transmission
6
1
The IDM Set Up Tool can be downloaded on www.sick.com.
