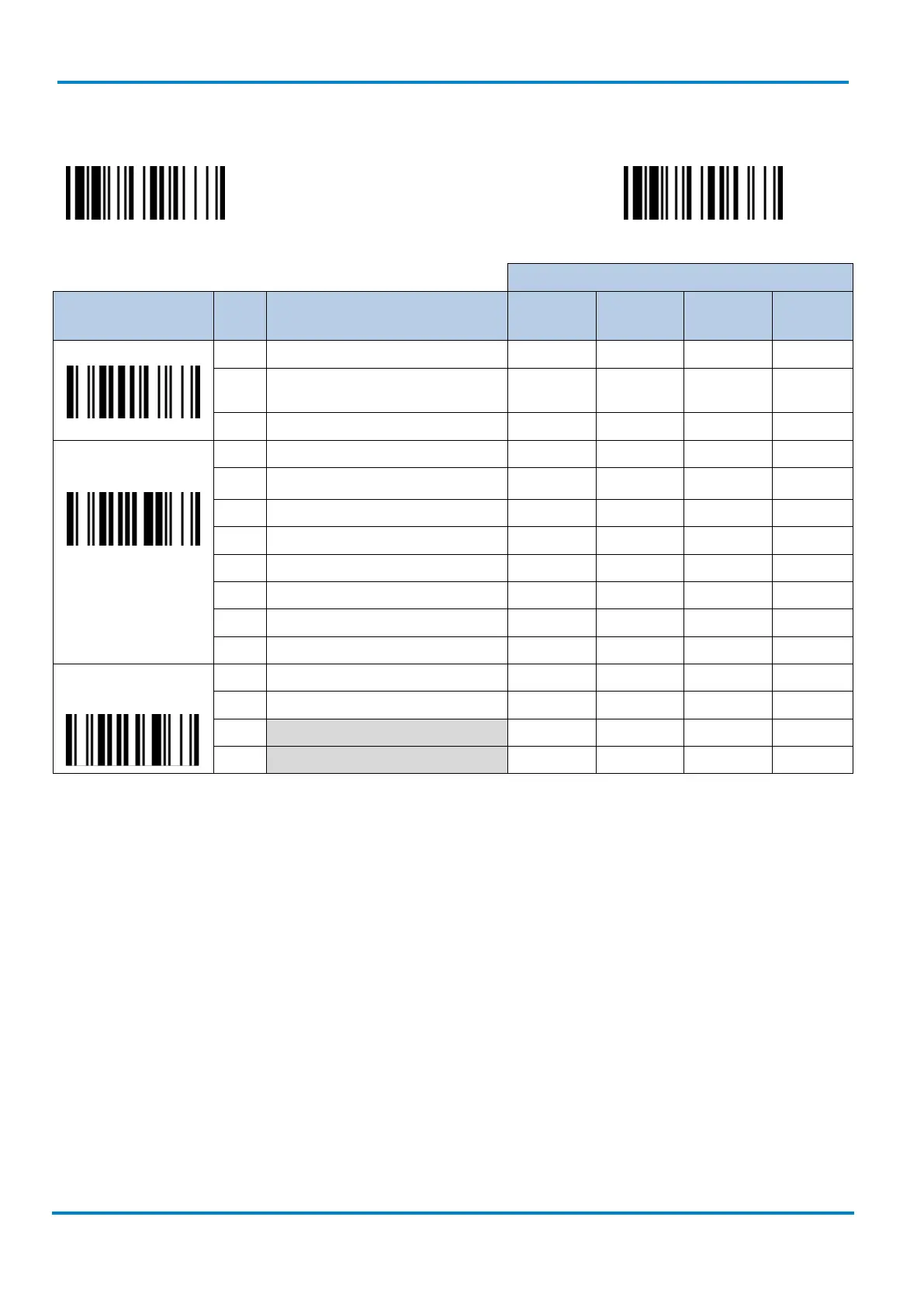

3.9.9 Aiming, Delay Aiming Time-out, Decode Aiming
PROGRAM
F_DEFAULT
Option Code
Family Code
Selection
P.C. Parameter Selection
1D Corded
(IDM1x0)
2D Corded
(IDM2x0)
1D BT
(IDM1x1)
2D BT
(IDM2x1)
Aiming Control
SS Regular Aiming ( for IDM BT) - 0 - 0
SS Intelligent Aiming ( for IDM
corded)
- 1 - 1
SS Delay Aiming Control - 2 - 2
Delay Aiming Time-
out Control
SS 200 ms - 0 - 0
SS 400 ms  - 1 - 1
SS 800 ms - 2 - 2
SS 1 sec - 3 - 3
SS 1.5 secs. - 4 - 4
SS 2 secs. - 5 - 5
SS 3 secs. - 6 - 6
SS 4 secs. - 7 - 7
Decode Aiming
Control
SS Disable in Hand-Held mode - 0 - 0
SS Enable in Hand-Held mode  - 1 - 1
SS Disable in Hands-Free mode - 2 - 2
SS Enable in Hands-Free mode  - 3 - 3
Aiming Control
The Aiming Control is only available for trigger mode. In Intelligent Aiming, the aiming light is turned on when
the scanner is lifted. A trigger pull activates decoding process. After 2 seconds of inactivity, the aiming light
will be shut off. Delay Aiming Control allows a delay time for the operator to aim the scanner before the image
is taken. During the delay time, the aiming light will be on, but the LED illumination won’t be turned on until
the delay time is up.
Delay Aiming Time-out Control
The Delay Aiming Time-out Control is only available for trigger mode. You can use Delay Aiming Time-out
Control to set the delay time.
Decode Aiming Control
For IDM260, this function is not supported in Hands-Free mode.
Hand-Held mode: Low power, Trigger, Alternative, Toggle, Level & Multiple read mode
Hands-Free mode: Presentation mode, Force mode, Diagnostic mode
