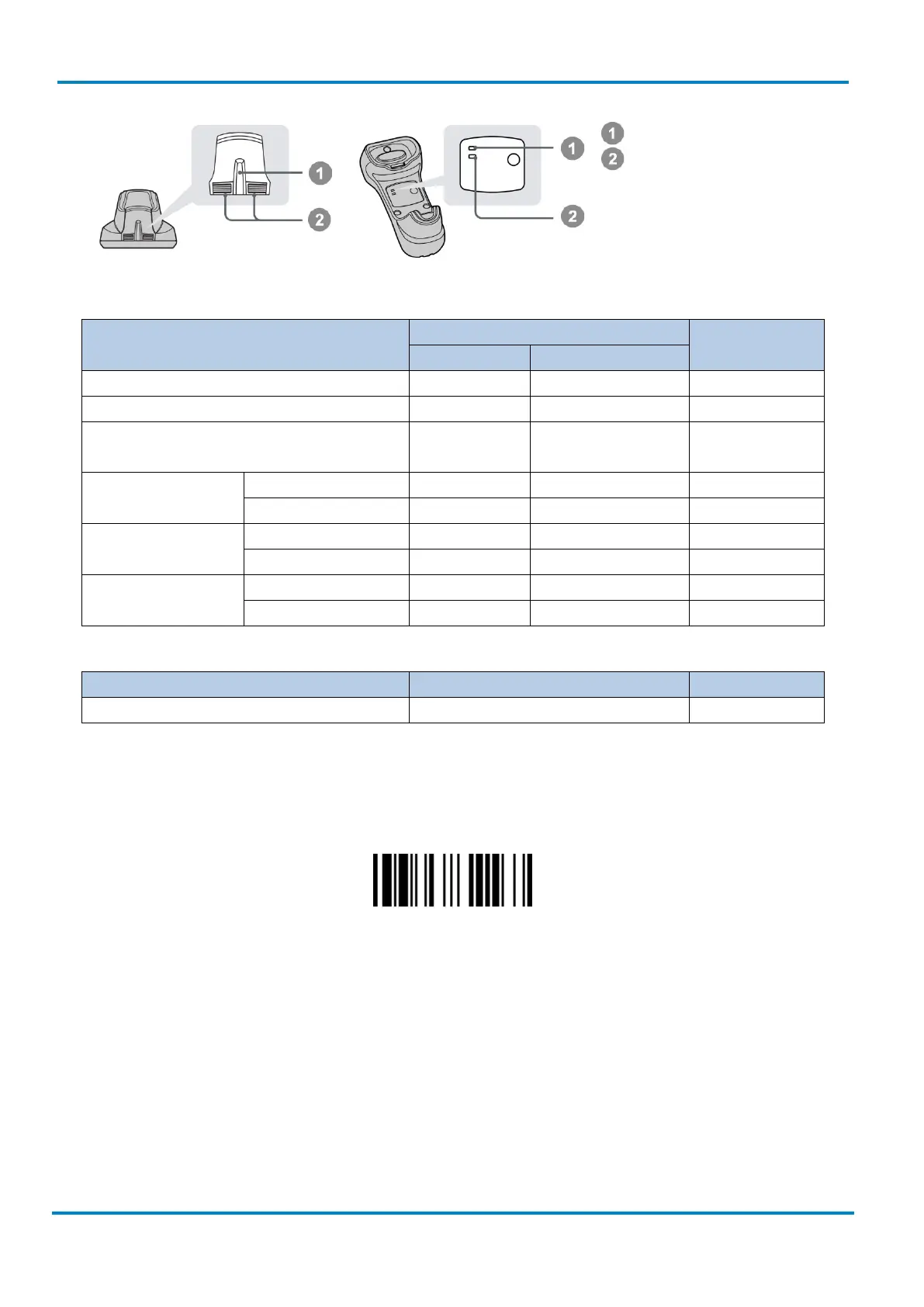

IDM Smart Cradle
Description
Indicators
Beeper
Power
Status
Power on
1 blue blink
Off
Power on beeps
Smart Cradle Upgrade State
Off
Steady red
Short clicks
Uninstall state Off Alternative red-
green blinks
Off
PICO Mode
Radio Connected
Steady blue
Steady Green
Off
Radio Disconnected
Off
Steady red
Off
PAIR Mode
Radio Connected
Steady blue
Off
Off
Radio Disconnected
Off
Steady red
Off
Smart cradle paged
by scanner
PICO Mode
Steady blue
Steady green
6 page beeps
PAIR Mode
Steady blue
Off
6 page beeps
IDM Charging Cradle
Description
Power Indicator
Beeper
Power on
Steady blue
Off
2.2 Paging Function
The paging function helps to locate the paired smart cradle or scanner. If you would like to page the paired
smart cradle, you can scan the “Paging” command.
Paging
If you would like to page the paired scanner, you can press the paging/rest button of the smart cradle no
longer than 5 seconds.
2.3 Radio Link Mode
The IDM Bluetooth scanners provide several radio link modes to communicate with the host device. When the
Bluetooth-enabled host device is not available, the scanner can work with the smart cradle in PAIR mode
(peer-to-peer connection) or PICO mode (multiple connections) to provide a plug-and-play cordless migration
of your existing non-Bluetooth devices. Moreover, you are able to use the scanner to work with Bluetooth-
enabled host devices via SPP mode or HID mode. When the radio link is disconnected, the scanner is capable
of reconnecting the radio link automatically when it returns into the Bluetooth radio range area. Please note
Power indicator
Status indicator(s)
