SICK IDM161 - Industrial Fieldbus

Operating Instructions
Connectivity
IDM corded
& IDM Bluetooth
8017159/142O/2019-05-23
© SICK AG · Germany · All rights reserved · Subject to change without notice
9
Depending on the Scanner model different cables are available.
IDM120, IDMx40,
IDM Bluetooth base
stations
IDM160,
IDM260
USB
straight 1.8 m 6036728 6045195
spiral 3 m 6039158 6045232
RS-232
straight 1.8 m 6041540 6045196
spiral 3 m 6039156 6045233
Power Supply
needed for operation with RS-232
cables
1
, Bluetooth
6036722
1.1.2 Industrial fieldbus

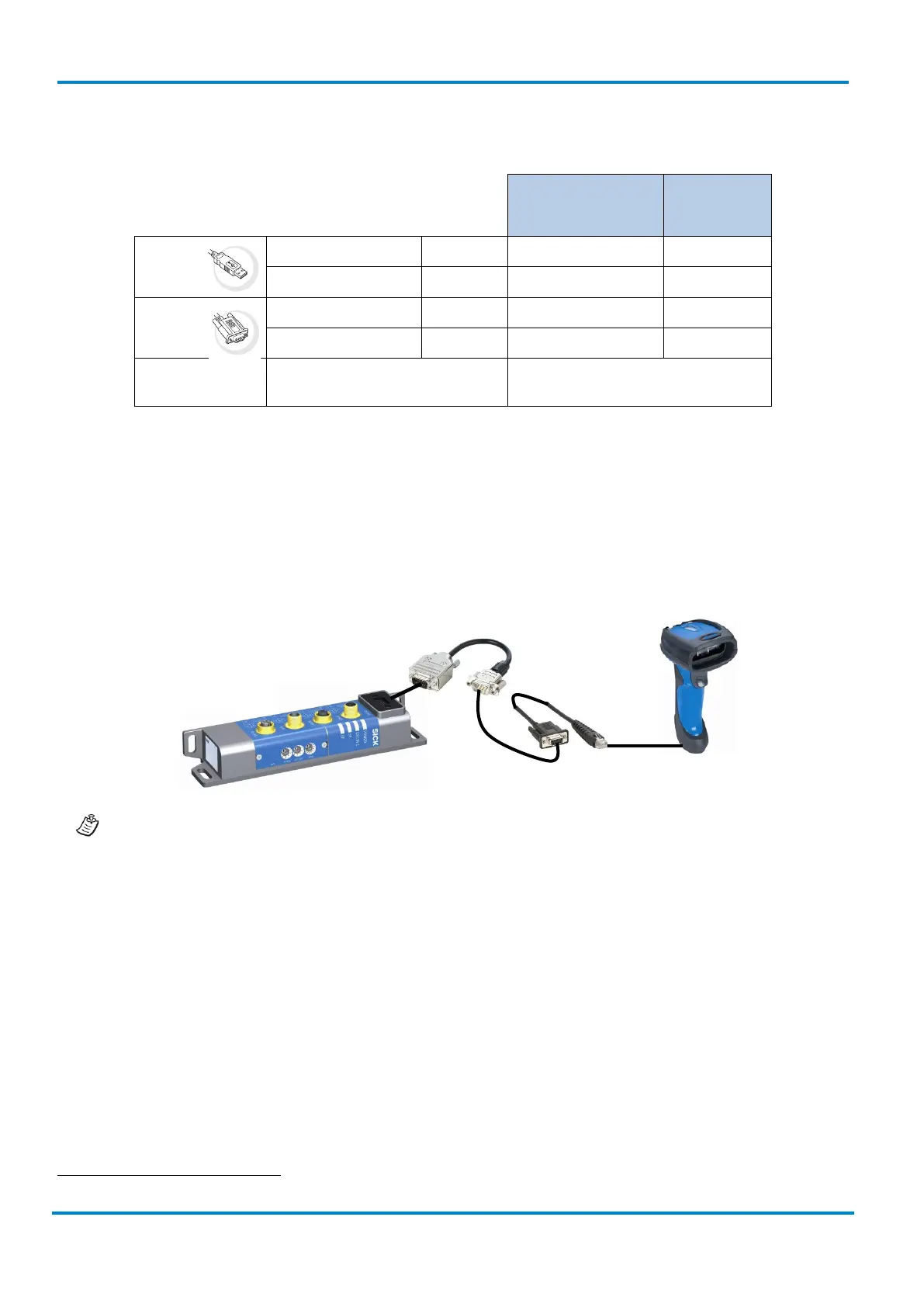

The IDM Hand-held scanners can be connected to industrial fieldbuses (such as PROFIBUS, PROFINET,
Ethernet TCP/IP, DeviceNet, etc.) via SICK connection modules and an adapter cable. The adapter cable
includes a voltage converter from DC 24 to 5 V for the voltage supply of the hand-held scanner, eliminating
the need of a separate power supply.
For more information on necessary components and order numbers please contact your local SICK
sales representative.
1
If there is no power on Pin 9.
RS-2323 cable
Adapter cable
Connection
module
