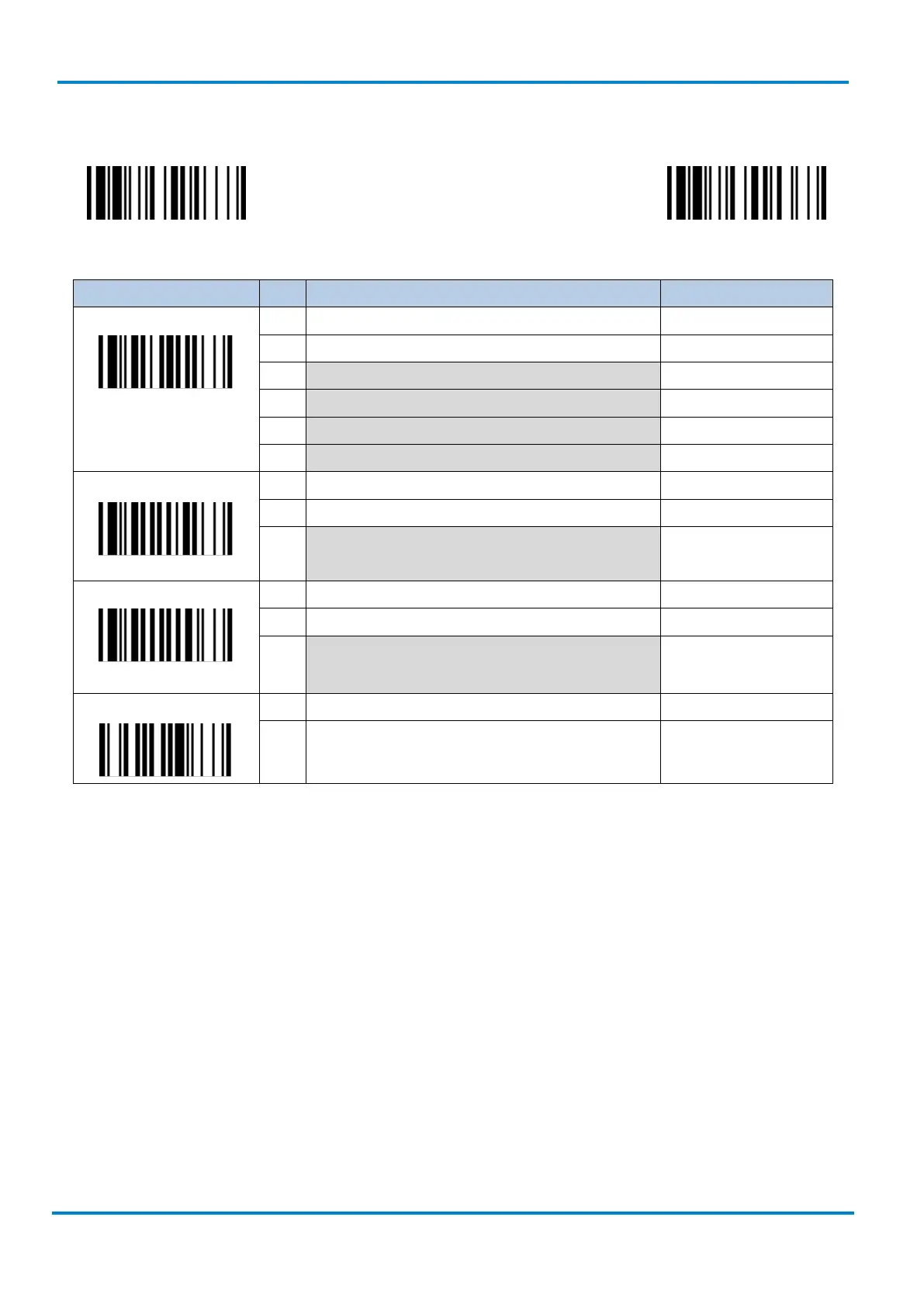

3.7.14 Code 128
PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
Code 128 Settings
SS Disable Code 128 0
SS Enable Code 128  1
SS ISBT Concatenation Off  2
SS ISBT Concatenation On 3
SS ISBT Concatenation on – Check ISBT table 4
SS ISBT Concatenation Auto 5
Code 128 Min. Length
SS Default (01)  FIN
MS 01-98 (2 digits)
Scan 2 digits from the option code chart in the Appendix;
then the scanner will terminate this selection automatically.
Code 128 Max. Length
SS Default (98)  FIN
MS 01-98 (2 digits)
Scan 2 digits from the option code chart in the Appendix;
then the scanner will terminate this selection automatically.
Code 128 Security Level
SS Level 0 0
SS Level 1  1
Code 128 Setting
• ISBT Concatenation Off: The scanner will not output ISBT concatenated barcodes.
• ISBT Concatenation On: The scanner will only decode and output ISBT concatenated barcodes. The
scanner will not decode or output single ISBT barcodes.
• ISBT Concatenation On – Check ISBT table: The scanner will only output ISBT concatenated barcodes
that conform to ICCBBA standards. The scanner will not output single ISBT barcodes or ISBT
concatenated barcodes that do not conform to ICCBBA standards.
• ISBT Concatenation Auto: The Scanner will decode and output both ISBT concatenated barcodes and
single ISBT barcodes
