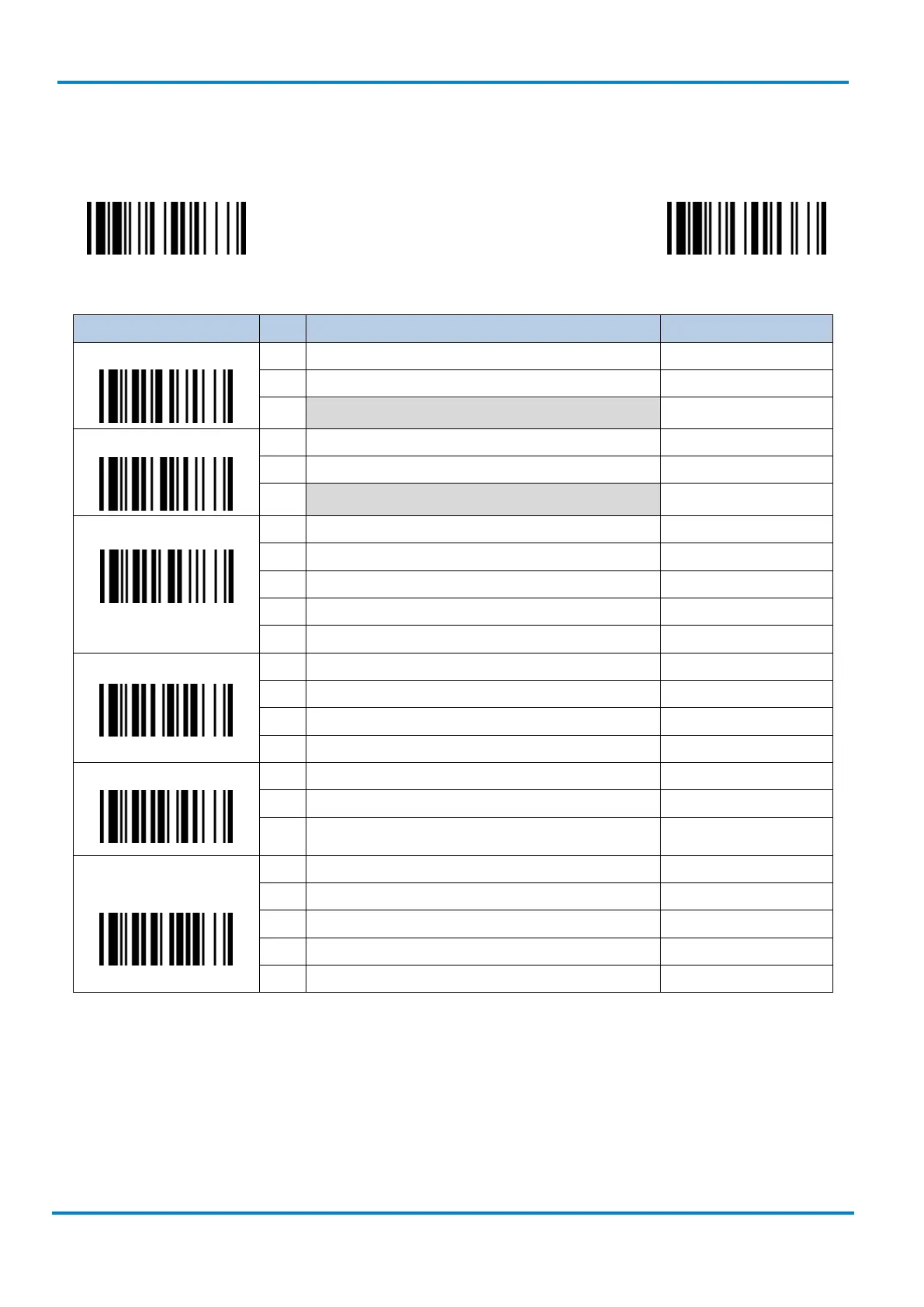

3.6 Wand/ Laser Emulation Control (IDM1xx series)
3.6.1 Output Polarity, Signal State, Margin/ Module Time
PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
Output Polarity
SS High level (5Vdc) on Bar (low level on Space)  0
SS Low level (0Vdc) on Bar (high level on Space) 1
Determine the output voltage level for both bar and space.
Initial Signal State
SS High Level (5Vdc)  0
SS Low Level (0Vdc) 1
Determine the initial state of output voltage level.
Margin Time
SS 10 msec. 0
SS 15 msec. 1
SS 20 msec.  2
SS 25 msec. 3
SS 30 msec. 4
Module Time
SS Extremely short 0
SS Short 1
SS Medium  2
SS Long 3
Narrow/ Wide ratio
SS 1:2  0
SS 1:2.5 1
SS 1:3 2
Code 39/ Code 128
Emulation
SS Disable standard Code 39 emulation  0
SS Enable standard Code 39 skip emulation 1
SS Enable standard Code 39 replace emulation 2
SS Enable Full ASCII Code 39 emulation 3
SS Enable Code 128 emulation 4
Code 39 Skip
When this option is selected, all scanned data will be translated as Standard Code 39 wand/laser emulation
output. If any lower case characters are read, they will be translated to upper case characters. Any other
characters that are not available in Code 39 symbology set will be skipped.
Code 39 Replace
Any character not normally available in the standard Code 39 symbology set will be translated as Space.
