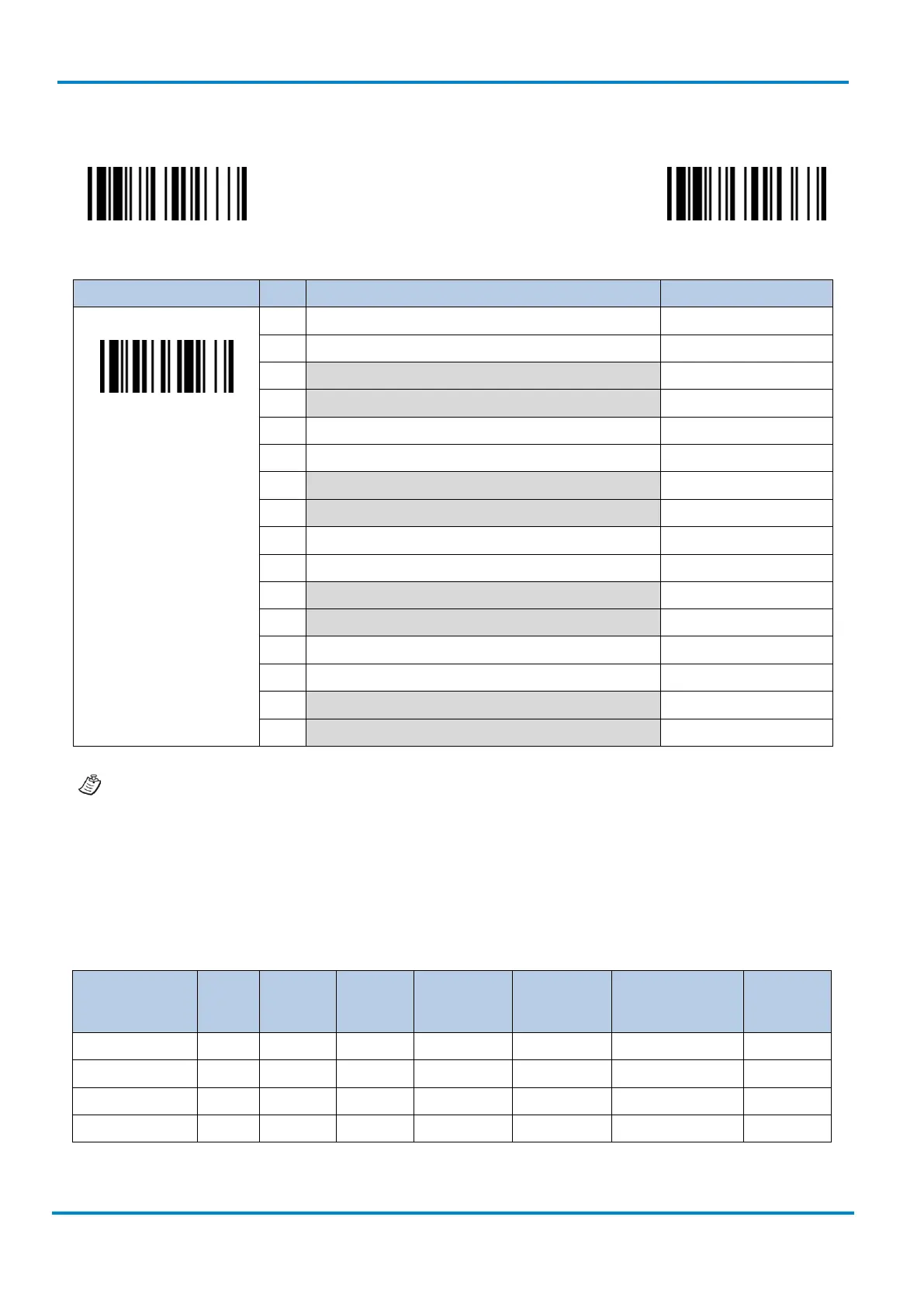

3.7.7 UPC-A/ UPC-E
PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
UPC-A Family Settings
SS Disable UPC-A 0
SS Enable UPC-A  1
SS Disable UPC-E 2
SS Enable UPC-E  3
SS Disable UPC-E expansion  4
SS Enable UPC-E expansion 5
SS Disable UPC standardization  6
SS Enable UPC standardization 7
SS Disable UPC numeric system 8
SS Enable UPC numeric system  9
SS Disable UPC-A check digit transmission A
SS Enable UPC-A check digit transmission  B
SS Disable UPC-E check digit transmission C
SS Enable UPC-E check digit transmission  D
SS Disable UPC “leading 1” portion  E
SS Enable UPC “leading 1” portion F
When enable UPC-E expansion, the UPC-E decoded data will be converted to UPC-A format and
affected by related settings, such as UPC standardization, UPC numeric system and UPC-A check digit
transmission.
UPC-E & EAN-8 Expansion: Expand the 8-digit UPC-E and 8-digit ENA-8 to 12-digit UPC-A and 13-digit EAN-13.
UPC-A Standardization: Expand the 12-digit UPC-A to 13-digit EAN-13 with 1 zero insertion.
UPC Lead 1 Numeric System: To read UPC leading with the 1 numeric system, you must enable this option.
WPC Selection
(UPC/EAN/CAN)
Basic
Length
Disable
Check
Digit
Disable
Numeric
System
With 2-digit
Addendum
With 5-digit
Addendum
Enable
Standardization
Enable
Expansion
UPC-A 12 - 1 - 1 + 2 + 5 + 1 0
UPC-E 8 - 1 - 1 + 2 + 5 + 1 + 4
EAN-13 13 - 1 NC + 2 + 5 NC 0
EAN-8 8 - 1 NC + 2 + 5 NC + 5
