3.12.3 Data Verifier
The Data Verifier is used to provide advanced verification for error-free scanning and to work as an Embedded
Data Transmitting Filter. All data must conform to the Identified Barcode Symbologies, Identified Data Length,
and one to three Identified Characters in the checking position. Otherwise, the Hand-held scanner will not
transmit the data to the host computers or terminals, but will instead issue 3 long beeps for verification error
and skip the scanned data. The Data Verifier checks only scanned data without Preamble, Postamble, STX,
ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix. Regarding the “Bar Code Selection” and
“Position Calculation” of Data Verifier, please refer to page 99 and 100 for details. All “Character” input
should be referred to the ASCII/HEX Table listed in the Appendix (page 107) to find matched HEX value.

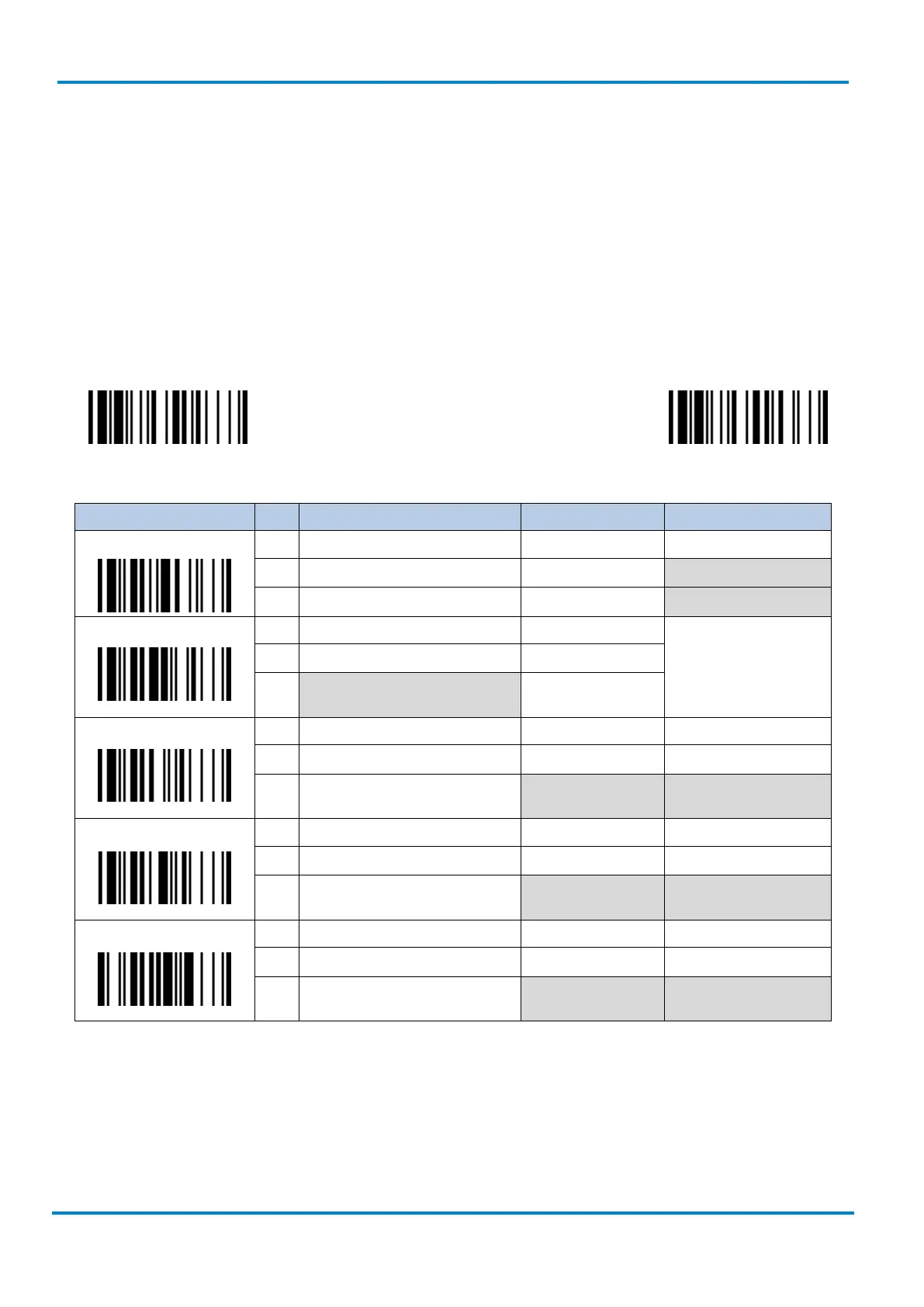

PROGRAM
F_DEFAULT
Family Code Selection P.C. Parameter Selection 1
st
Option Code 2
nd
Option Code
Verifier Control
SS Disable  FIN
MS
Select one barcode symbology (2 digits)
Automatic termination
MS
Select all barcode symbologies 00
Automatic termination
Identified Data Length
SS Disable  FIN
DS
Enable (2 digits)
Determine the identified data length
for verification.
1st identified character
SS Disable  FIN
DS
Enable Position: (2 digits) [00-7F]
Define position (refer
to chapter 3.12.7)
1 character
2nd identified character
SS Disable  FIN
DS
Enable Position: (2 digits) [00-7F]
Define position (refer
to chapter 3.12.7)
1 character
3rd identified character
SS Disable  FIN
DS
Enable Position: (2 digits) [00-7F]
Define position (refer
to chapter 3.12.7)
1 character
