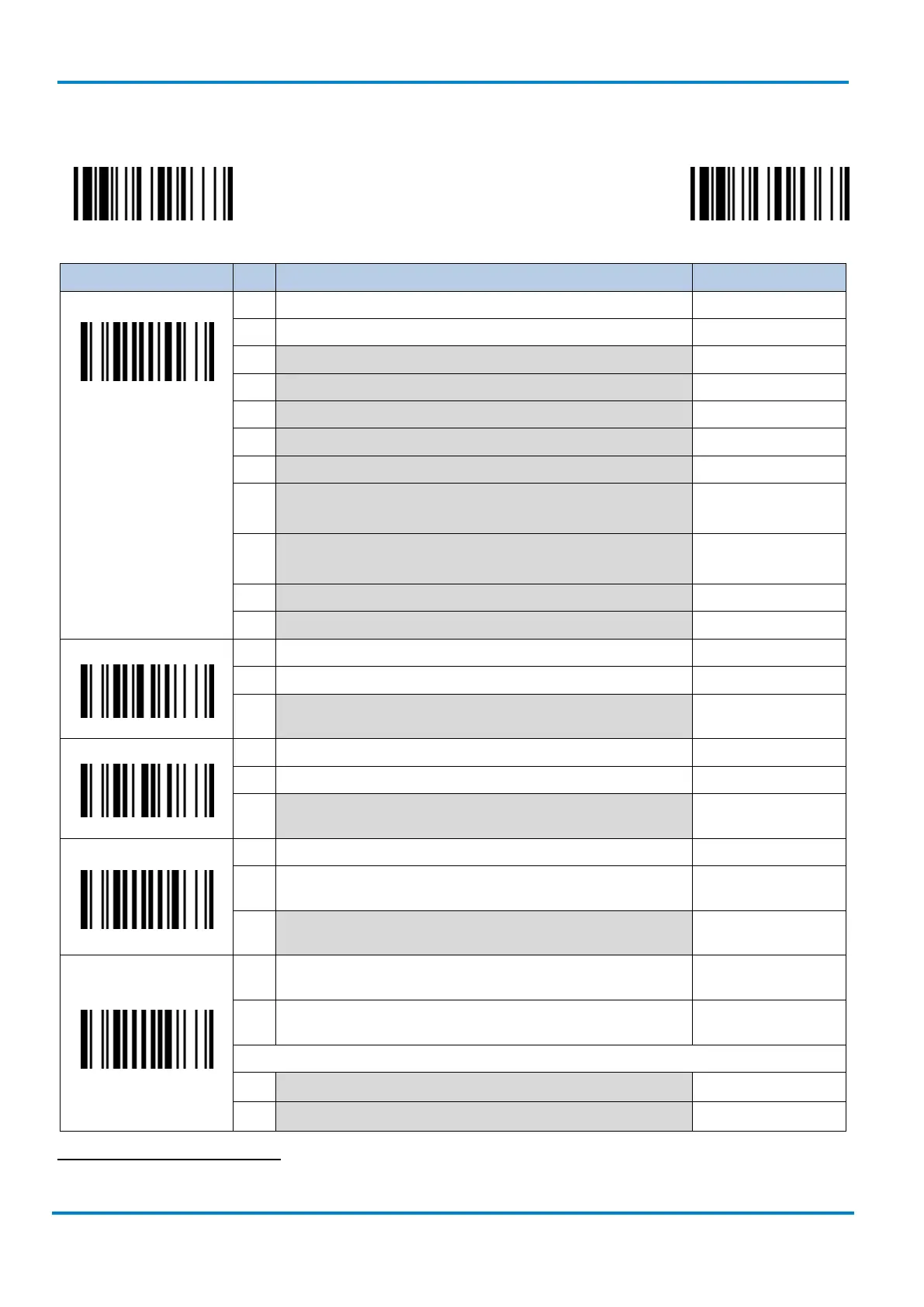

3.7.15 GS1-128
Family Code Selection P.C. Parameter Selection Option Code
GS1-128 Family Setting
SS
Disable GS1-128 special function
0
SS
Enable GS1-128 special function
1
SS
Disable First FNC1 transmission
2
SS
Enable First FNC1 convert to “]C1” and transmission
3
SS
Disable Application Identifier output
4
SS
Enable Application Identifier output
5
SS
Enable Application Identifier output with additional “()”
6
SS
Disable “DD=00” transmission when AI data field contains
7
SS
Enable “DD=00” transmission when AI data field contains
8
SS
Disable a dot insert in the decimal point position
9
SS
Enable a dot inset in the decimal point position
A
GS1-128 Min. Length
SS Default (01) FIN
MS 01-Maximum (2 digits)
Scan 2 digits from the option code chart in the Appendix; then the
scanner will terminate this selection automatically.
GS1-128 Max. Length
SS Default (98) FIN
MS 98-Minimum (2 digits)
Scan 2 digits from the option code chart in the Appendix; then the
scanner will terminate this selection automatically.
GS1-128 Edition Mode
SS None FIN
MS 1 – 10 Application Identifier (AIs) and Prefix, Suffix input [AI table]
,[GS1-128
ASCII table]
2
,[FIN]
Please scan the AI barcodes and ASCII barcodes in your desired output
sequence.
GS1-128 Edition Mode
Output Control
SS If the application identifier set in edition mode is not found,
only the Header Terminator Separator is output
0
SS If the application identifier set in edition mode is not found,
the Header Terminator Separator is not output.
1
If option 1 is chosen, the following settings can be applied:
SS If data was completely un-match, do not output original data 2
SS If data was completely un-match, output original data 3
1
For the Application Identifier (AI) table see chapter 5.6 on page 103
2
For the GS1-128 ASCII table see chapter 5.5 on page 100
To Next Page
