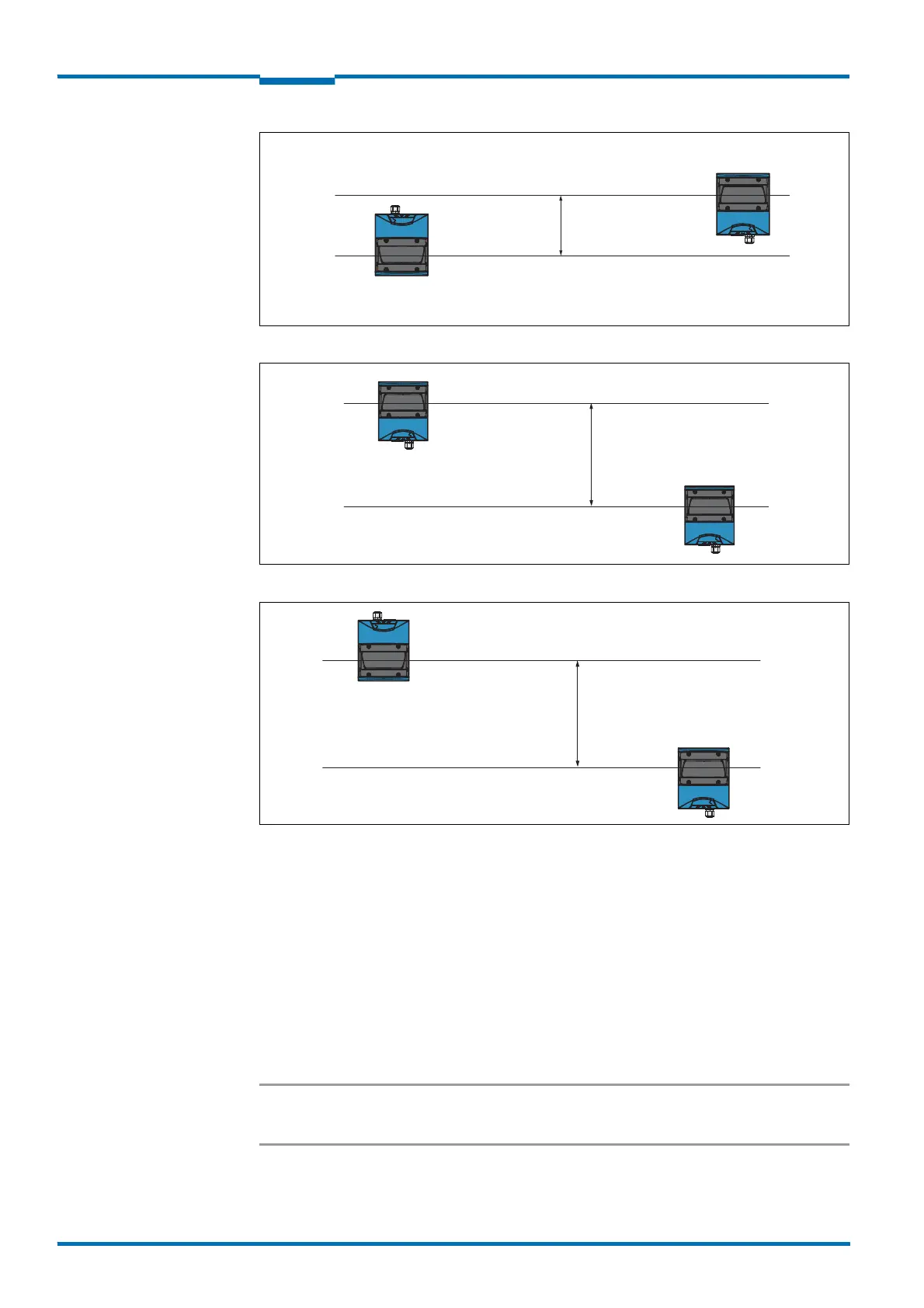

Fig. 37: Placement of two LMS5xx with parallel offset, one of these upside down
Fig. 38: Placement of two LMS5xx upside down, parallel offset
Fig. 39: Placement of two LMS5xx with parallel offset, one of these upside down
5.3 Dismanteling the system
1. Switch off the supply voltage.
2. LMS500:
Loosen and remove the system connector.
LMS511/LMS531/LMS581:
Remove all connection cables.
3. Undo the mounting screws for the LMS5xx to the mounting bracket and remove the
device.
Important On final decommissioning, please observe the disposal requirements in section 8.3.1
“Disposal” on page 95 for environmentally correct disposal.
