8 Operation
8.1 General notes on operation
Teach possible using teach-in button.
NOTE
The user is r
esponsible for the correct teach process.
IO-Link
In addition t
o manual configuration, the sensor can also be configured using IO-Link. A
detailed list of IO-Link functions can be found in the leaflet and can be downloaded at
www.sick.com/mps-g.
You can find the IODD file at www.sick.com/mps-g.
The following settings can be made and parameters read out via IO-Link:
•
C
onf
iguration of up to 16 switching points (Qints)
•
Position determination in mm
°
Offset:
°
Repeatability
•
Pneumatic Actuator Diagnosis: Read out of the following data:
°
Cycle counter
°
Cylinder stroke in [mm]
°
Total cylinder travel in [m]
°
Cycle time in [ms]
°
Stroke time in [ms] (stroke time in positive direction / stroke time in negative
direction)
°
Stroke speed in [m/s] (stroke speed in positive direction / stroke speed in
negative direction)
°
Dwell time in start position in [ms]
°
Dwell time in end position in [ms]
°
Currently measured field strength per sensor element in [mT]
°
Measured peak value of the field strength per sensor element in [mT]
8.2 Operating and status indicators

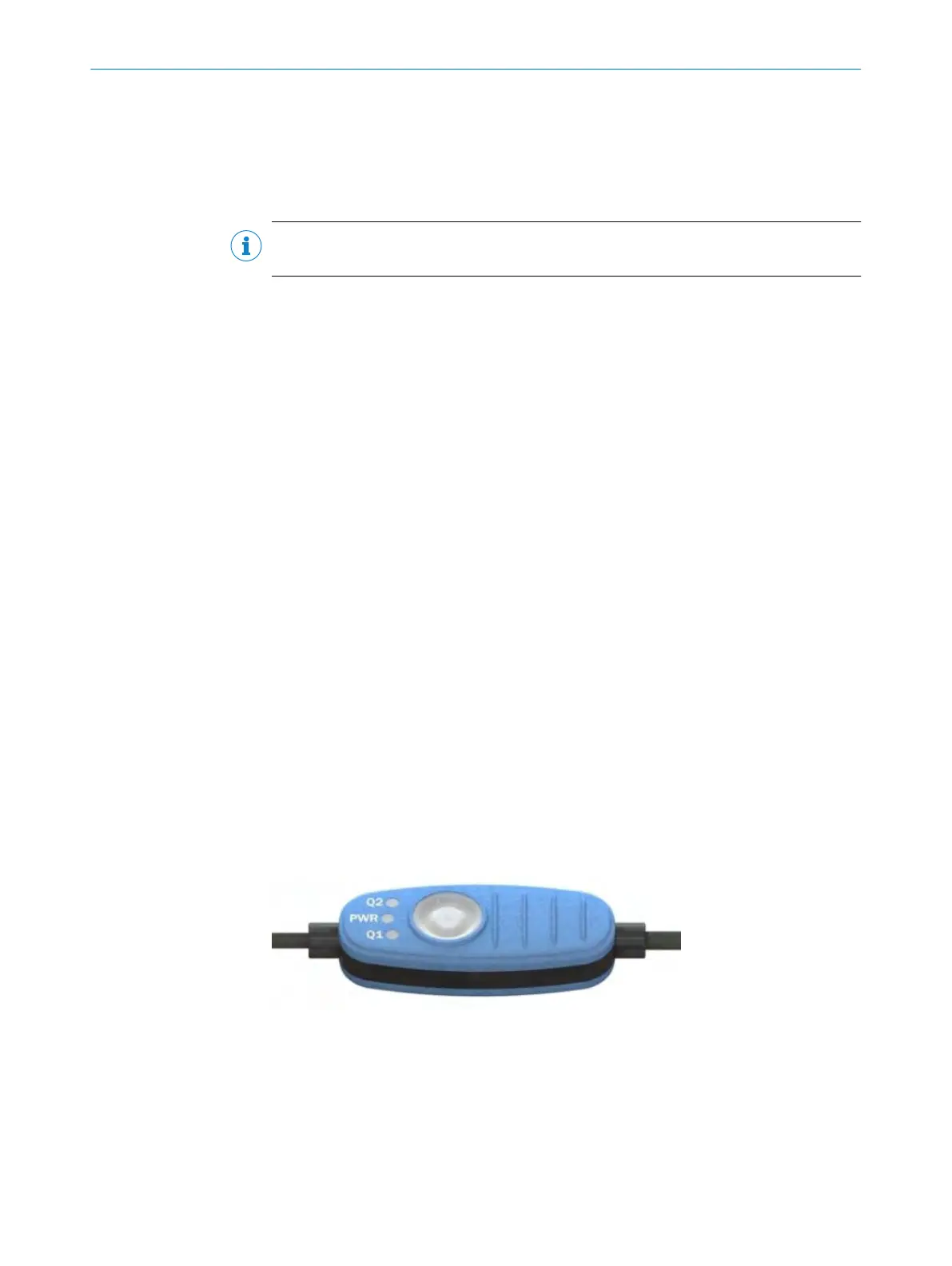

8.2.1 Control element
The following settings can be made via the teach-in button.
•
D
e
finition of up to 3 switching points (digital outputs) via Dynamic Teach function
•
Manual definition of 1 to 3 switching points (digital outputs)
•
Adjustment of overrun distance per switching point (1 – 5 mm) (after Manual Teach)
•
Deactivation of all switching points
8 O
PERATION
26
