3 Product description
3.1 Scope of delivery
The delivery of the device includes the following components:
Table 2: Scope of delivery
Item Component Comments
1 Device in the version ordered Depending on version
Without connecting cables and brackets
1 Set of protective caps for electri‐
cal connections
Attached to the connections
1 Printed safety notes, multilin‐
gual
Quick guide and general safety notes
3.2 Status indicators
2
1

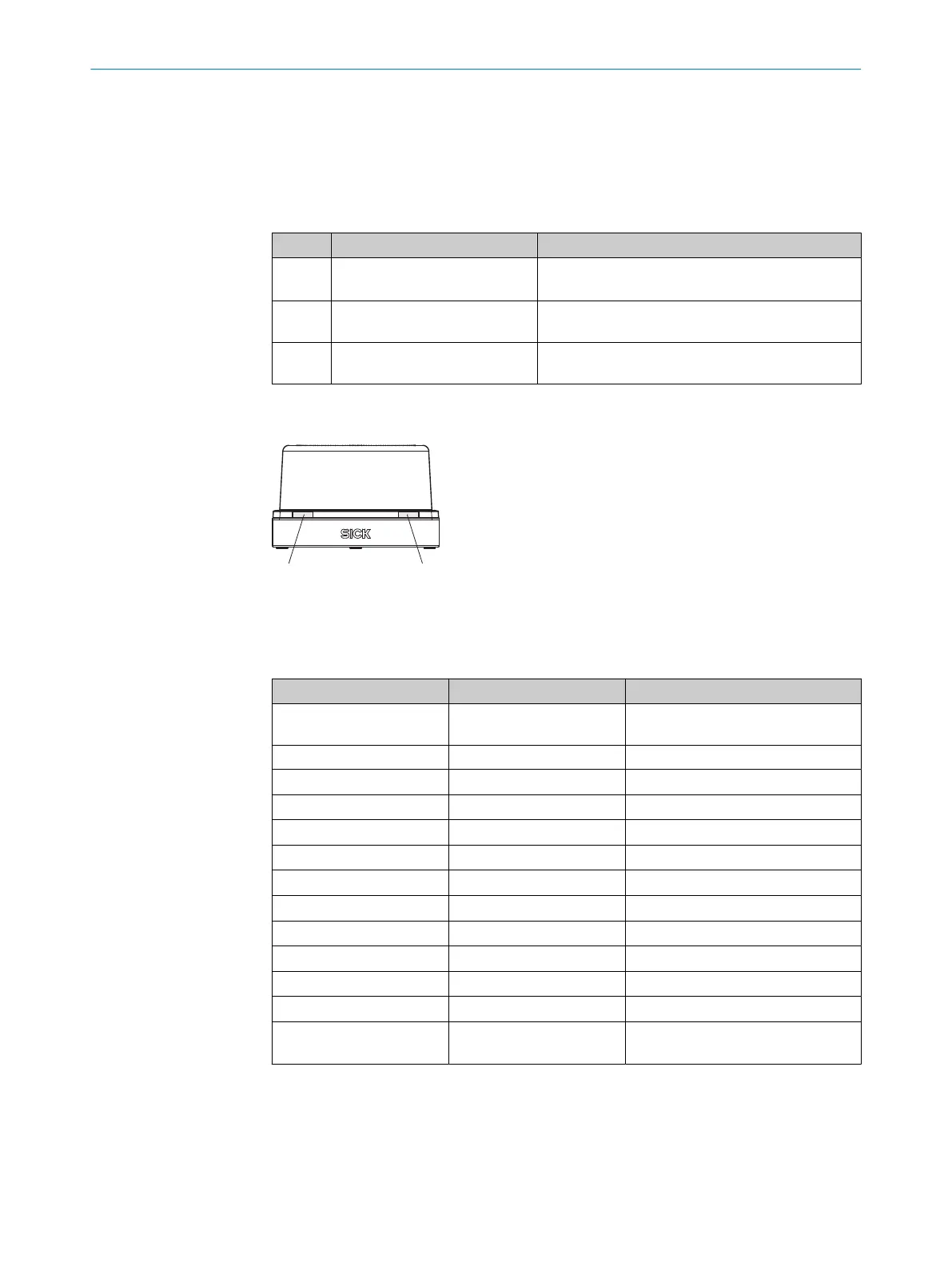

Figure 1: Status indicators
1
LED1
2
LED2
LED1 (color) LED2 (color) Description
O (Red) O (Red)
Start-up, parameterization, firmware
update, correctable error
- - Off
O (Green) O (Yellow)
Field breached
O (Green) O (Green)
Field free
Ö (Red) Ö (Red)
Fatal error
O (Green) O (Green)
On / Ready for operation
Ö (Green) Ö (Green)
Standby
O (Green) Ö (Yellow)
Restart after time; input
Ö (Yellow) O (Green)
Contamination warning
Ö (Yellow) Ö (Red)
Contamination error
Ö (Yellow) Ö (Yellow)
EasyTeach / teach-in
Ö (Green) Ö (Red)
Alignment mode
O (Green) O (Yellow) O
(Red)
O (Green) O (Yellow) O
(Red)
Identifying the device
O = illuminated; Ö = flashing
3.3 Type code
The devices of the MRS1000 product family are arranged according to the following
type code:
3 PRODUCT DESCRIPTION
10
O P E R A T I N G I N S T R U C T I O N S | MRS1000 8020494/1AZF/2021-05-10 | SICK
Subject to change without notice
