Pin Identification Description Wire color, part num‐
ber 6036155
1
7 GND INx/OUTx Ground for all digital inputs / outputs Blue
8 IN7 / OUT7 Digital input 7 / digital output 7 Red
1
Information only valid when using the specified open-ended connecting cable which is available as an
accessory
6.4 Connection options
The following illustrations show several wiring examples based on the different types of
inputs and outputs used.
Inputs:
•
IN1-3: Field set switching
•
IN4: EasyTeach teach-in
Outputs (maximum output current, "Technical data", page 51):
•
OUT5: EasyTeach cut-off path (evaluation)
•
OUT6: Cut-off path for subsequent evaluations
•
OUT7: EasyTeach confirmed indicator (signals teach-in)
•
OUT8: Device ready indicator
+24 V
OUT8
+0 V
IN/OUTx
OUT7
OUT6
OUT5
+24 V
IN1IN2IN3IN4
GND
PWR
5
4
3
2
1
I/O
8
7
6
5
4
3
2
1

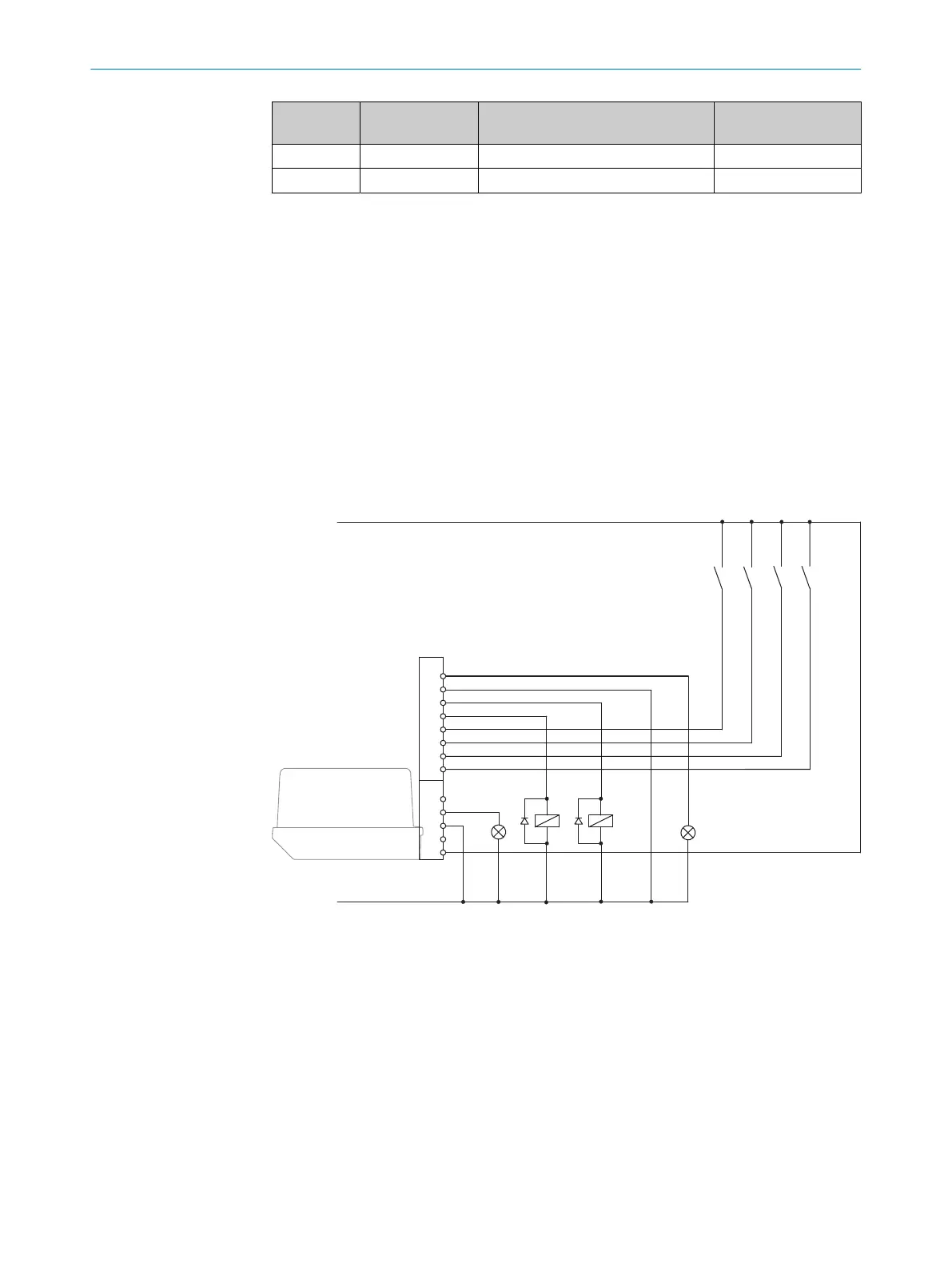

Figure 39: Connection example with PNP outputs and active high inputs (default)
ELECTRICAL INSTALLATION
6
8020494/1AZF/2021-05-10 | SICK O P E R A T I N G I N S T R U C T I O N S | MRS1000
41
Subject to change without notice
