Mounting
4.3 Mounting the devices on a standard mounting rail
3RP25 Time Relays
Manual, 09/2019, A5E31947765002A/RS-AC/003
25
4.3 Mounting the devices on a standard mounting rail
Requirements
● A horizontal 35-mm wide mounting rail in accordance with DIN EN 60715 has been
properly secured at the installation location.
Procedure

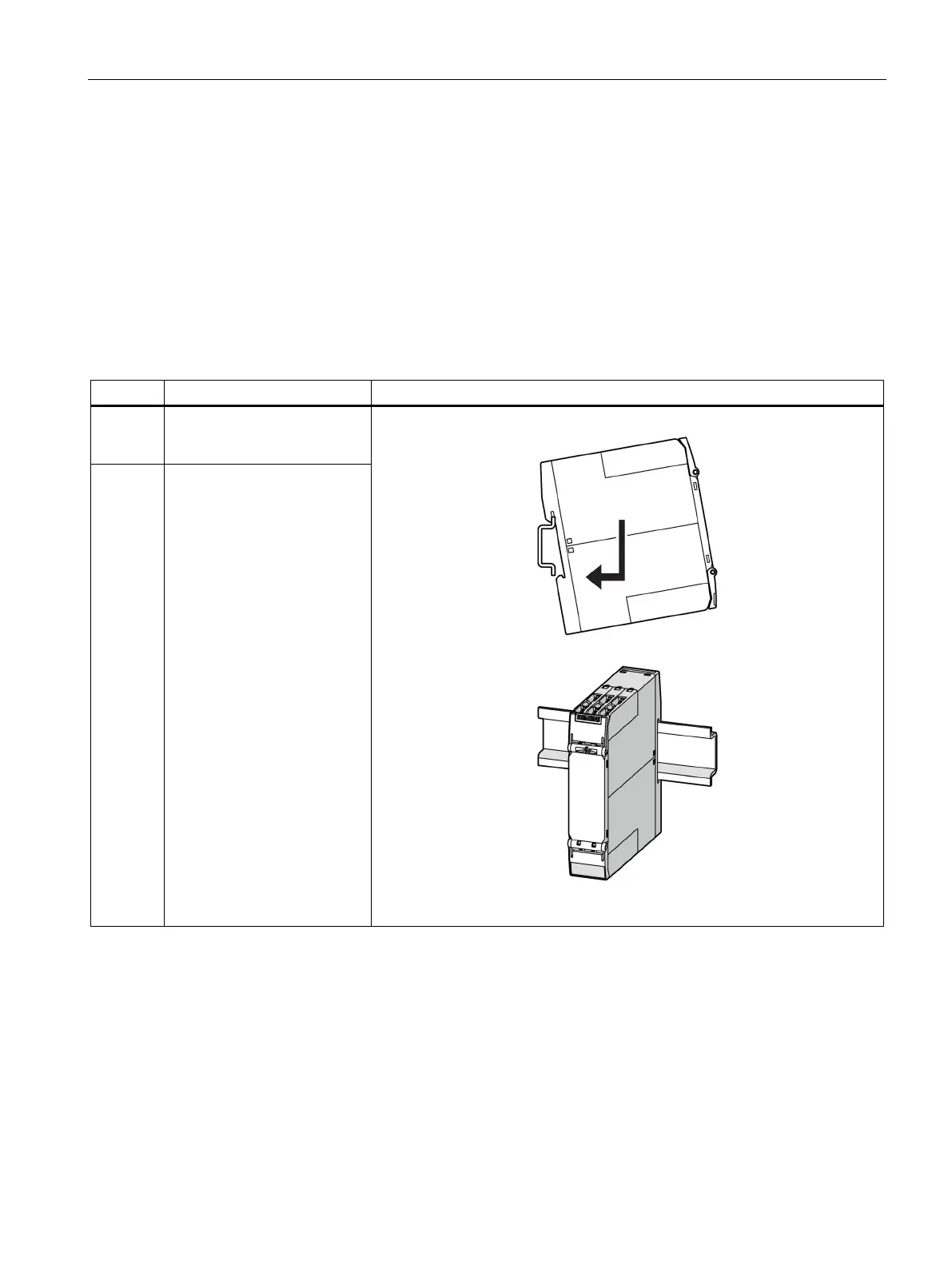

The figures show 22.5 mm devices. The 17.5 mm devices are mounted correspondingly.
1 Hang the back of the device
onto the upper edge of the
2 Press the lower half of the
device against the rail until the
device engages
