Connection
5.4 Connecting the screw-type terminals
3RP25 Time Relays
Manual, 09/2019, A5E31947765002A/RS-AC/003
39
5.4 Connecting the screw-type terminals
Hazardous voltage
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.
Requirements
● Cross-tip screwdriver size PZ 1 x 80.
● For suitable connection cross-sections of the cables, see the chapter "Connection data
for terminals (Page 38)".

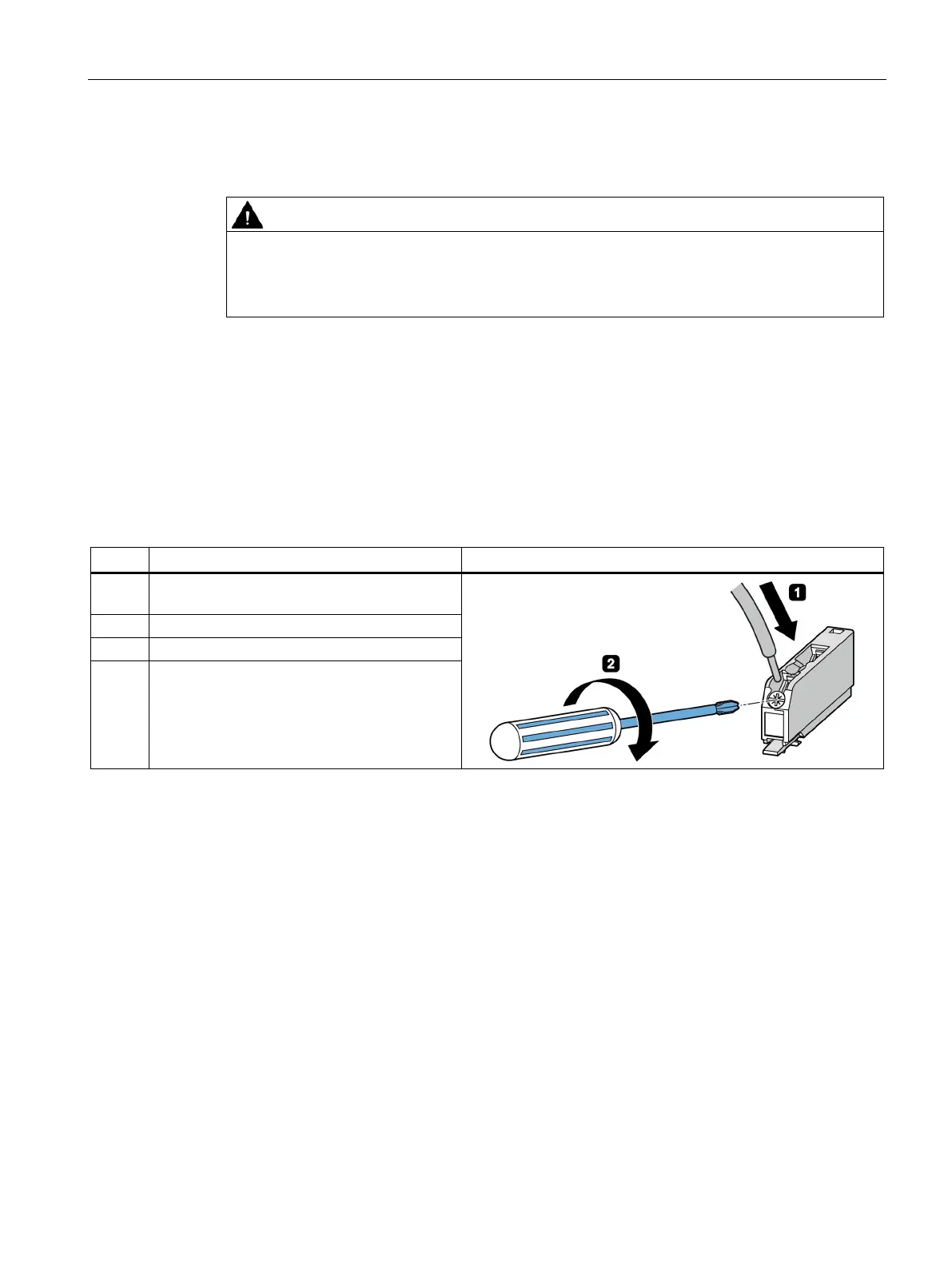

Procedure
1 Insert the relevant cable into square on the
screw-type terminal until it engages.
Hold the cable in the screw-type terminal.
Tighten the screw with a torque of 0.8 to 1.2 N.
4 Pull on the cable to ensure it is screwed tight.
