Connection
5.2 Position of the connecting terminals
3RP25 Time Relays
Manual, 09/2019, A5E31947765002A/RS-AC/003
35
5.2 Position of the connecting terminals
Note
The terminals A2 are connected internally. This means A2 can simply be looped on from
device to device.

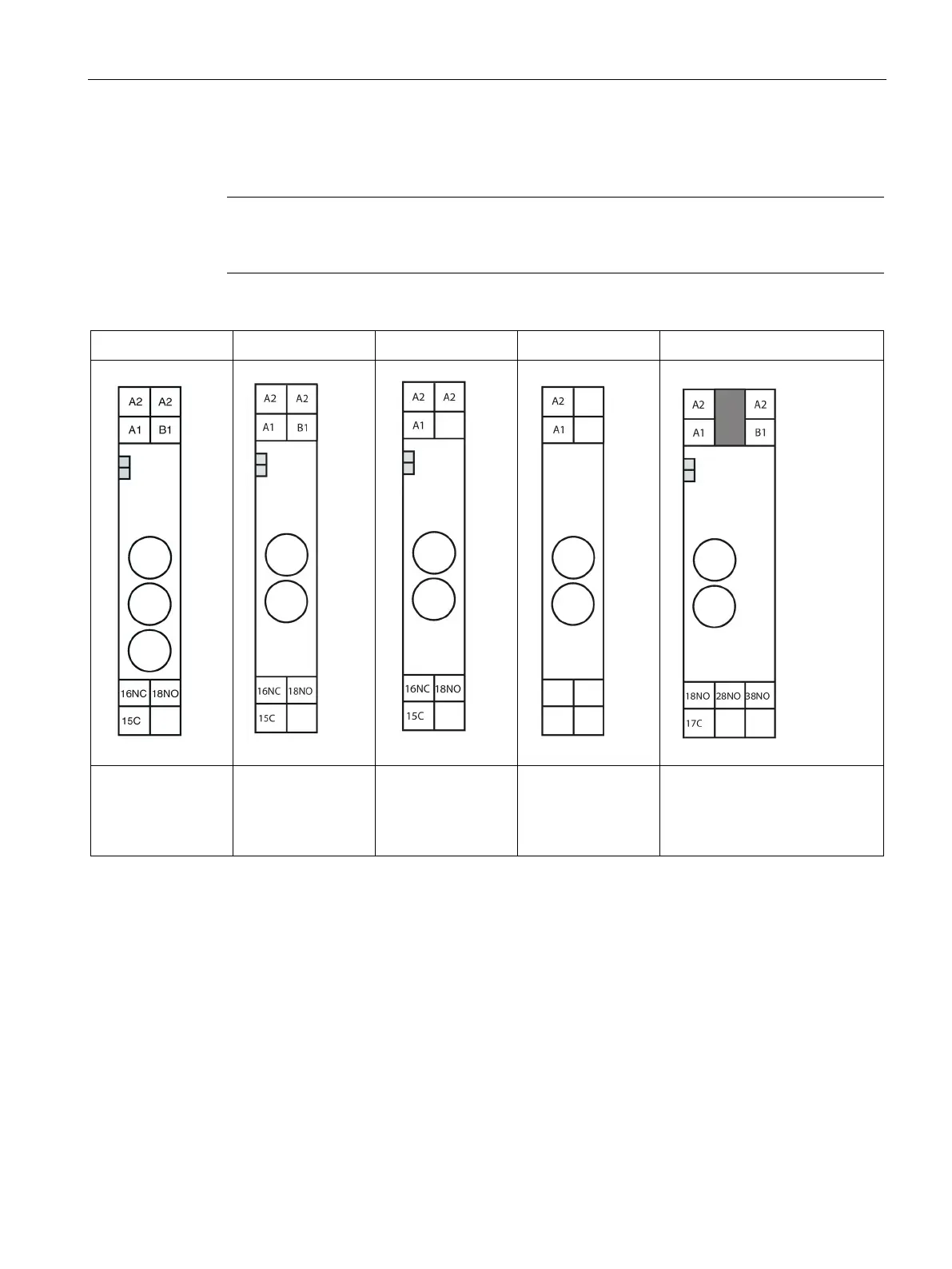

3RP2505 - .AB30
3RP2505 - .AW30
3RP2535 - .AW30 3RP2511 - .AW30
3RP2512 - .AW30
3RP2513 - .AW30
3RP2527 - .EW30 3RP2560 - .SW30
To Next Page
