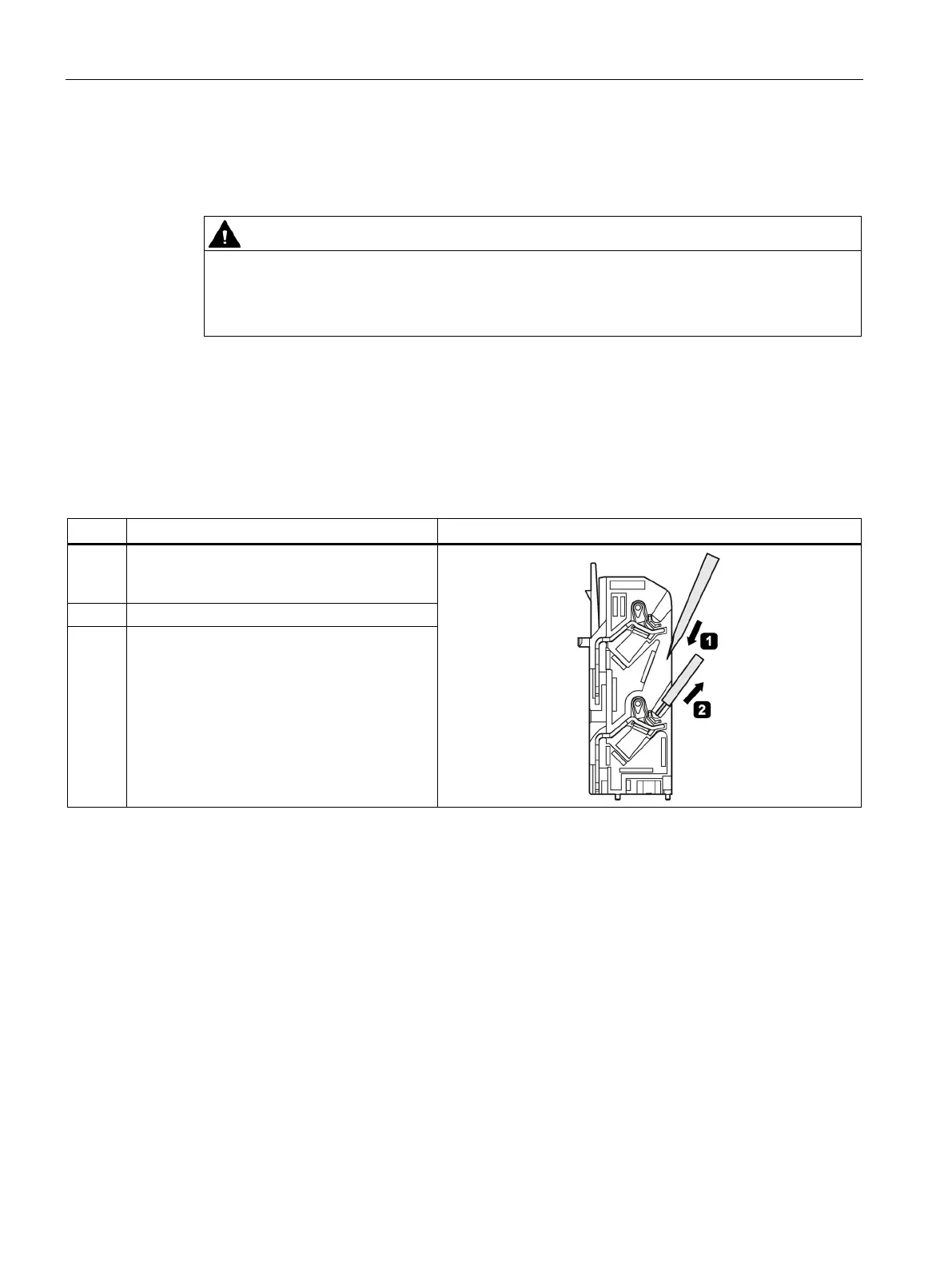

5.8 Disconnect the spring-loaded terminal (push-in)
3RP25 Time Relays
44 Manual, 09/2019, A5E31947765002A/RS-AC/003
5.8 Disconnect the spring-loaded terminal (push-in)
Hazardous voltage
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.
Requirements
● Screwdriver DIN 5264 of the size 0.5 x 3 mm
Procedure
1 Insert the screwdriver into the rectangular
opening of the spring-loaded terminal until it
Remove the cable from the oval opening.
3 Remove the screwdriver.
