5.9 Attaching the terminals
3RP25 Time Relays
Manual, 09/2019, A5E31947765002A/RS-AC/003
45
5.9 Attaching the terminals
Hazardous voltage
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.
Requirements
You must have removed the terminals, for the purpose of replacing a device, for example.

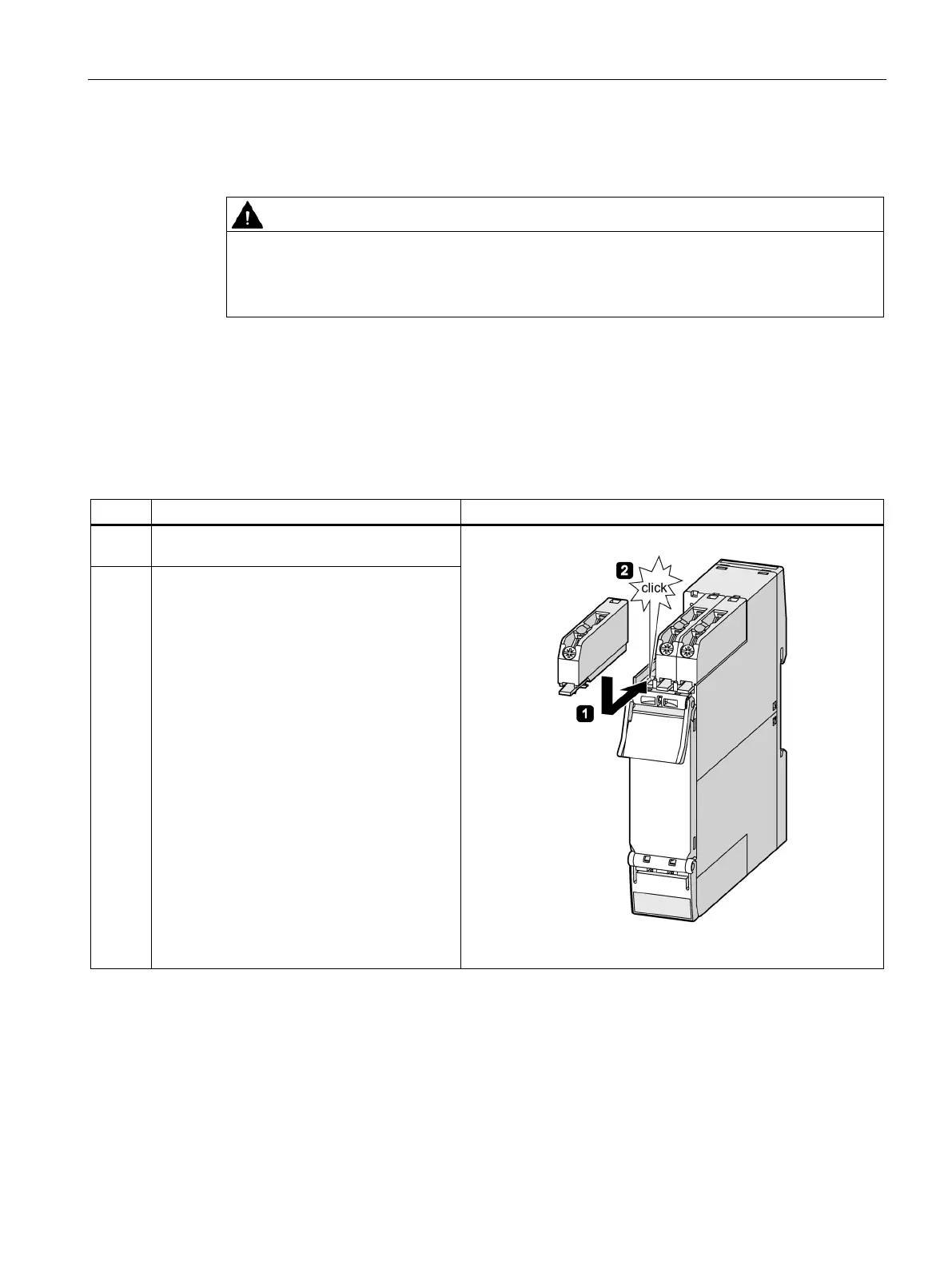

Procedure when plugging in the terminals
1 Insert the detachable terminals into the guide
2 Slide the detachable terminals back until they
audibly engage.
