Mounting
4.8 Attaching set of labels (multifunction)
3RP25 Time Relays
30 Manual, 09/2019, A5E31947765002A/RS-AC/003
4.8 Attaching set of labels (multifunction)
A set of stickers is available for labeling the functions set on the 3RP2505 solid-state time
relay, multifunction unit, depending on the version (with 1 CO contact, 13 functions, with 1
NO contact/semiconductor output, 13 functions, with 2 CO contacts, 27 functions).

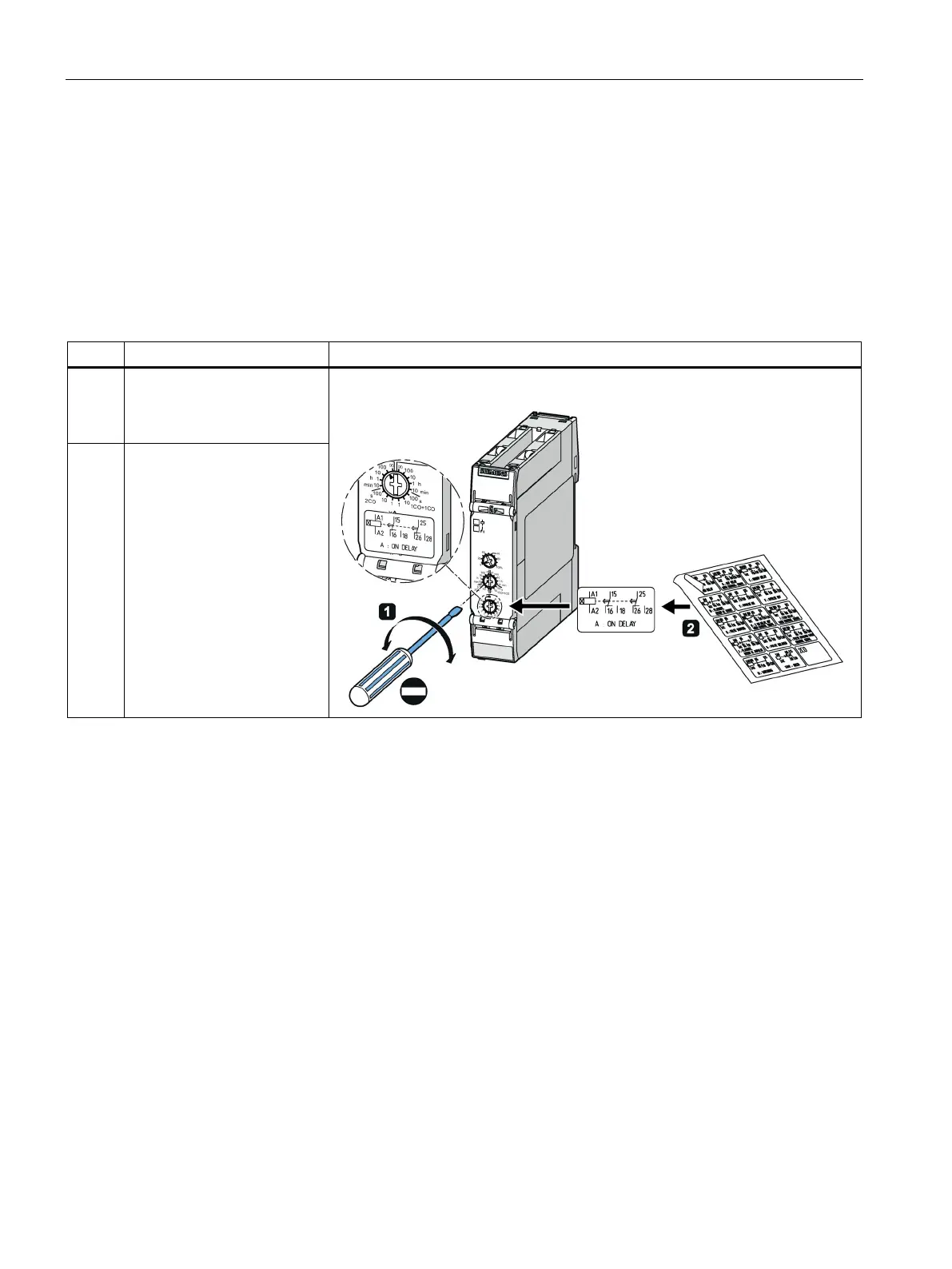

Attaching the set of stickers (only for multifunctionality)
1 Set the desired function on
the time range and function
selector switch using a
2 Take the corresponding
sticker for labeling the
function from the set of
stickers, and stick it directly
above the function selector
switch (A-M). Function, see
Function table multifunction
(3RP2505) (Page 69)
