6.5 Flasher relay asymmetrical (clock generator)
3RP25 Time Relays
58 Manual, 09/2019, A5E31947765002A/RS-AC/003
6.5 Flasher relay asymmetrical (clock generator)
3RP2555 time relay with control signal
The time relay contains 1 CO contact.
The interval and the pulse time of the clock generator and time ranges can each be
adjustable separately. The clock pulse function starts with the interval.
7 time ranges can be set with the time range selector switch:
● 0.05 s - 1 s
● 0.5 s - 10 s
● 5 s - 100 s
● 0.5 min - 10 min
● 0.05 h - 1 h
● 0.5 h - 10 h
● 5 h - 100 h
Note
The desired operating time is set precisely with the operating time adjustment switch.
Note
Changes to the time range (time range and operating time) only take effect if made in the
deenergized
state.

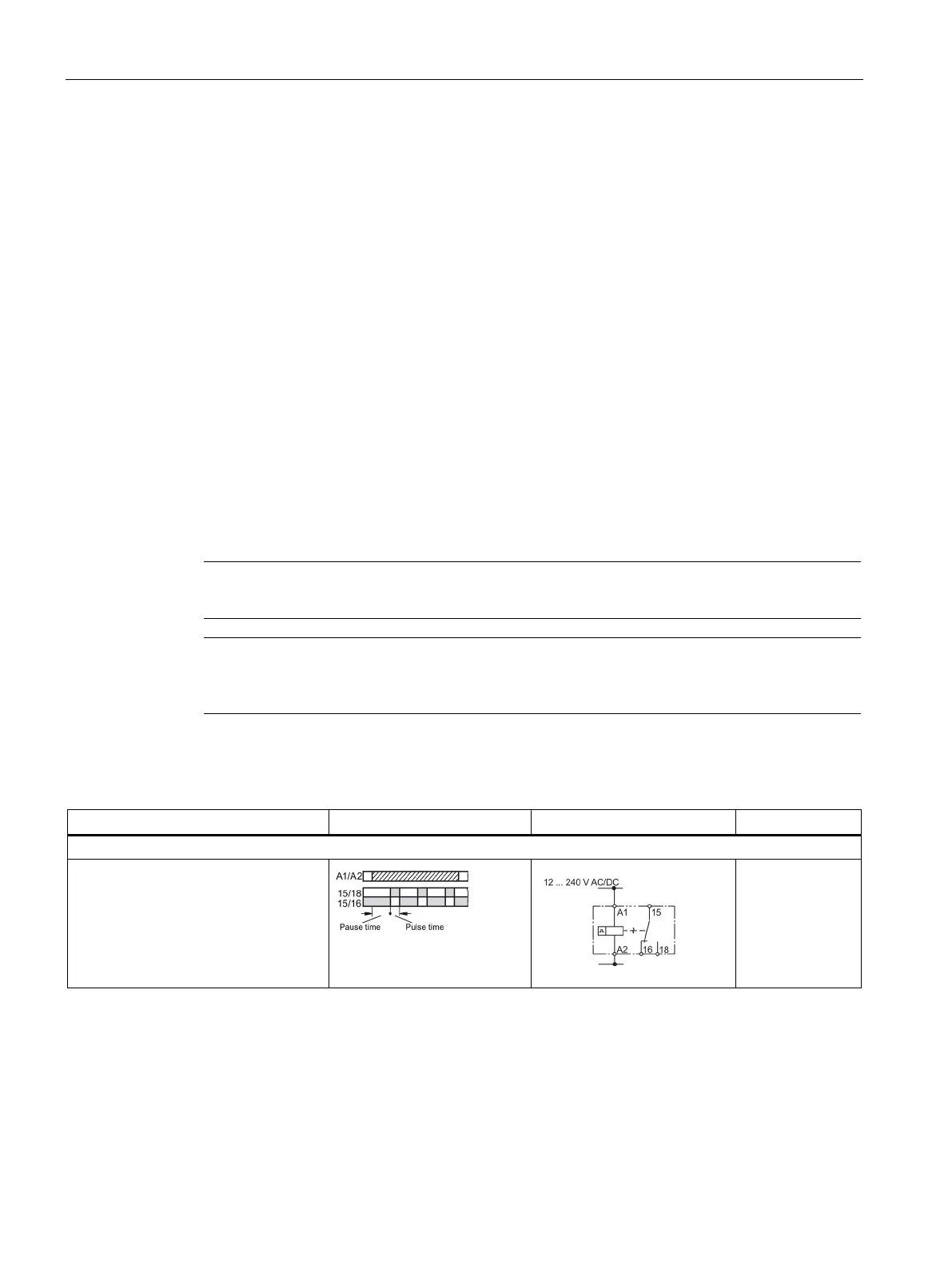

Function table
Flasher relay asymmetrical, starting
with interval (interval, pulse time, and
time ranges each separately
adjustable)
3RP2555-1AW30
3RP2555-2AW30
