Connection
5.7 Connect the spring-loaded terminal (push-in)
3RP25 Time Relays
42 Manual, 09/2019, A5E31947765002A/RS-AC/003
5.7 Connect the spring-loaded terminal (push-in)
Hazardous voltage
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.
The spring-type (push-in) terminals allow wiring without tools for rigid conductors or
conductors equipped with end sleeves.
For wiring finely stranded or stranded conductors without end sleeves on spring-type
(push-in) terminals, a screwdriver is required to open the spring-type terminals.
Requirements
● 0.5 x 3 mm screwdriver DIN 5264 (for finely-stranded conductors only).
● For suitable connection cross-sections of the cables, see the chapter "Connection data
for terminals (Page 38)".
Procedure

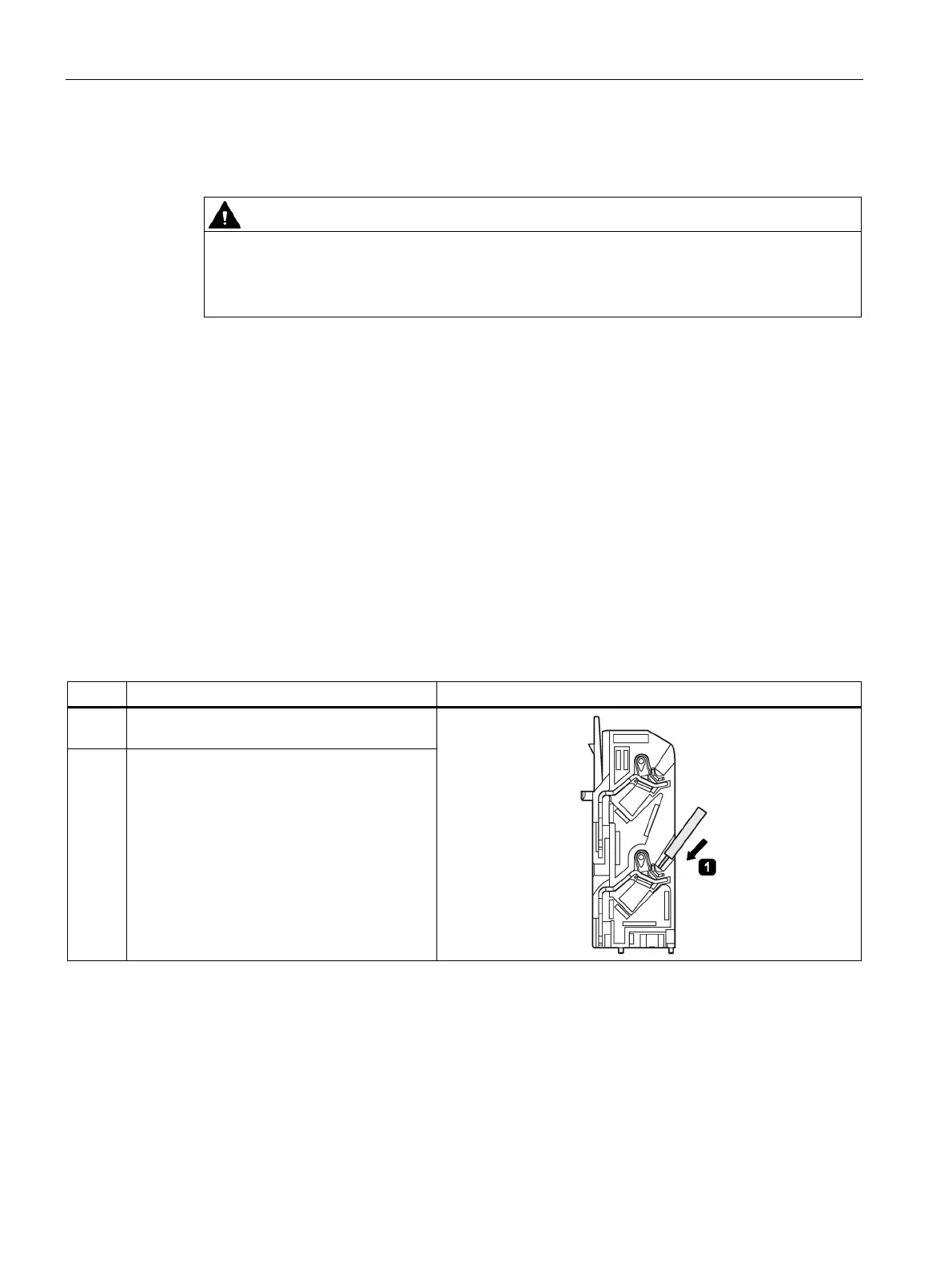

Table 5- 1 Rigid conductors or conductors equipped with end sleeves
1 Insert the cable into the oval opening as far as
2 Pull on the cable to ensure it is tight.
