6.3 ON-delay
3RP2511 / 3RP2512 / 3RP2513 time relay
The time relay contains 1 CO contact.
Each relay has a fixed time range:
● 0.5 s - 10 s (3RP2511)
● 1.5 s - 30 s (3RP2512)
● 5 s - 100 s (3RP2513)

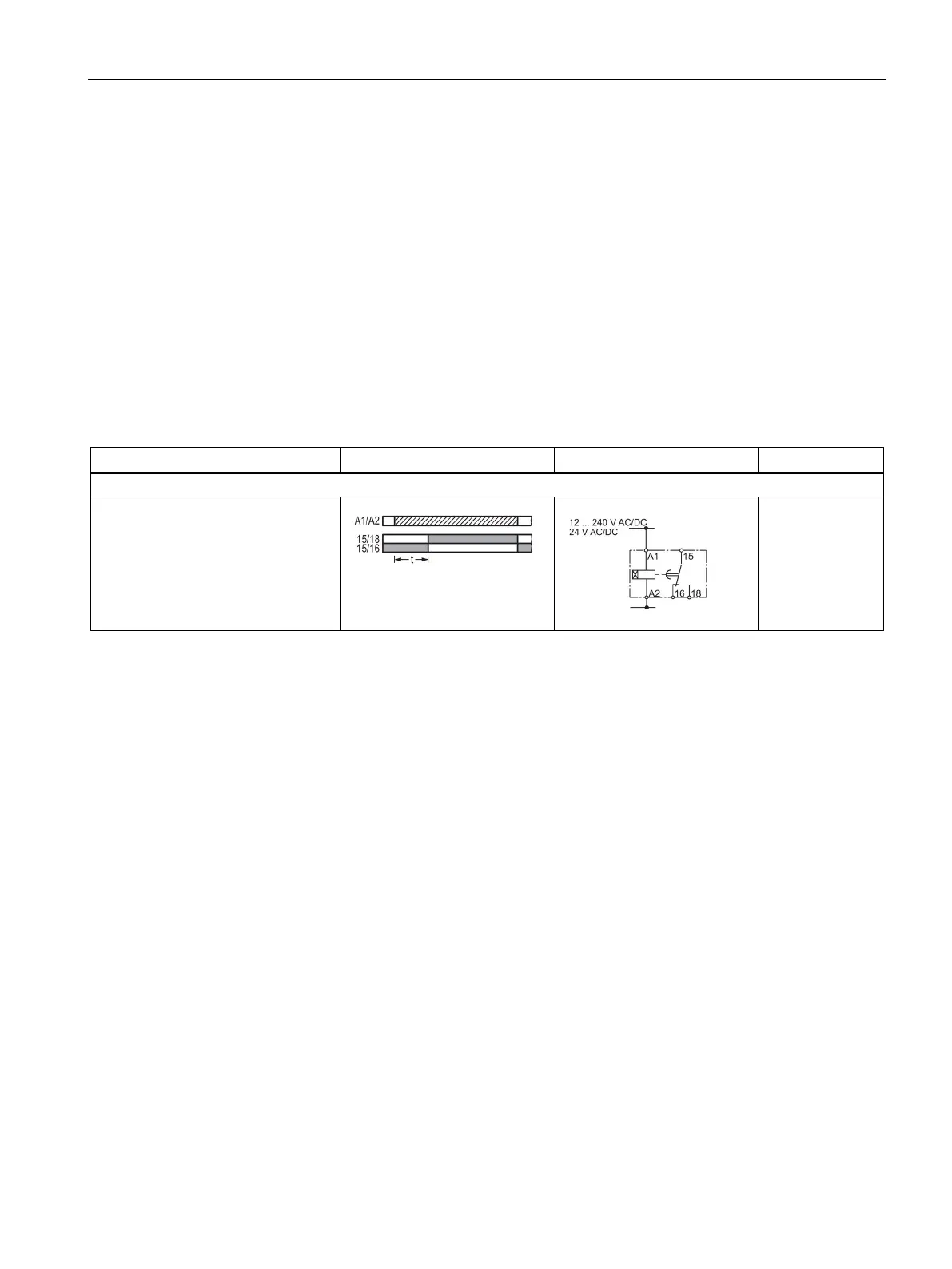

Function table
Function
Function chart
Circuit diagram
Time relay
1 CO contact
ON-delay
3RP2511-.AW30
3RP2512-.AW30
3RP2513-.AW30
