Siemens 3RP25

Multifunction units
7.3 Function table multifunction (3RP2505)
3RP25 Time Relays
Manual, 09/2019, A5E31947765002A/RS-AC/003
69

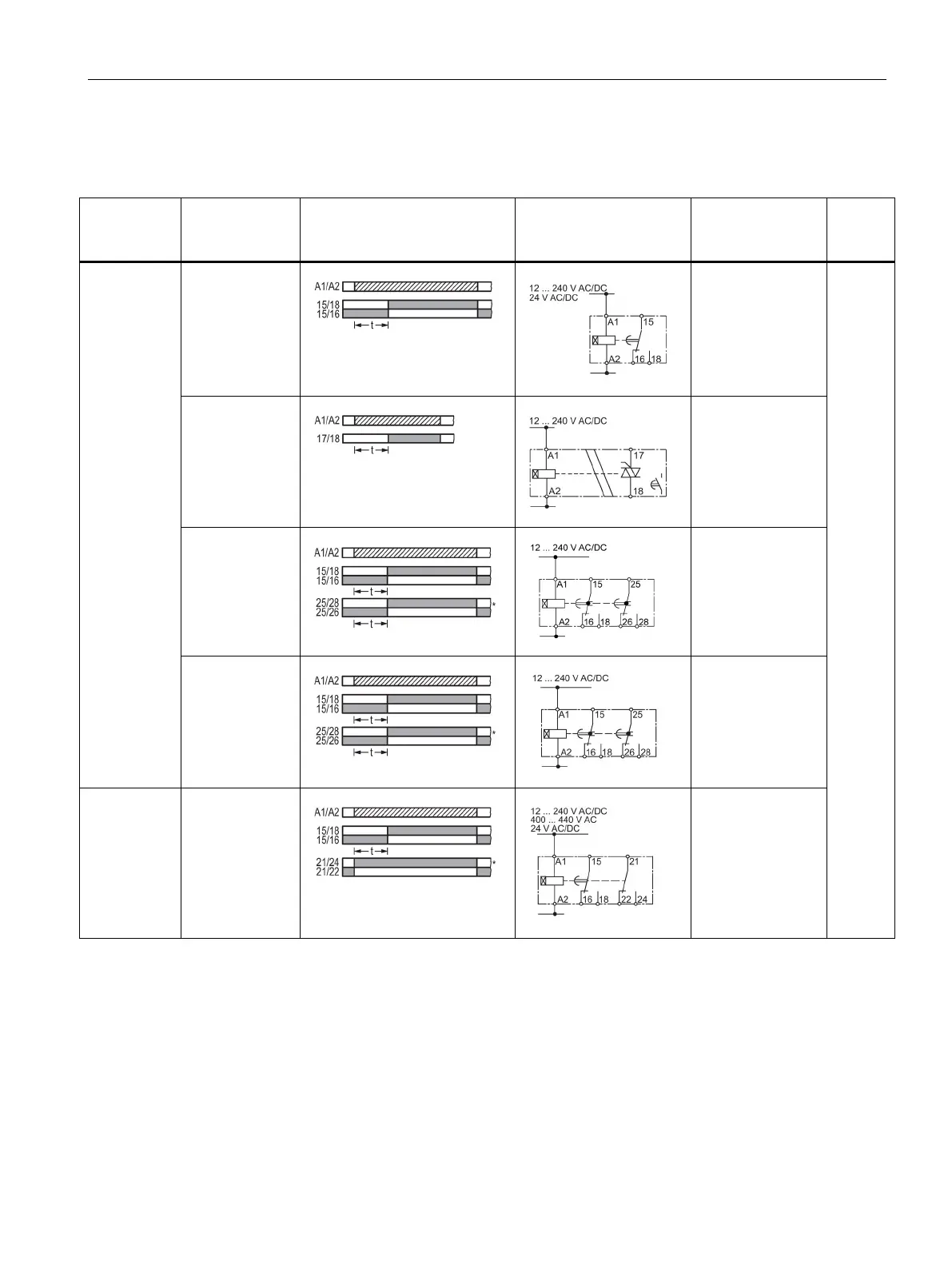

7.3 Function table multifunction (3RP2505)
Function
Output type
Function chart
Circuit diagram
Time relay
Identifi-
cation
letter
ON-delay 1 CO contact
3RP2505 - 1A.30
3RP2505 - 2A.30
A
1 NO contact /
semiconductor
3RP2505 - 1CW30
3RP2505 - 2CW30
1 relay, 2 CO
contacts,
positively driven
3RP2505 - 1RW30
3RP2505 - 2RW30
2 CO contacts
(2CO)
3RP2505 - 1B..0
3RP2505 - 2B..0
ON-delay and
instantaneous
contact
2 CO contacts
(1CO+1CO)
3RP2505 - 1B..0
3RP2505 - 2B..0
