Siemens 3RP25

Multifunction units

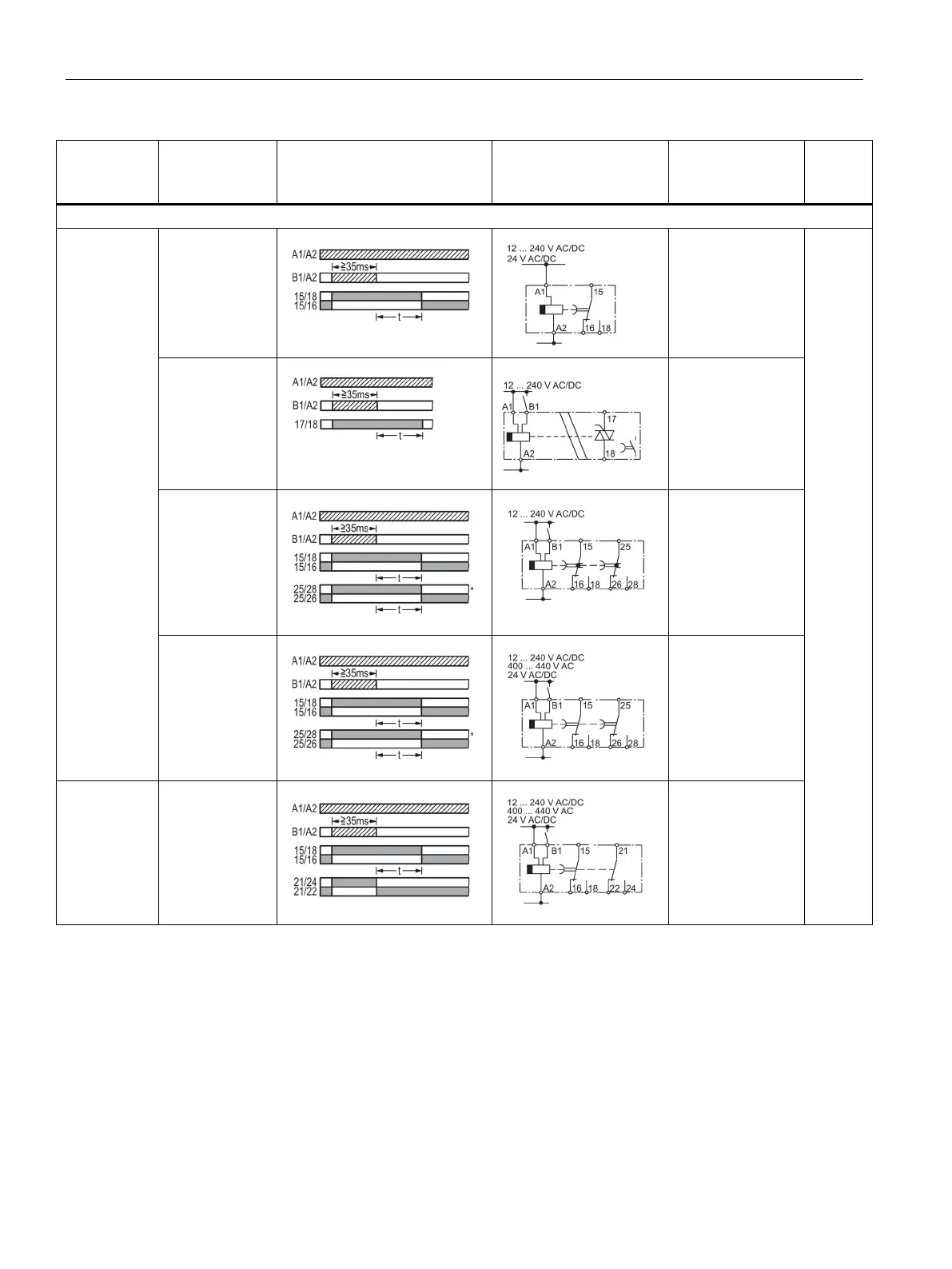

7.3 Function table multifunction (3RP2505)
3RP25 Time Relays
70 Manual, 09/2019, A5E31947765002A/RS-AC/003
Function
Output type
Function chart
Circuit diagram
Time relay
Identifi-
cation
letter
OFF-delay
with control
signal
1 CO contact
3RP2505 - 1A.30
3RP2505 - 2A.30
B
1 NO contact /
semiconductor
3RP2505 - 1CW30
3RP2505 - 2CW30
1 relay, 2 CO
contacts,
positively driven
3RP2505 - 1RW30
3RP2505 - 2RW30
2 CO contacts
(2CO)
3RP2505 - 1B..0
3RP2505 - 2B..0
OFF-delay
with control
signal and
instantaneous
contact
2 CO contacts
(1CO+1CO)
3RP2505 - 1B..0
3RP2505 - 2B..0
