4.6 Disassembling the devices from a level surface
3RP25 Time Relays
28 Manual, 09/2019, A5E31947765002A/RS-AC/003
4.6 Disassembling the devices from a level surface
WARNING
Hazardous Voltage
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.
Requirements
● The terminals have been removed or disconnected.
Procedure
Step
Instructions

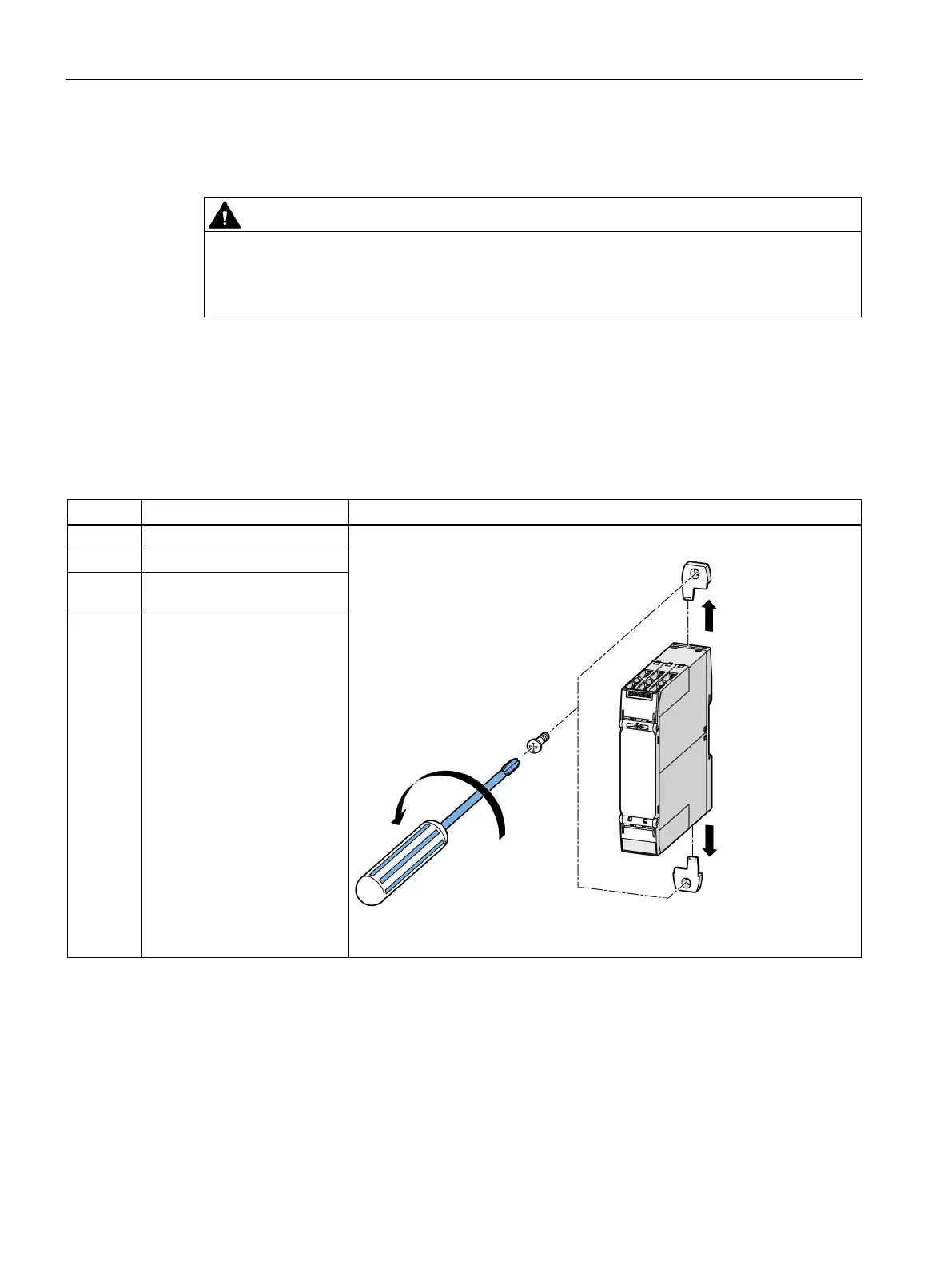

Figure
1
Hold the device firmly.
2
Unscrew the cap screws.
3 Lift the device from the level
surface.
4 Remove the securing brackets
from the device.
