Mounting

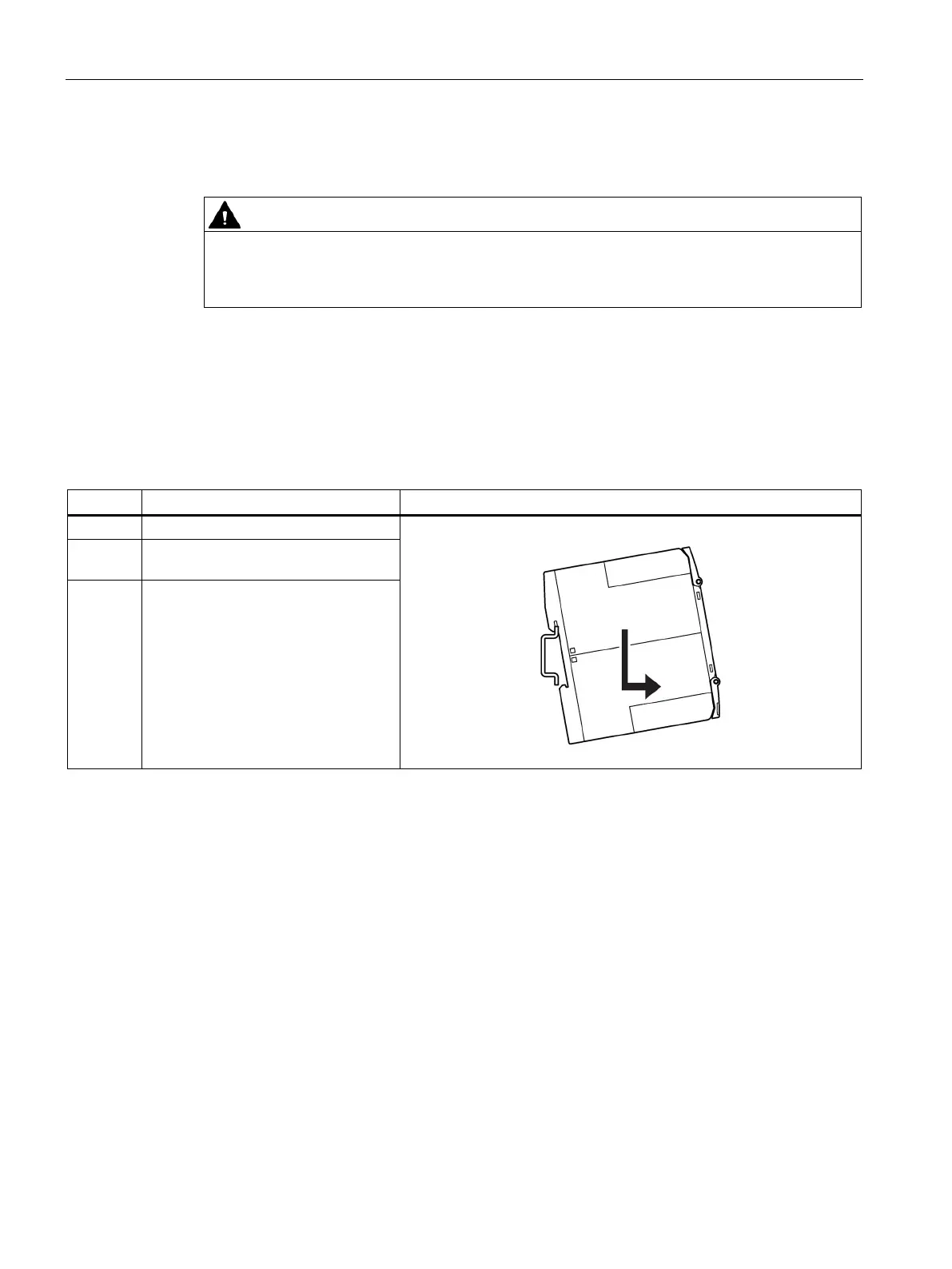

4.4 Removing devices from a standard mounting rail
3RP25 Time Relays
26 Manual, 09/2019, A5E31947765002A/RS-AC/003
4.4 Removing devices from a standard mounting rail
Hazardous Voltage
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.
Requirements
● The terminals have been removed or disconnected.
Procedure
Press the device downwards.
2 Pull the lower half of the device away
from the standard mounting rail.
3 Lift the device from the upper edge of
the standard mounting rail.
