5.10 Removing the terminals
3RP25 Time Relays
46 Manual, 09/2019, A5E31947765002A/RS-AC/003
5.10 Removing the terminals
Hazardous voltage
Can Cause Death, Serious Injury, or Property Damage.
Before starting work, therefore, disconnect the system and devices from the power supply.

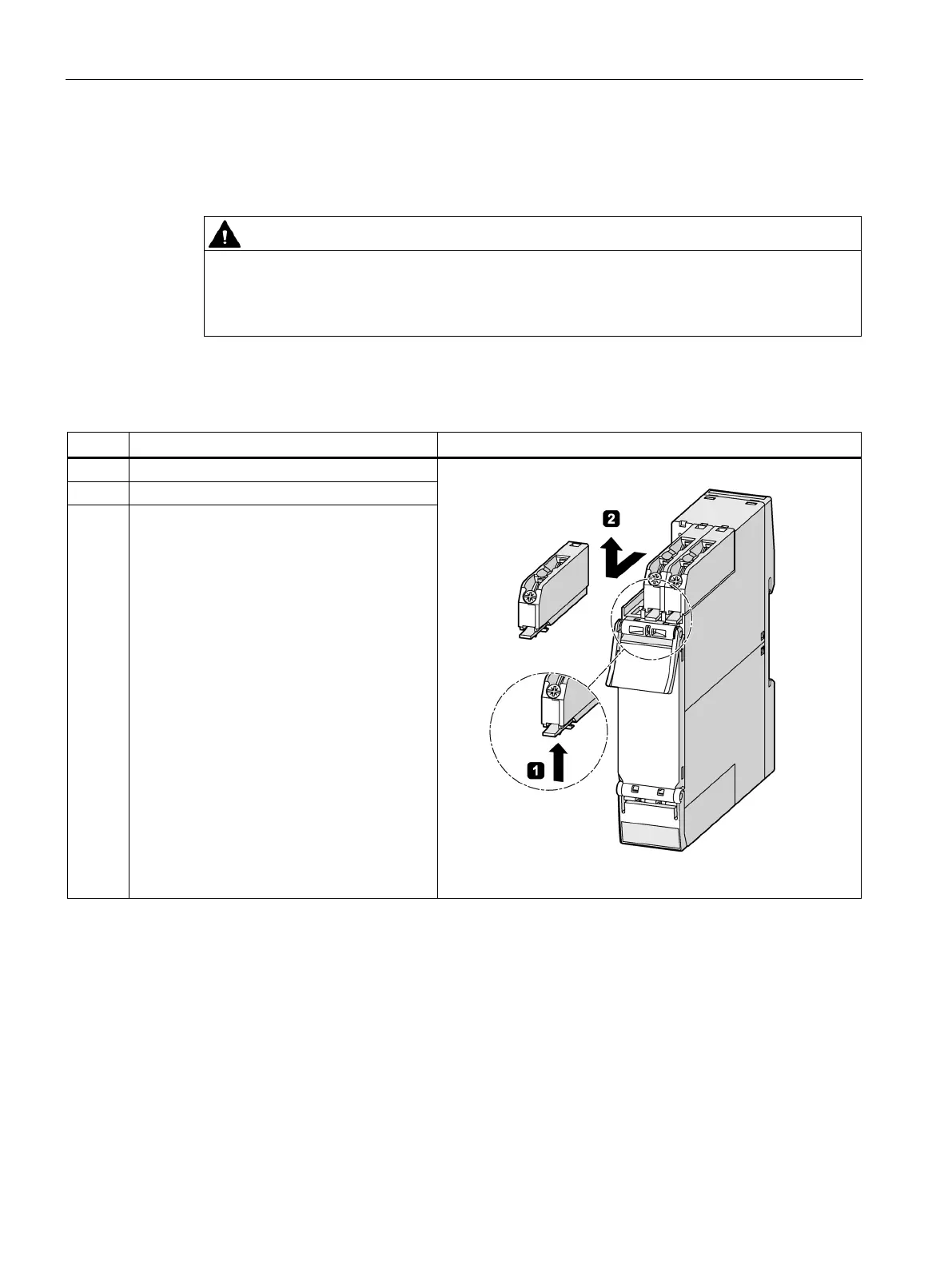

Removing terminals from the device
Press the clip of the terminals upwards.
Pull the terminals out to the front.
3 Lift the terminals out of the guide rail of the
device.
