Connection
5.10 Removing the terminals
3RP25 Time Relays
Manual, 09/2019, A5E31947765002A/RS-AC/003
47

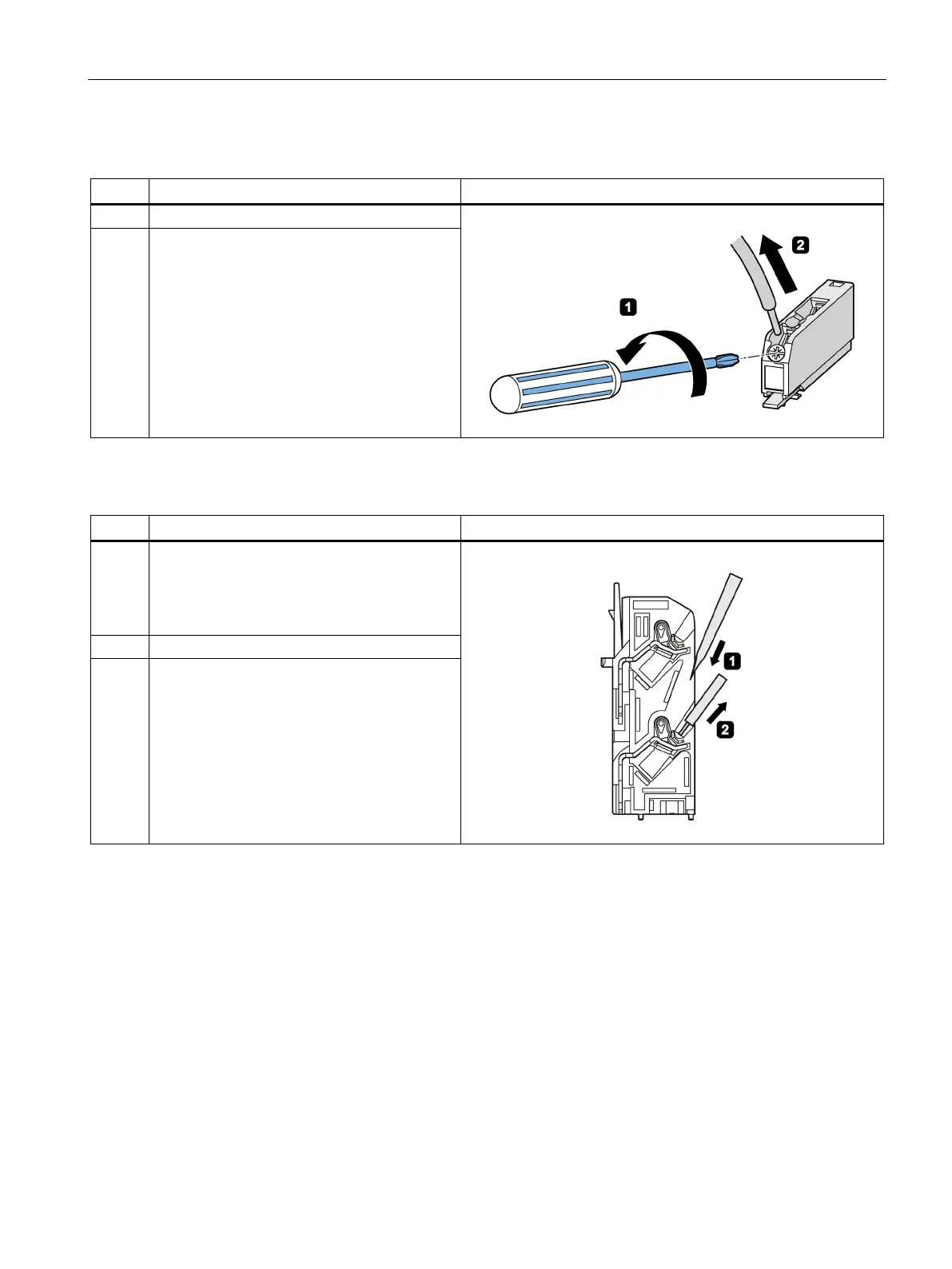

Screw terminals: Disconnecting the conductor
Unscrew the screw of the screw-type terminal.
2 Remove the cable from the unscrewed
screw-type terminal.
Spring-loaded terminal (push-in): Disconnecting the conductor
1 Insert the screwdriver into the rectangular
opening of the push-in terminal until it
engages. Please observe a 10° horizontal
angular deviation of the screwdriver to the oval
Remove the cable from the oval opening.
3 Remove the screwdriver.
