Connection
5.7 Connect the spring-loaded terminal (push-in)
3RP25 Time Relays
Manual, 09/2019, A5E31947765002A/RS-AC/003
43
Table 5- 2 Finely stranded cables without end sleeve

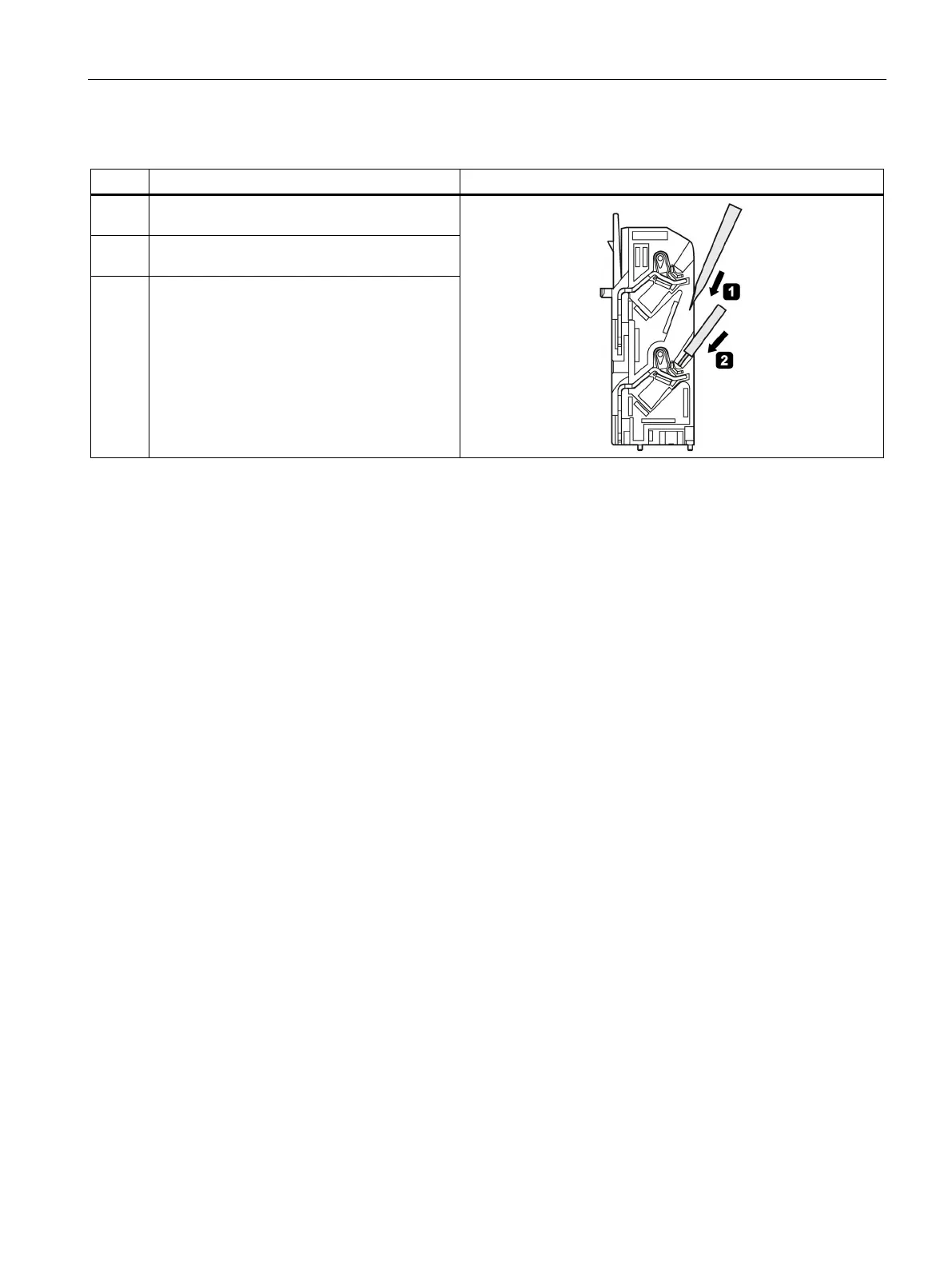

1 Insert the screwdriver in the rectangular
opening to open the terminal (oval opening).
2 Insert the cable as far as it will go into the oval
opening and remove the screwdriver.
3 Pull on the cable to ensure it is tight.
