Siemens 3RP25

Connection
5.1 Terminal assignment
3RP25 Time Relays
Manual, 09/2019, A5E31947765002A/RS-AC/003
33

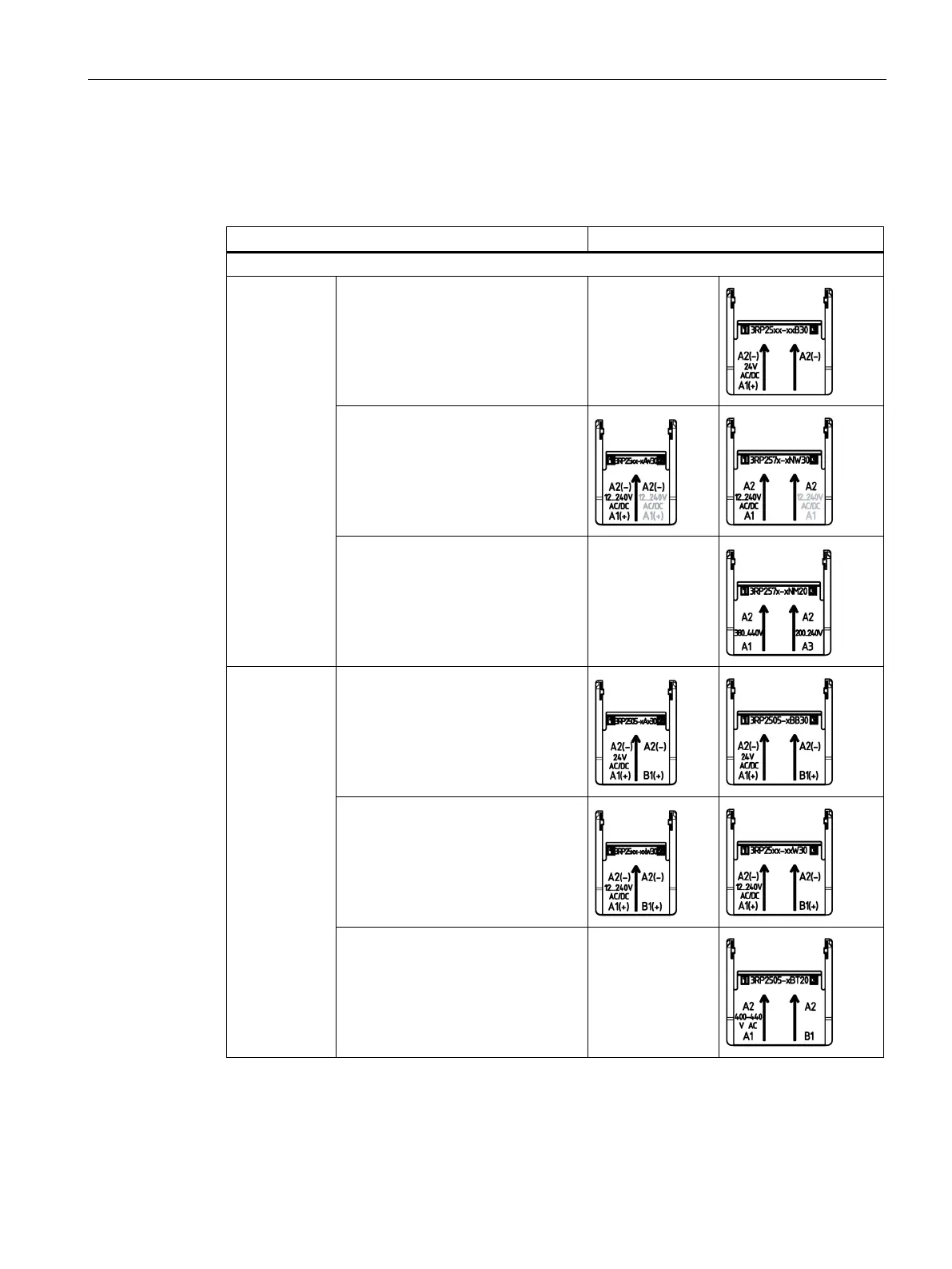

Terminal cover
Depending on the version of the 3RP25 time relay, the device will have the following
connections:
Time relay version
Inscription of the terminal cover
Control circuit/control circuit supply (at the top of the device)
Single function
•
24 V AC/DC
• (3RP25..-..B..)
•
12 ... 240 V AC/DC
• (3RP25..-...W...)
•
200 ... 240 V / 380 ... 440 V AC
• (3RP25..-..M..)
Multifunction
•
24 V AC/DC
• (3RP250.-..B..)
•
12 ... 240 V AC/DC
• (3RP250.-..W..)
•
400 to 440 V AC
• (3RP250.-..T..)
