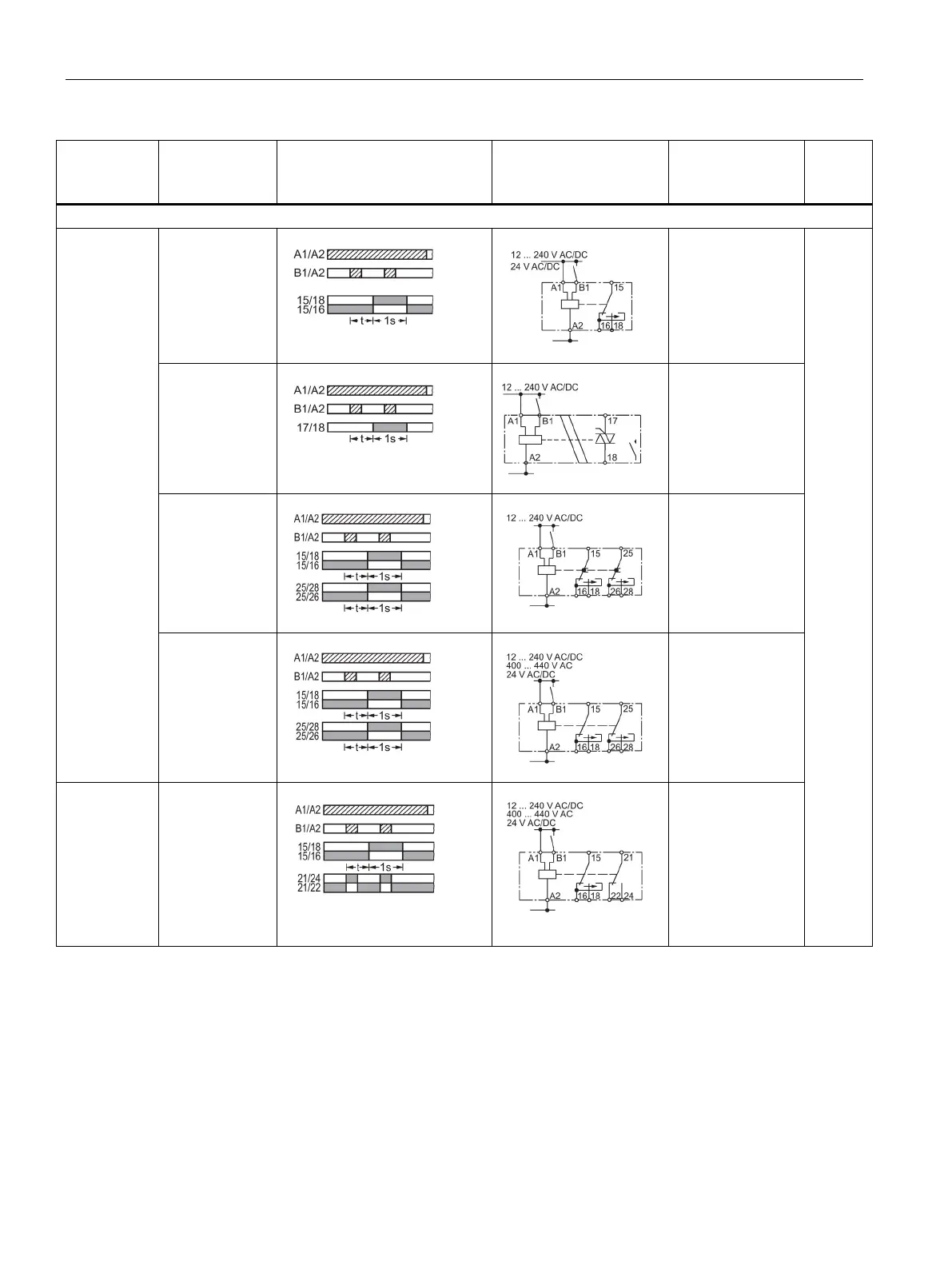

7.3 Function table multifunction (3RP2505)
3RP25 Time Relays
80 Manual, 09/2019, A5E31947765002A/RS-AC/003
Function
Output type
Function chart
Circuit diagram
Time relay
Identifi-
cation
letter
Pulse-delay
relay with
control signal
(fixed pulse
(1 s) and
settable pulse
delay)
1 CO contact
3RP2505 - 1A.30
3RP2505 - 2A.30
L
1 NO contact /
semiconductor
3RP2505 - 1CW30
3RP2505 - 2CW30
1 relay, 2 CO
contacts,
positively driven
3RP2505 - 1RW30
3RP2505 - 2RW30
2 CO contacts
(2CO)
3RP2505 - 1B..0
3RP2505 - 2B..0
Pulse-delay
relay with
control signal
(fixed pulse
and settable
pulse delay)
and
instantaneous
contact
2 CO contacts
(1CO+1CO)
3RP2505 - 1B..0
3RP2505 - 2B..0
