9.1 Dimension drawings 3RP25 devices
3RP25 Time Relays
Manual, 09/2019, A5E31947765002A/RS-AC/003
87

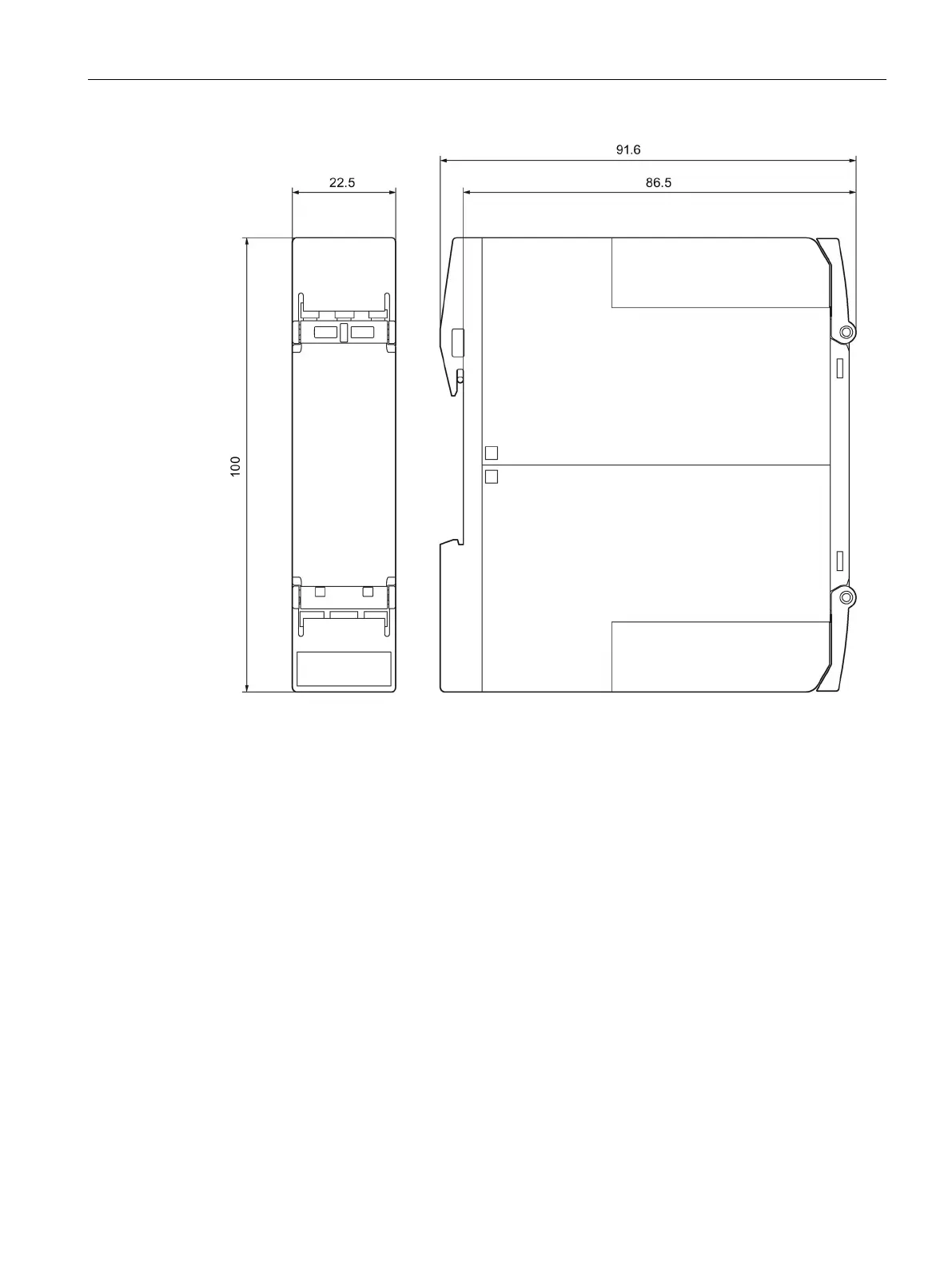

Enclosure 22.5 mm (short) for timing relay:
● 3RP2505 - .B.30
● 3RP2505 - .RW30
● 3RP2505 - .BT20
● 3RP2525 - .B.30
● 3RP2540 - .A .30
● 3RP2540 - .B.30
● 3RP2560 - .SW30
● 3RP257 . - .NW30
● 3RP257 . - .NM20
