Description of the individual safety relays
3.8 3TK28 safety relays with contactor relay enabling circuits
3TK28 safety relays
Manual, 07/2016, NEB926157502000/RS-AB/003
141

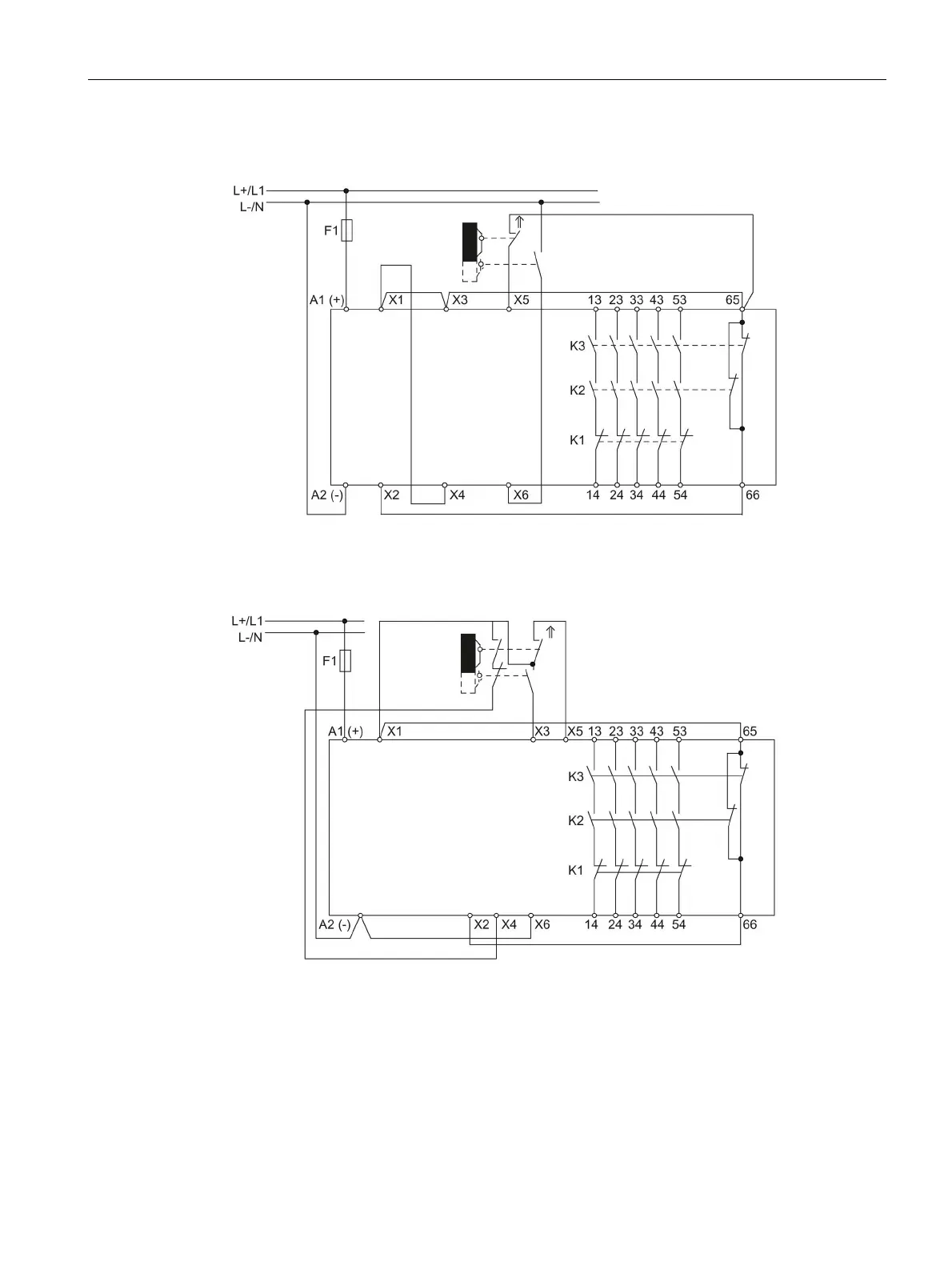

Connection examples 3TK2806
Figure 3-66 Autostart; protective door (2-channel)
Figure 3-67 Autostart; protective door (1-channel)
