Siemens 3TK28 - Dimension Drawings for 3 TK28; 3 TK28 Device Dimension Drawings

3TK28 safety relays
Manual, 07/2016, NEB926157502000/RS-AB/003
195
Dimension drawings
6
6.1
Dimension drawings 3TK28
All dimensions in mm

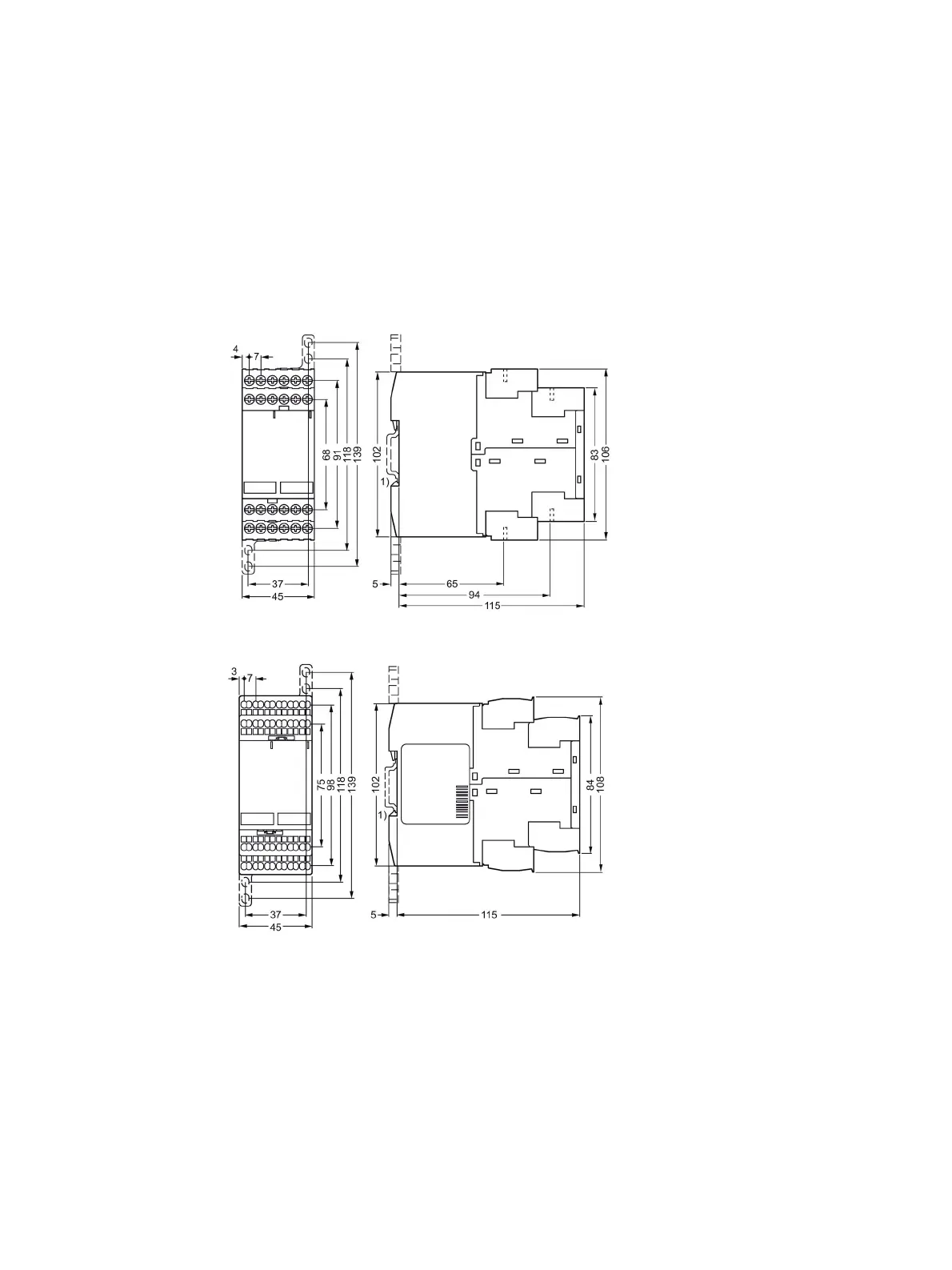

Figure 6-1 3TK2810/25/26/27/28/34/45 screw-type
Figure 6-2 3TK2810/25/26/27/28/34/45 spring-loaded
