Description of the individual safety relays
3.8 3TK28 safety relays with contactor relay enabling circuits
3TK28 safety relays
Manual, 07/2016, NEB926157502000/RS-AB/003
175
State diagrams 3TK2856 / 3TK2857
2)
For contact units, see Chapter: Terminal assignment (Page 173)

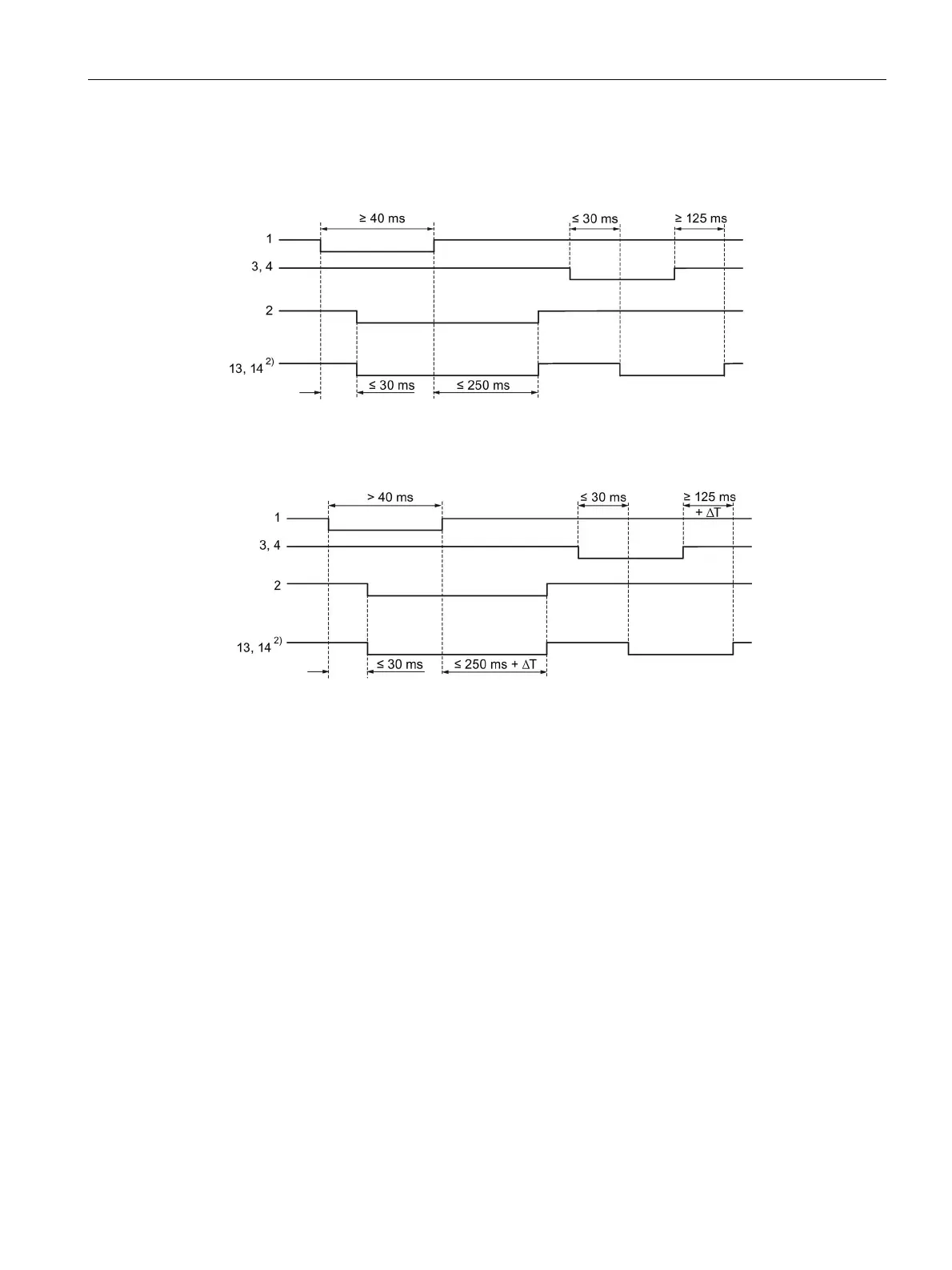

Figure 3-88 State diagram 3TK2856
Figure 3-89 State diagram 3TK2857
