Description of the individual safety relays
3.7 3TK28 safety relays with solid-state enabling circuits
3TK28 safety relays
Manual, 07/2016, NEB926157502000/RS-AB/003
133

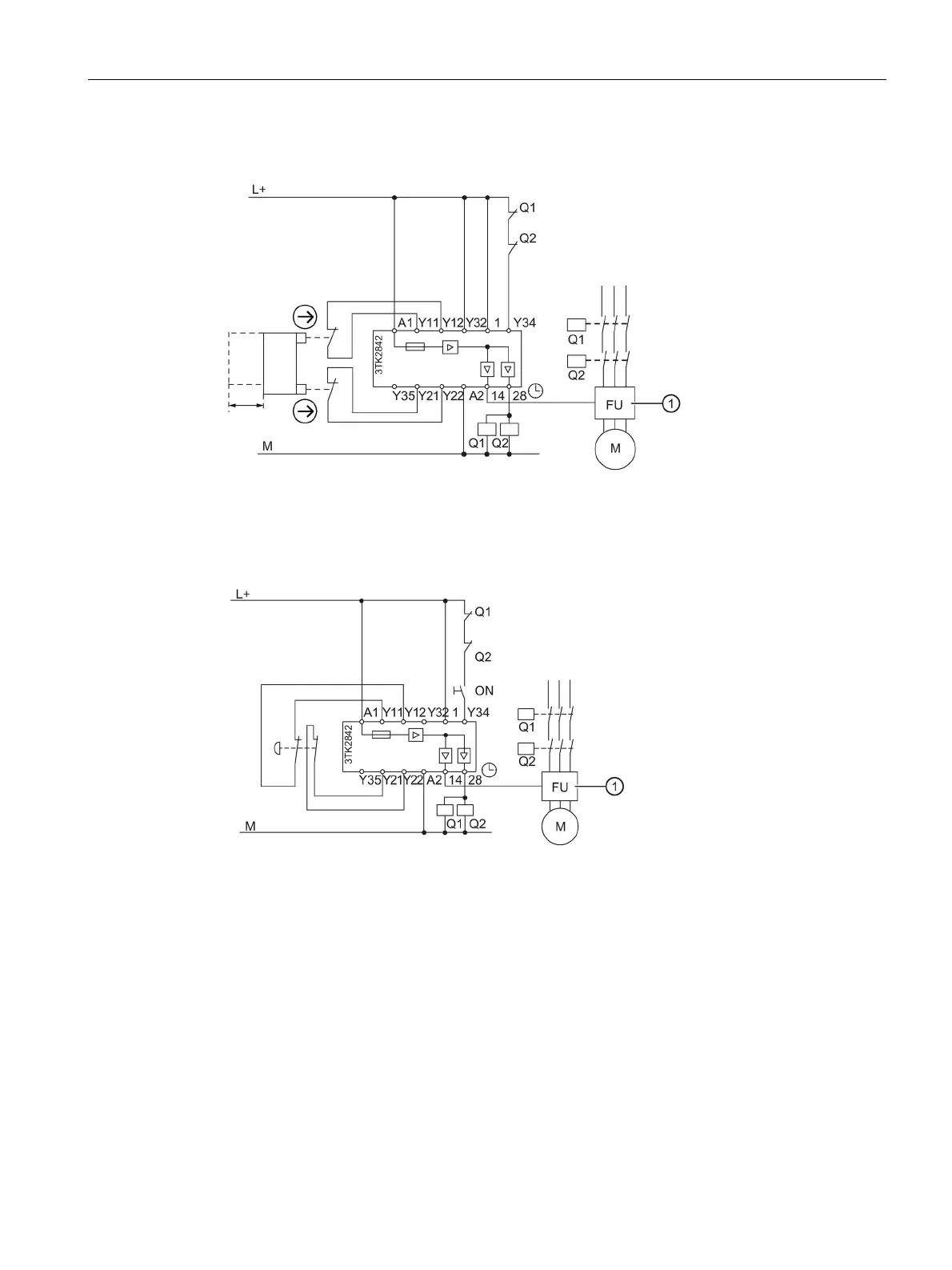

Connection examples 3TK2842
Figure 3-58 Protective door monitoring, autostart (2-channel)
Figure 3-59 EMERGENCY STOP, monitored start (2-channel)
