Description of the individual safety relays
3.6 3TK28 safety relays with relay enabling circuits
3TK28 safety relays
70 Manual, 07/2016, NEB926157502000/RS-AB/003

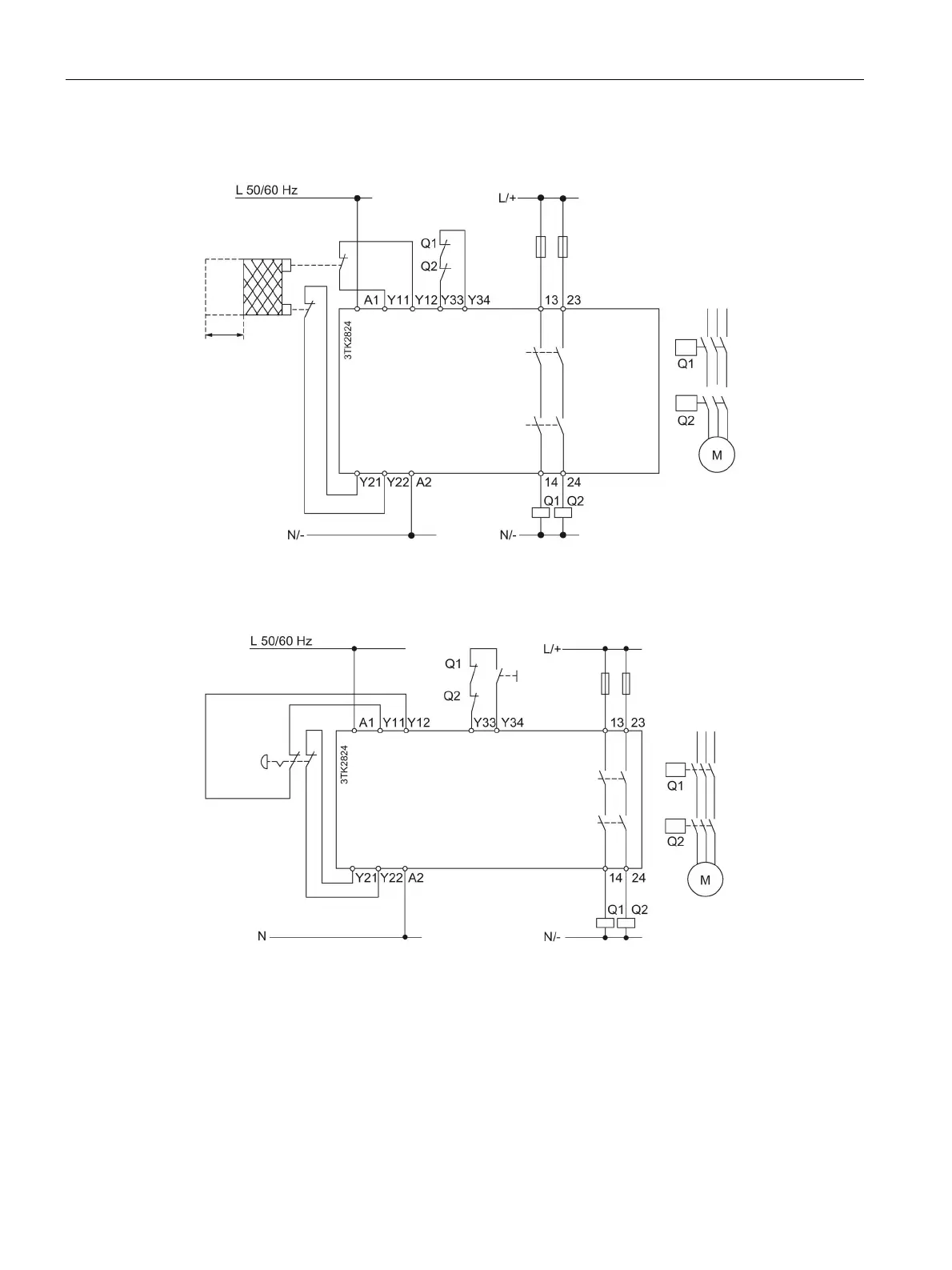

Connection examples 3TK2824-.A.20
Figure 3-21 Protective door monitoring autostart (2-channel)
Figure 3-22 EMERGENCY STOP (2-channel) with additional ON button
