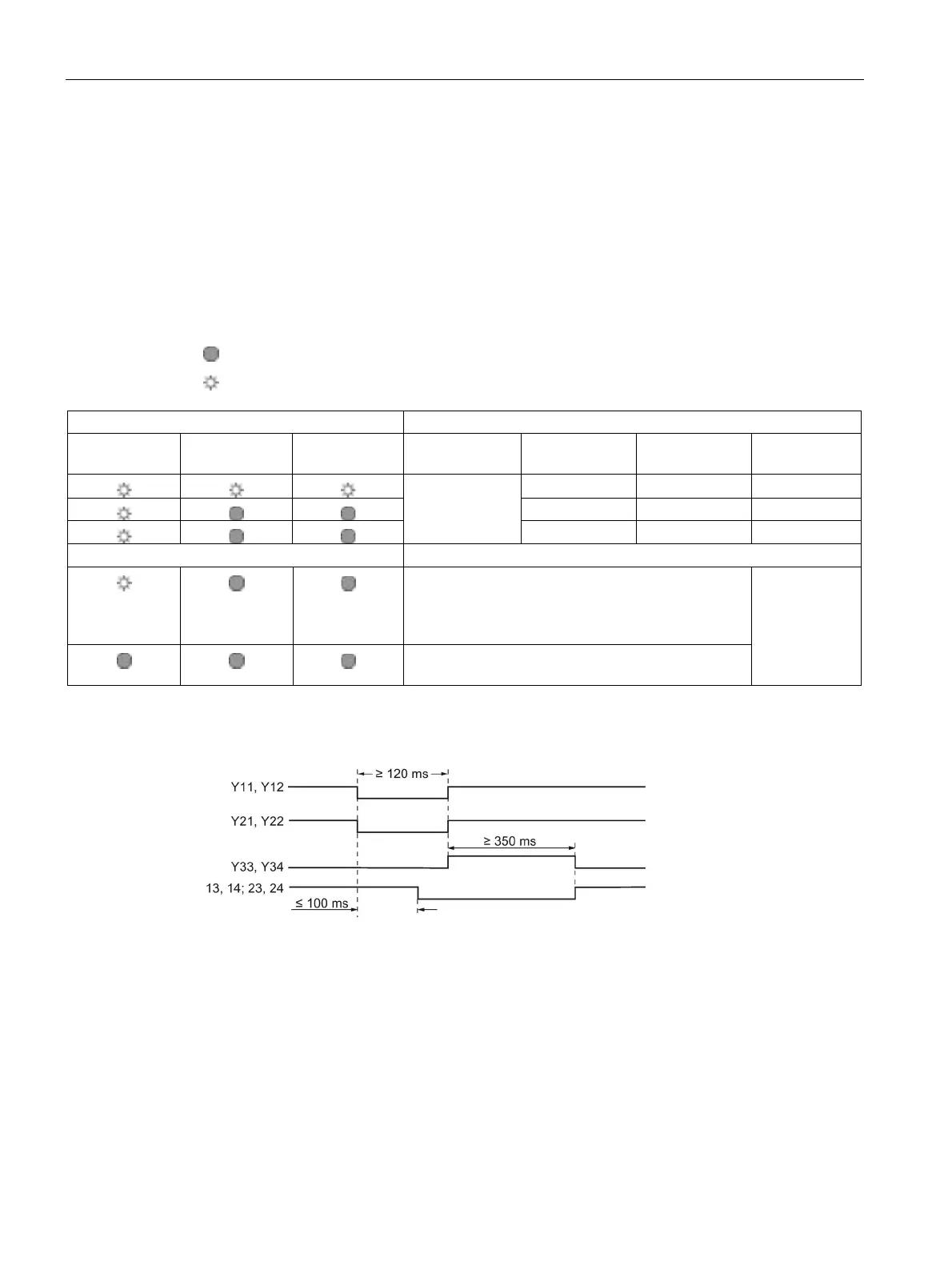

Display of the operating state
The operating state and functioning of the device are indicated by three LEDs:
● POWER
● CHANNEL 1
● CHANNEL 2
Operating states of 3TK2824-.A.20
= off
= on
LED
Operation
POWER CHANNEL 1 CHANNEL 2 Line supply EMERGENCY
STOP
ON Enabling circuit
On Not pressed Pressed Closed
Pressed
Not pressed
Open
Not pressed
Not pressed
Open
Fault
• Relay welded
• Motor contactor welded
• Fault in electronics
Open
Cross-circuit in EMERGENCY STOP circuit or no
supply voltage
3.6.5.6
State diagrams 3TK2824-.A.20
Figure 3-20 State diagram 3TK2824-.A.
