Description of the individual safety relays
3.8 3TK28 safety relays with contactor relay enabling circuits
3TK28 safety relays
170 Manual, 07/2016, NEB926157502000/RS-AB/003

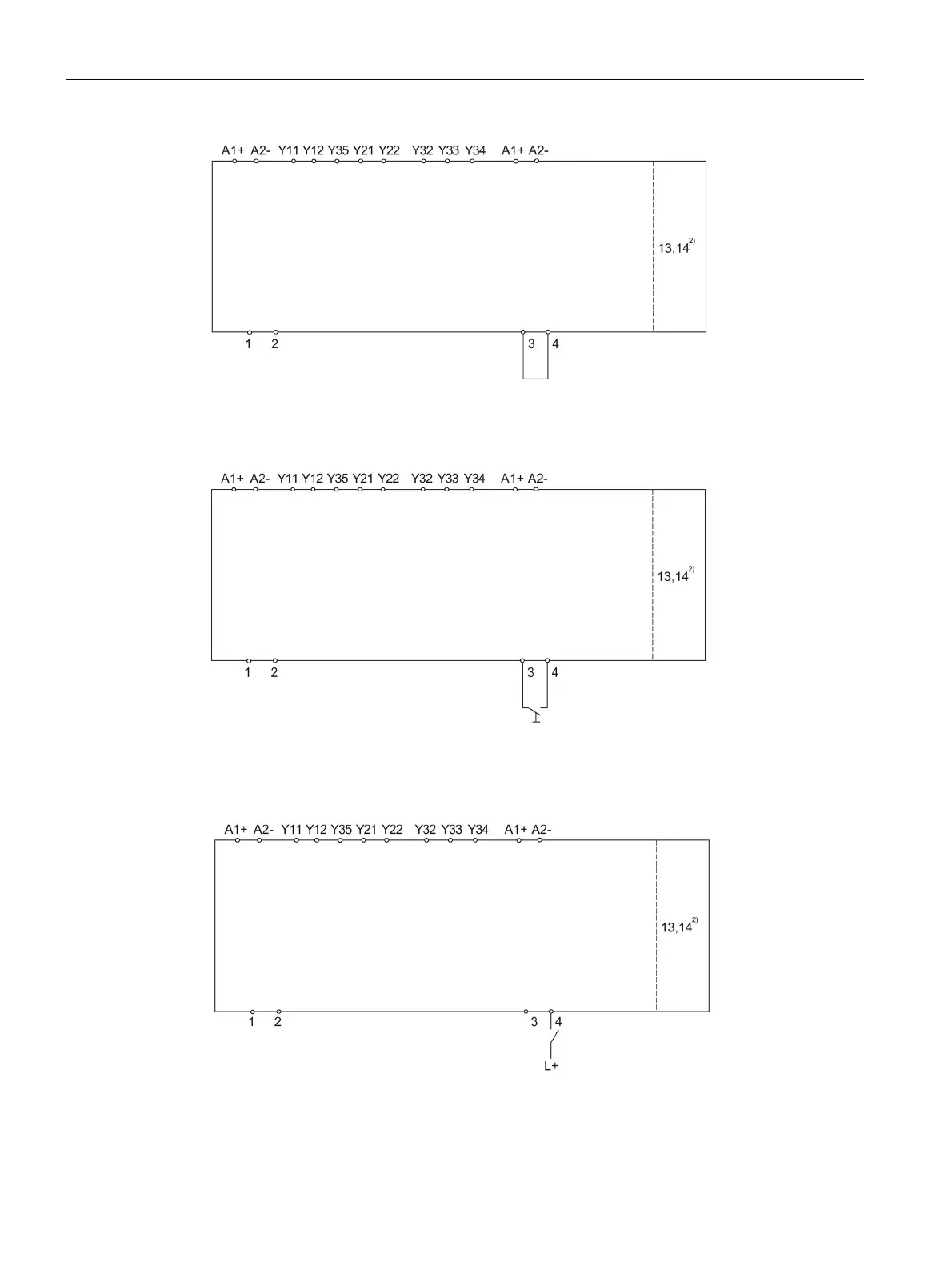

Figure 3-84 without functional operation
Figure 3-85 with isolated contact, functionally operated
Figure 3-86 with non-isolated contact, functionally operated
