Siemens 6EP4135-0GB00-0AY0

Engineering and remote access
3.5 Cyclic and acyclic data
SITOP UPS1600 / UPS1100
106 Manual, 04.2017, A5E37775406-8-76
Data
Description
Data type
Valid configuration Valid configuration: Indicates whether the software parameters or
the parameters at the rotary switches are used. The corresponding
setting should be made at the rotary switch for the buffer thresh-
old.
Unsigned8
Number of batteries Number of connected battery modules. Here, only the
SITOP UPS1100 battery modules (coded batteries) are counted.
Unsigned8
Fill byte(s)
-
7 x Unsigned8
Battery 1 change recommended Battery 1: Battery replacement recommended: The battery capaci-
ty is not sufficient for the defined buffer time.
Unsigned8
Battery 2 change recommended Battery 2: Battery replacement recommended: The battery capaci-
ty is not sufficient for the defined buffer time.
Unsigned8
Battery 3 change recommended Battery 3: Battery replacement recommended: The battery capaci-
ty is not sufficient for the defined buffer time.
Unsigned8
Battery 4 change recommended Battery 4: Battery replacement recommended: The battery capaci-
ty is not sufficient for the defined buffer time.
Unsigned8
Battery 5 change recommended Battery 5: Battery replacement recommended: The battery capaci-
ty is not sufficient for the defined buffer time.
Unsigned8
Battery 6 change recommended Battery 6: Battery replacement recommended: The battery capaci-
ty is not sufficient for the defined buffer time.
Unsigned8
Battery 1 Connection Fault
Battery1: Connection fault
Unsigned8
Battery 2 Connection Fault
Battery 2: Connection fault
Unsigned8
Battery 3 Connection Fault
Battery 3: Connection fault
Unsigned8
Battery 4 Connection Fault Battery 4: Connection fault Unsigned8
Battery 5 Connection Fault
Battery 5: Connection fault
Unsigned8
Battery 6 Connection Fault Battery 6: Connection fault Unsigned8
Battery 1 temperature [1 °C]
Battery 1: Battery temperature
Integer8
Battery 2 temperature [1 °C]
Battery 2: Battery temperature
Integer8
Battery 3 temperature [1 °C]
Battery 3: Battery temperature
Integer8
Battery 4 temperature [1 °C]
Battery 4: Battery temperature
Integer8
Battery 5 temperature [1 °C]
Battery 5: Battery temperature
Integer8
Battery 6 temperature [1 °C]
Battery 6: Battery temperature
Integer8
Device temperature [1 °C]
Temperature in the housing
Integer8

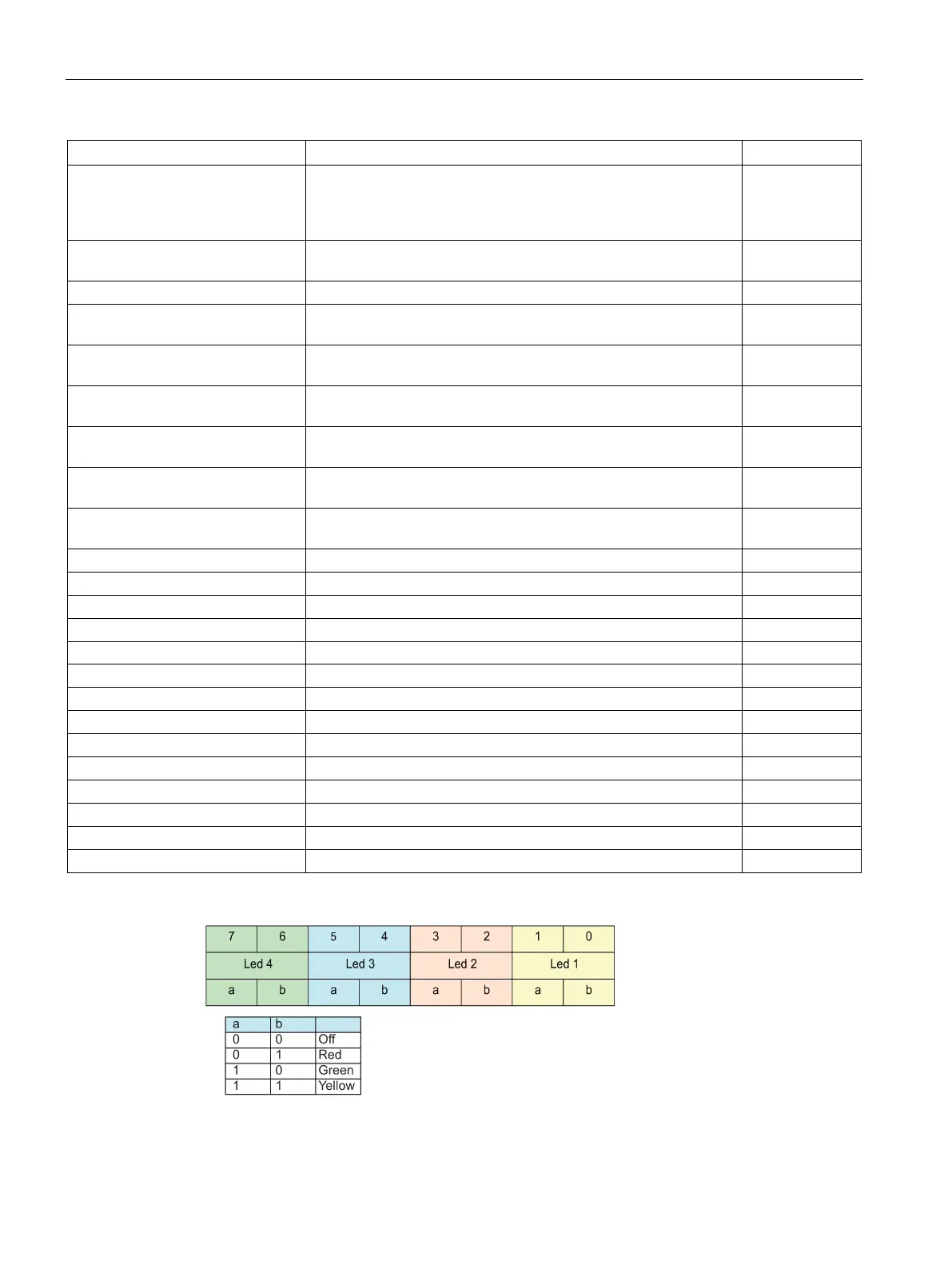

LED pattern
Status of LEDs 1 to 4 for the SITOP UPS1600
1)
Unsigned8
1)
Object structure LED pattern
