Engineering and remote access
3.6 SITOP UPS Manager
SITOP UPS1600 / UPS1100
Manual, 04.2017, A5E37775406-8-76
129

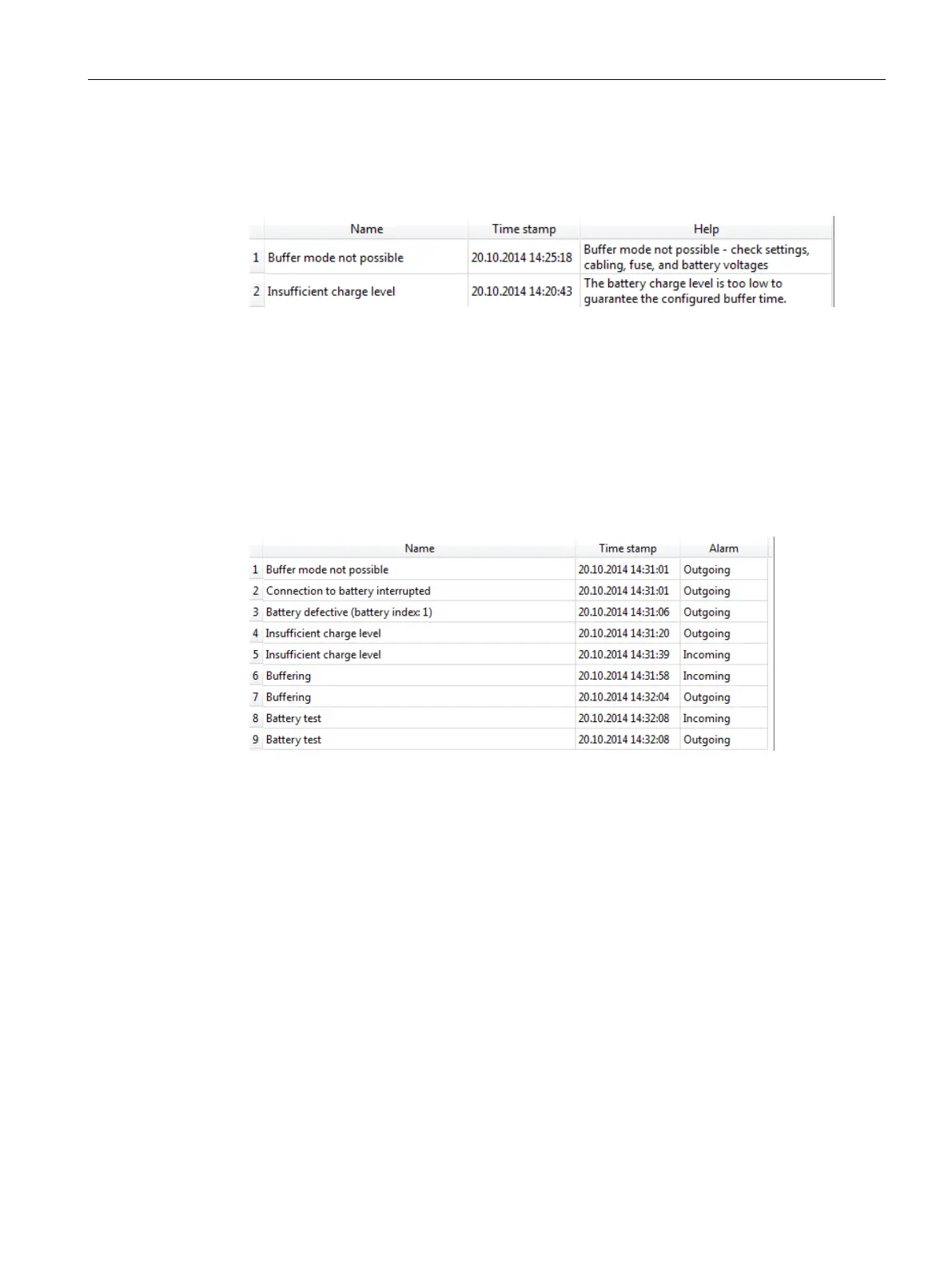

Displaying pending alarms
1. Select "Display > Pending alarms".
The pending alarms are displayed in a tabular form.
The individual columns contain the following information:
● Name: A descriptive name of the alarm
● Time: The time and date of the alarm arrival
● Help: Description of the alarm
Displaying the alarm history
1. Select "Display > Alarm history".
The alarm history is displayed in a tabular form.
The individual columns contain the following information:
● Name: A descriptive name of the alarm
● Time: The time and date when the alarm comes and goes
● Alarm:
– incoming: Occurrence of the alarm event
– outgoing: Rectification of the alarm event
Data and parameters SITOP UPS1600
1. Select "Display > Operating data".
2. Under "Base Unit" you can find data and parameters of the SITOP UPS1600.
The following data are displayed:
● Order number
● Serial number
