Engineering and remote access
3.8 OPC UA server
SITOP UPS1600 / UPS1100
Manual, 04.2017, A5E37775406-8-76
161

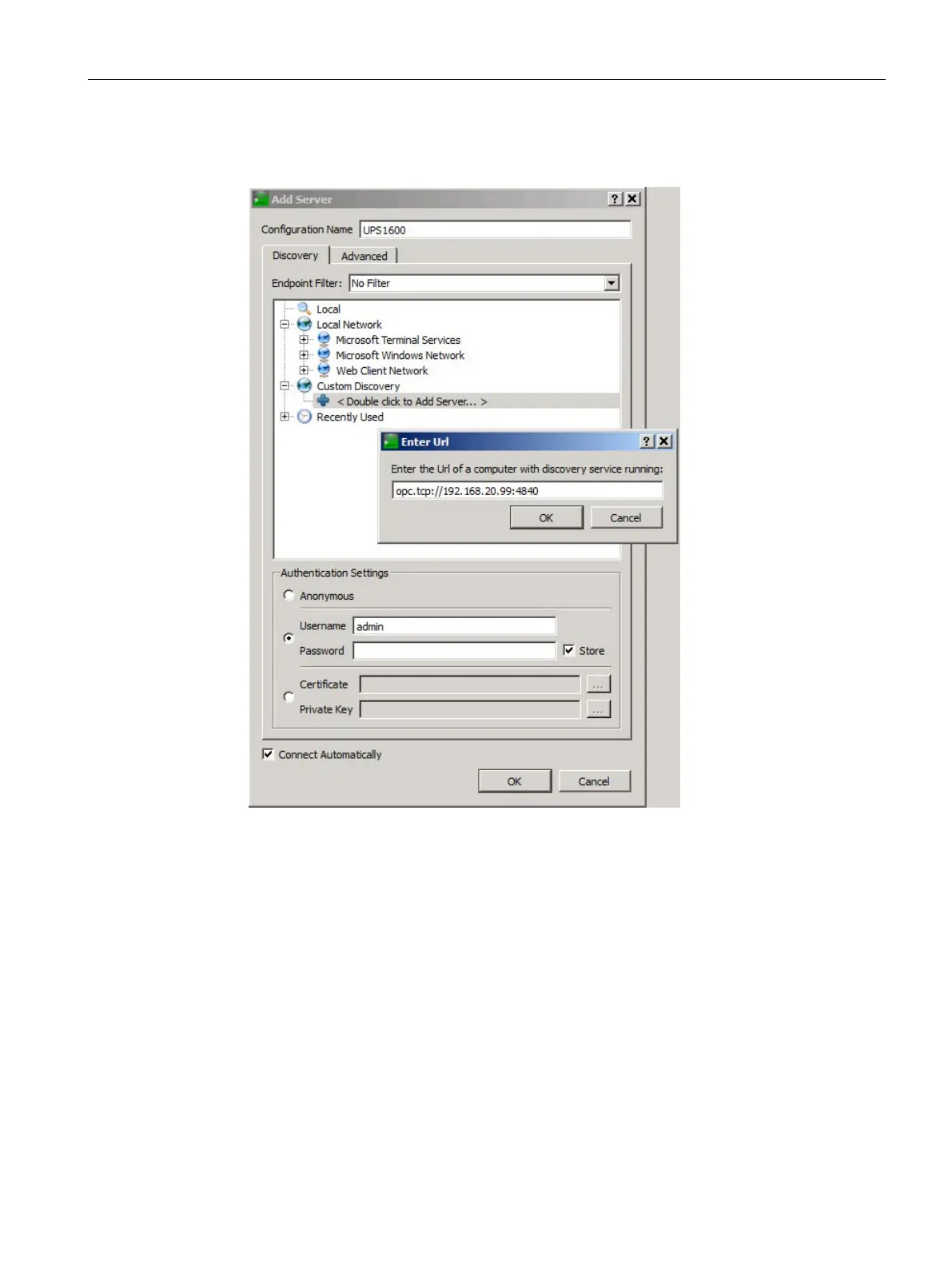

4. In dialog "Enter Url", enter the protocol being used, the IP address of the
SITOP UPS1600 and the number of ports.
The preset port number for OPC UA is 4840.
Another port number can be set using the web server, PROFINET or OPC UA.
5. In dialog "Add Server" in area "Authentication Settings", enter the logon information for
the SITOP UPS1600.
6. Click on the newly created server link "opc.tcp:\\…".
